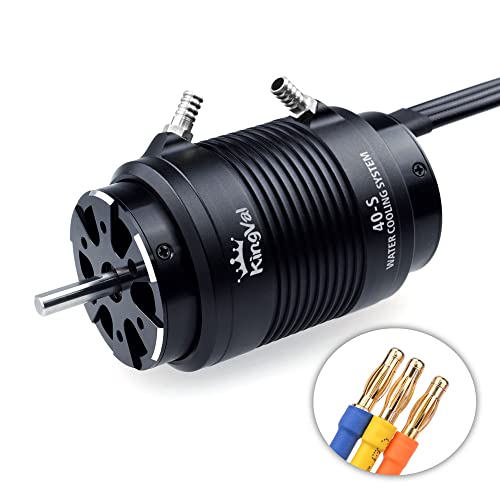

KingVal 4074 1700KV Brushless Motor with Water Cooling Jacket Unit
KingVal 4074 1700KV Brushless Motor with Water Cooling Jacket Unit will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Description
Description
KingVal 4074 1700KV Brushless Motor with Water Cooling Jacket Unit
Features:
*4 Pole 12 Slot Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Precision balanced rotor,smoothness for best reliability and maximum RPM
*Stator - Super Thin (0.2mm) Laminations
*Removable/Replaceable Rotor
*Precision Engineered for Maximum Energy Conversion
Specifications:
Brand: KingVal
Product: 4074 Brushless Motor
KV(RPM/Volt): 1700
Max Amps: 80A
Max Voltage: 35V
Watt: 2800W
Motor Size: ø40x74mm
Winding Type: WYE
Number of Turns:2.75Y
No load current: 2.2A
Max RPM: 60000
Shaft Diameter: 5mm
Rotor Poles: 4
Connector: 4.0mm connector
N.W: 346g
Water Cooling Jacket Unit:
Model: 40-S
Size: ø48x56mm
N.W: 41g
Package List:
1 x 4074 Brushless Motor
1 x Water Cooling Jacket Unit
KingVal 4074 1700KV Brushless Motor with Water Cooling Jacket Unit
