SV -1Sin7cc Gagsoline Slingle Cylinder Side Exhaust 2-Stroke Petrol Engine

Description

A very low-cost option for gasoline power for 60-size nitro airplanes. This engine is compact enough to fit into 60-size scale cowlings without much trouble. Please note the 42oz weight of the engine when considering it for your airplane.

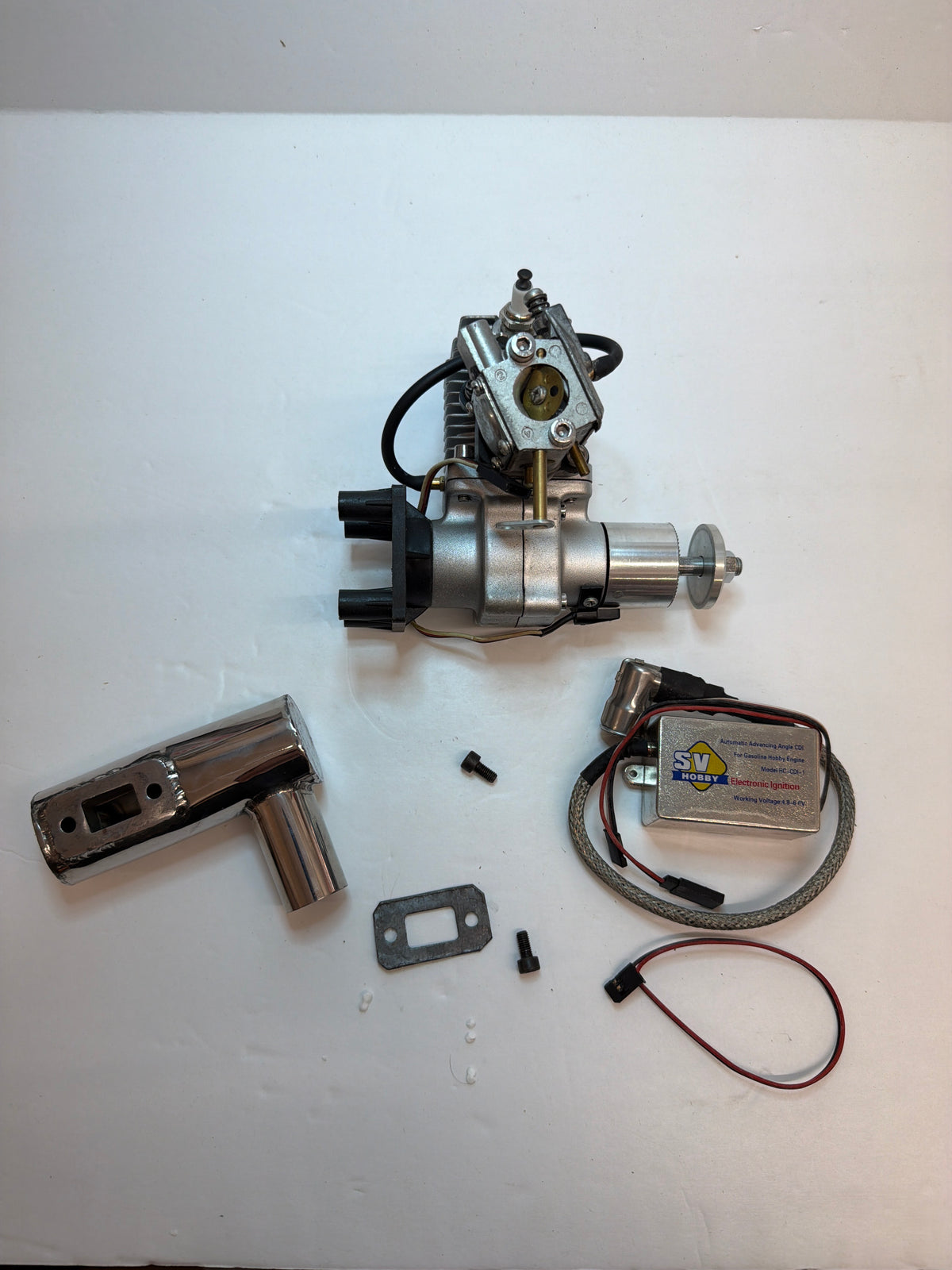

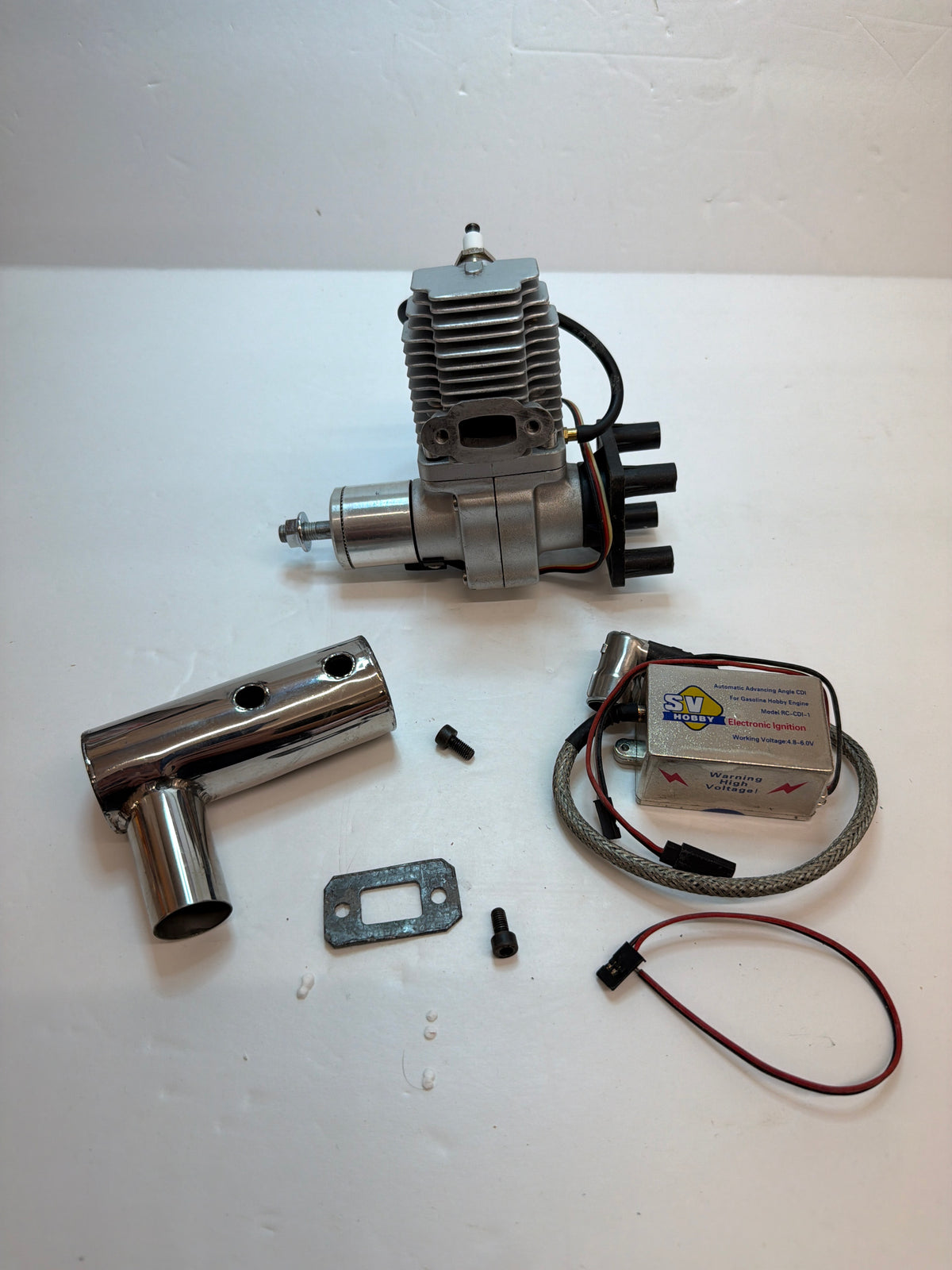

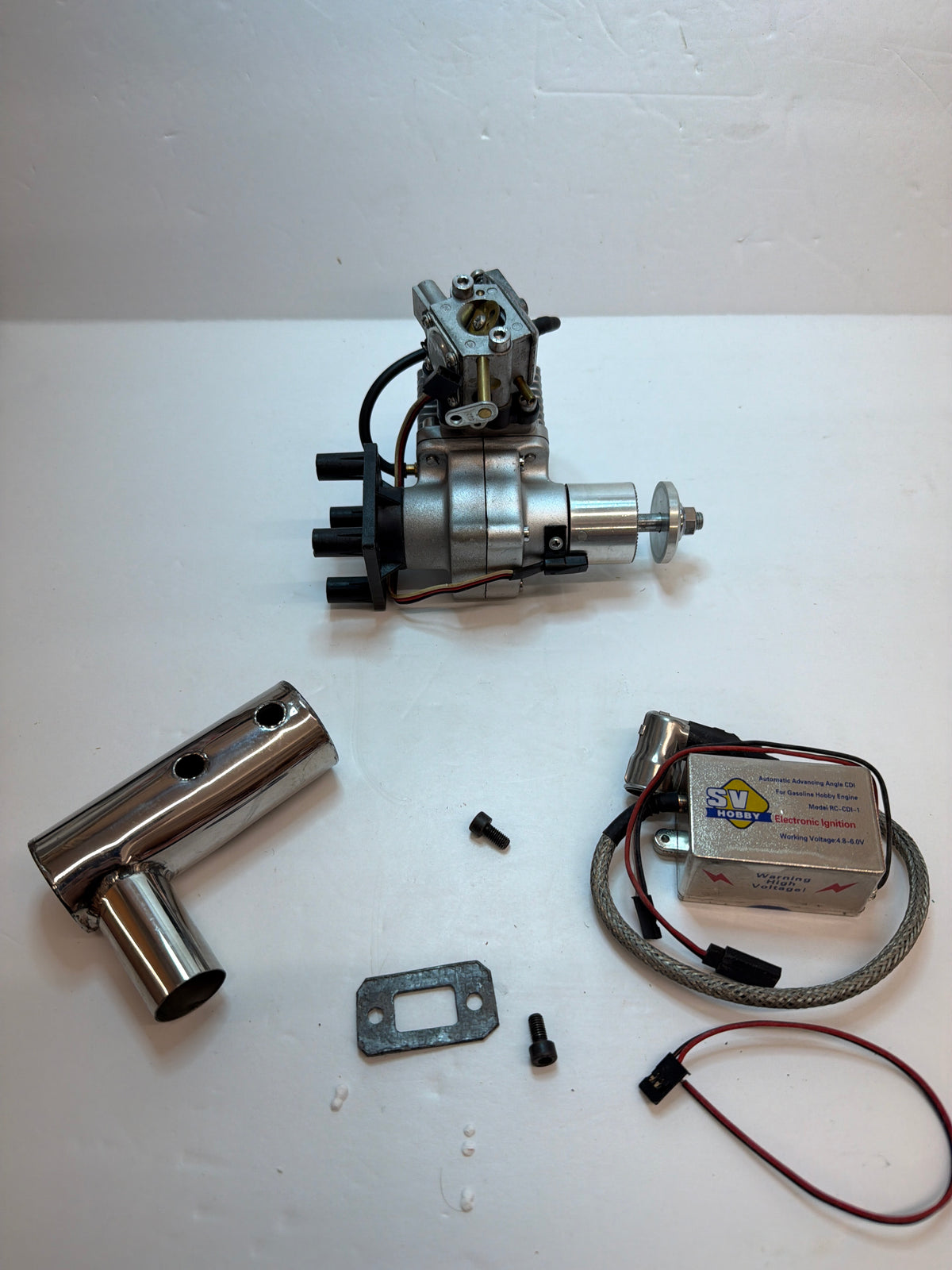

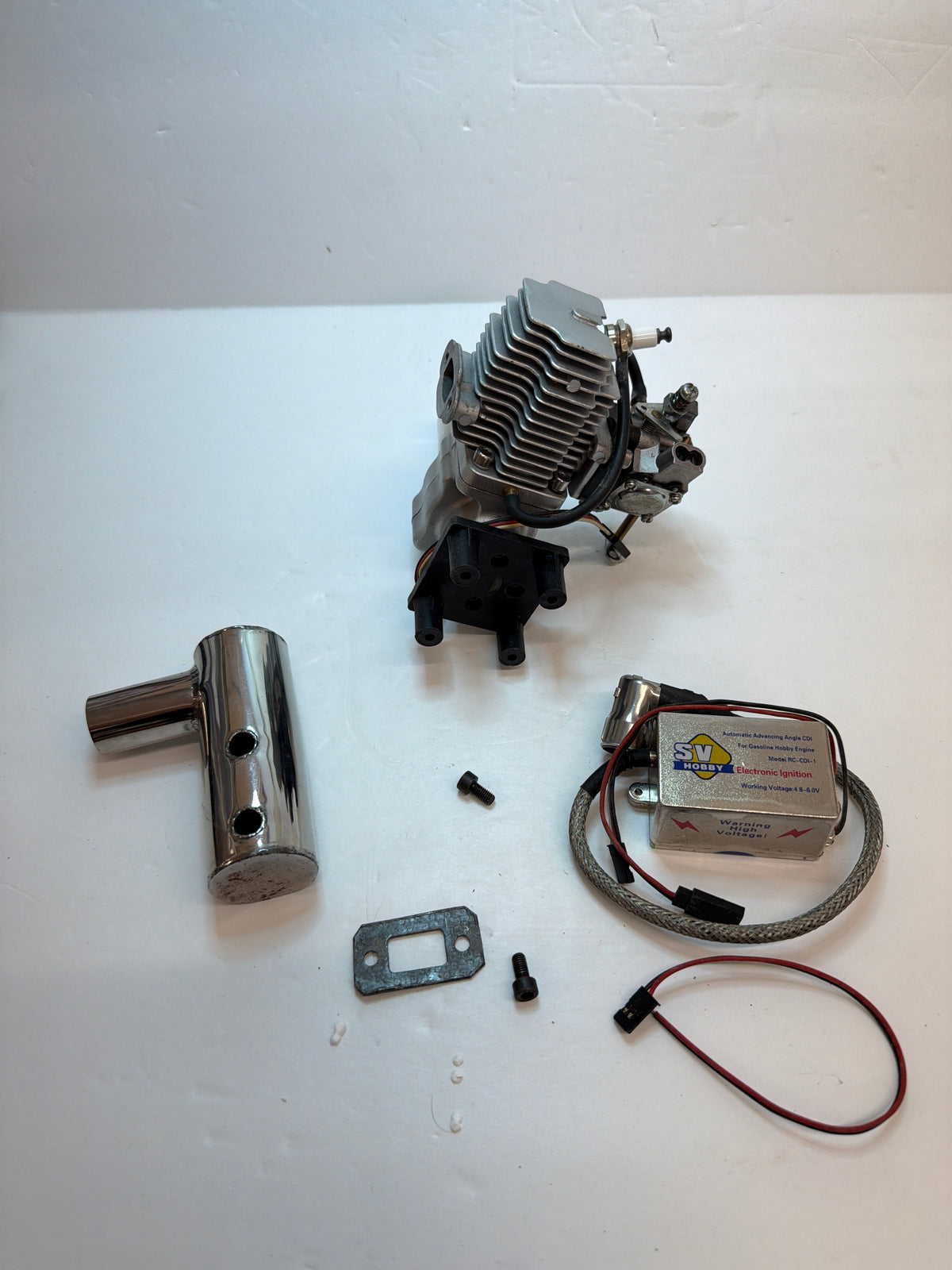

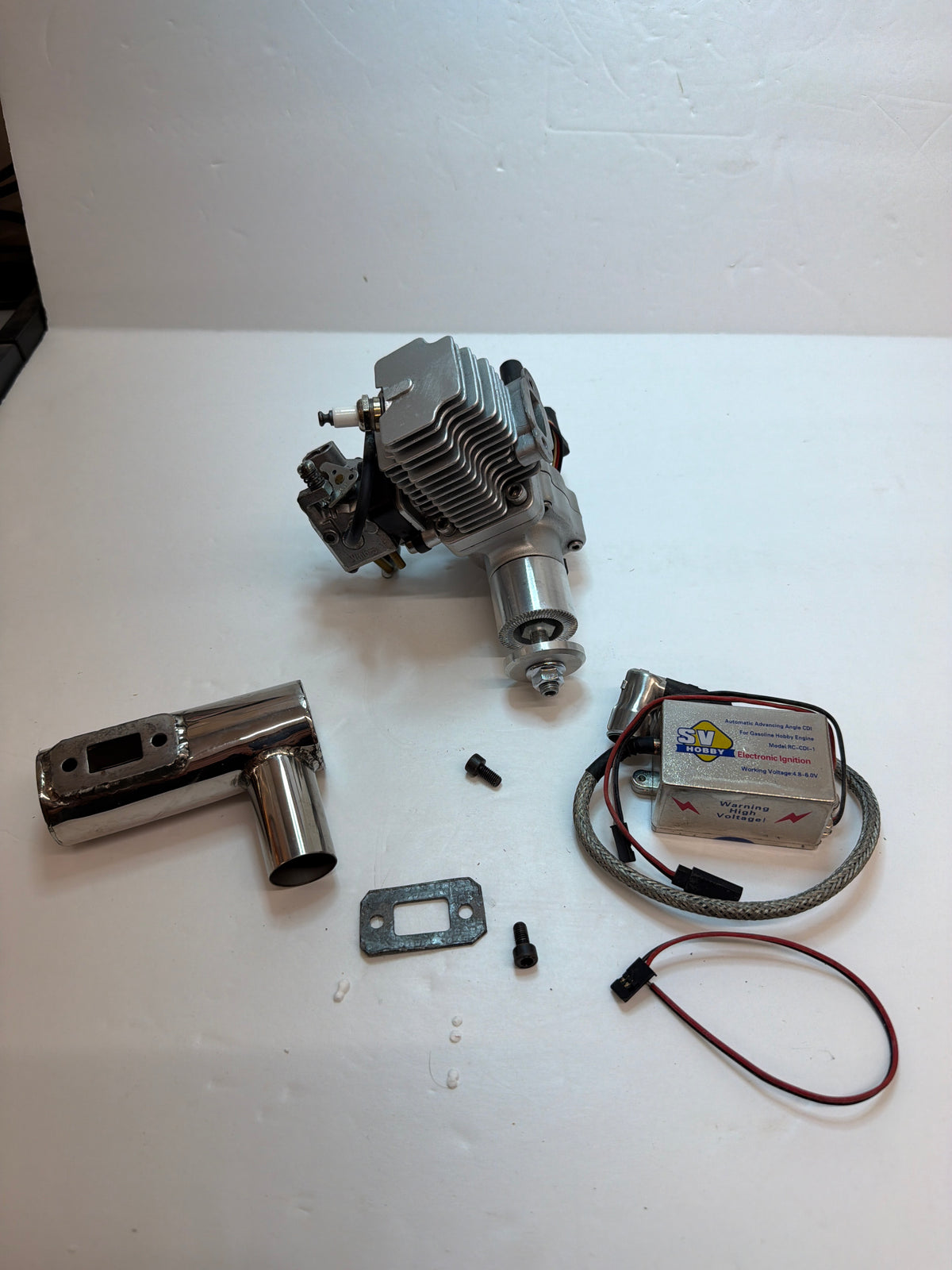

Electronic ignition, muffler and standoffs are included with the engine.

Specifications:

* Displacement: 17.24cc
* Weight: 42 oz/1.157 kg (Including engine mount, muffler and CDI)
* Carburettor: Diaphragm butterfly valve type with pump and choke
* Maximum Output: 1.2 hps (8200rpm with 15x6 APC prop)
* Speed range: 1900/9000rpm
* Ignition: Auto-advaance DC-CDI, 4.8-6.0V DC
* Gasoline/oil mixture: 32:1

Dimensions:

* Length is measured along crankshaft axis.
* Height is measured along direction of piston stroke.
* Width is measured along the third normal direction (direction of exhaust port).
* Length of cylinder head = 2.13"
* Width of cylinder head = 2.15"
* Height of cylinder head = 2.70"
* Width of engine without carburettor or muffler = 2.65"
* Height of engine (bottom of crankcase to top of head) = 4.85"
* Length of engine from prop drive surface (backplate) to firewall = 5.15"
* Length of prop drive hub = 1.05"
* Length of crankcase = 1.40"
* Length of stand-off engine mount = 2.70"
* Width of stand-off engine mount = 2.65"
* Width of carburettor (far surface) from crankshaft axis = 2.90"
* Width of muffler (far surface) from crankshaft axis = 3.00"
* Width of muffler outlet piece (small tube jutting out) = 1.30"

CDI electronic ignition and fitted with a Walbro carburetor. Engine type: single cylinder 2 stroke air cooled Bore and stoke 28mm x 28mm Piston displacement 17.24 cc max Hp 1.01Hp at 8500 rpm Rotate speed 2000 to 10000 4.8 to 6.0 Volt CDI ignition Anticlockwise push prop start Leaf Prop 12x6 13x6 14x6 Net weight complete is 945 grams
