SRT | SKU:
SRTBH9022
Sold out

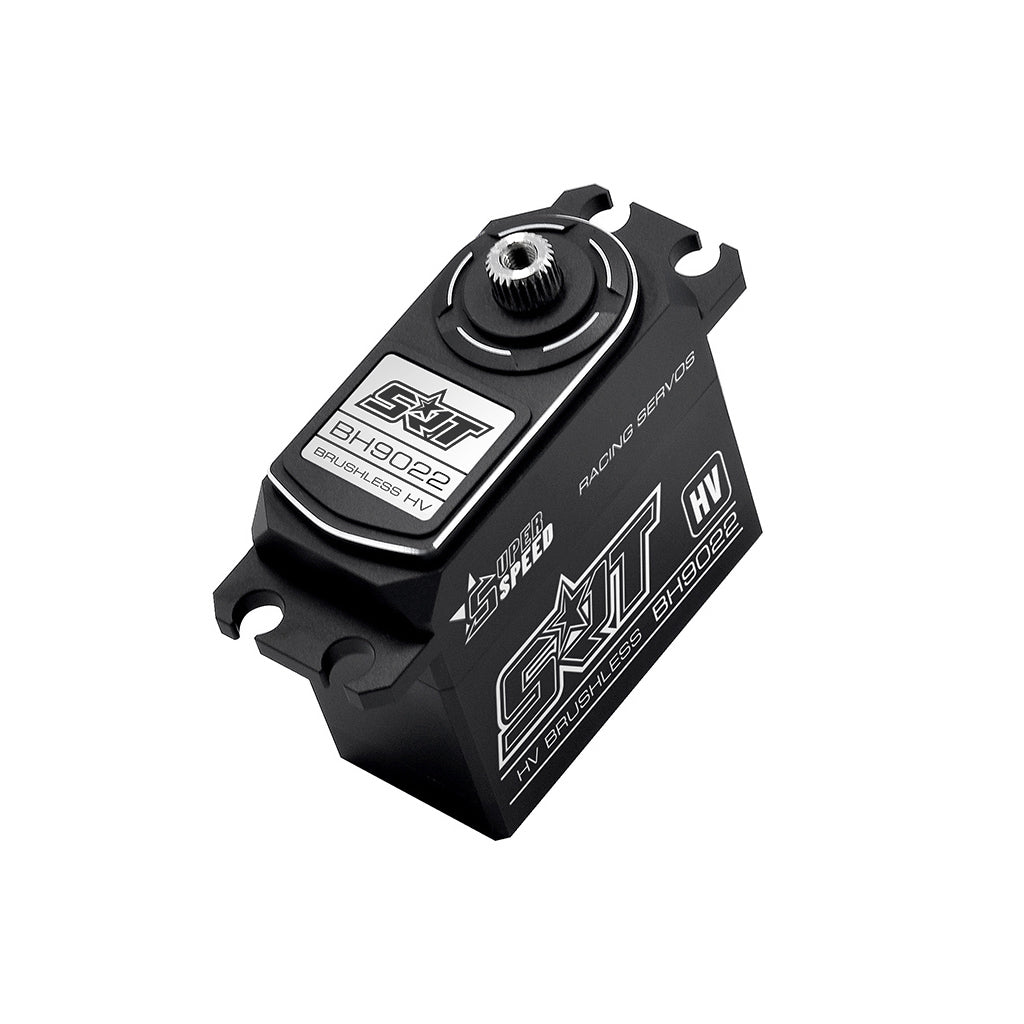

SRT 9022 HV Brushless Servo
£101.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
SRT 9022 HV Brushless Servo will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
KEY FEATURES
- Superior Holding Speed
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 μsec Dead Band
- 1-Year Limited Warranty
Application :
1/10 2WD Electric Buggy
1/10 4WD Electric Buggy
1/8 Nitro GP>
1/8 Electric GP
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 79.0g (2.79 oz)
connector wire length: jr 300 mm
- Superior Holding Speed
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 μsec Dead Band
- 1-Year Limited Warranty
Application :
1/10 2WD Electric Buggy
1/10 4WD Electric Buggy
1/8 Nitro GP>
1/8 Electric GP
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 79.0g (2.79 oz)
connector wire length: jr 300 mm
