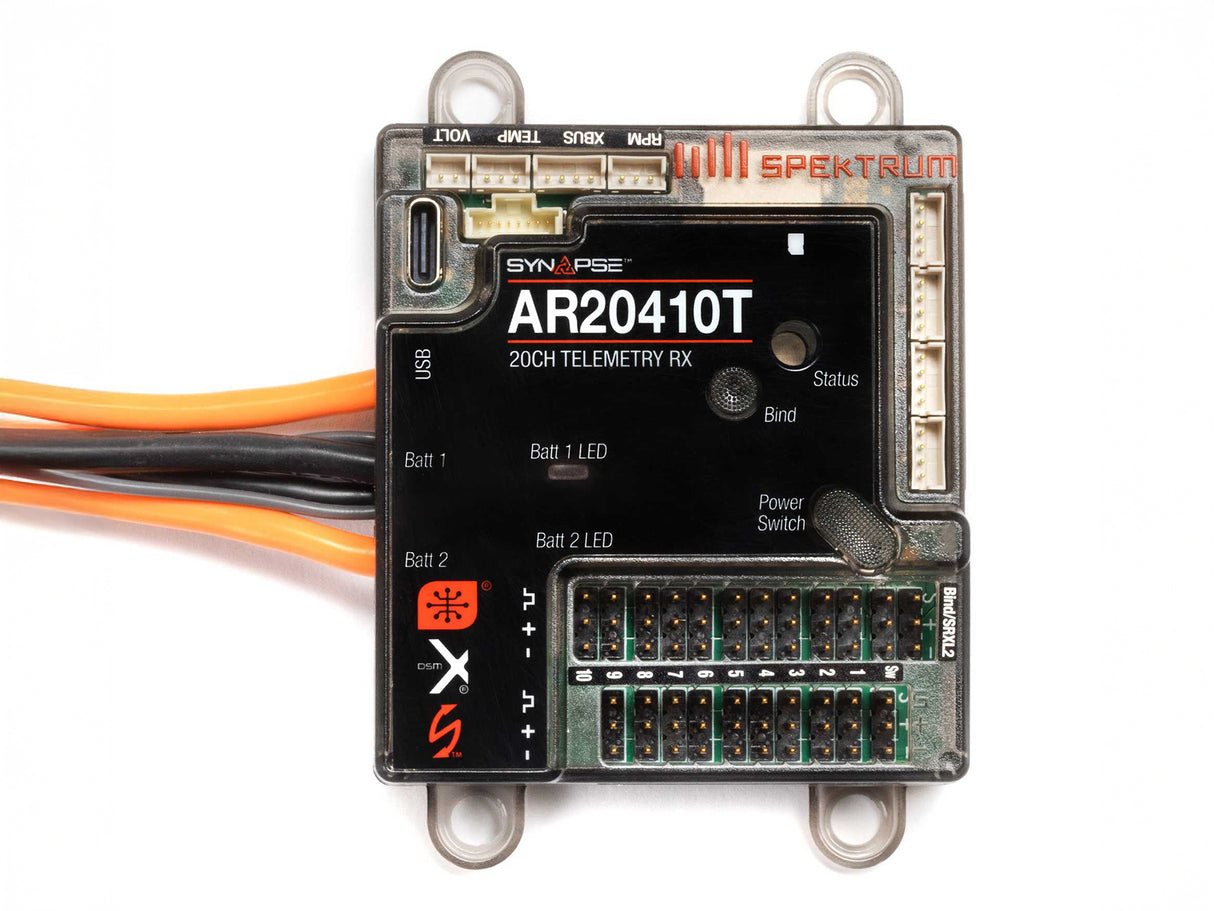

Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver - FOR PRE ORDER - EXPECTED EARLY MARCH
Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver - FOR PRE ORDER - EXPECTED EARLY MARCH will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Description
Description
Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver Overview
The Spektrum™ AR20410T PowerSafe™ receiver is a feature-packed 20-channel receiver with full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current, such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual 13AWG battery input leads with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.Now, with innovative features like fast boot recovery, regenerative servo support, remote sleep mode, and compatibility with the all-new Synapse AS3X+ / SAFE module.
If you have a DSMX⌐/DSM2⌐ transmitter capable of 11ms frame rates, the AR20410T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft. As an added measure of safety, the Spektrum designed the AR20410T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.
A ground-breaking feature on the AR20410T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.
Paired with the new Spektrum AR20410T PowerSafe receiver, it is an incredible combo of advanced stabilization and cutting-edge electronics.
Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver Features
- Compatible with the Synapse AS3X+ / SAFE Flight Stabilization Module (SPMAS6000, available separately)
- Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
- Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
- Fast boot recovery technology allows the gyro system to be rebooted in flight upon any electrostatic discharge or power interruption, providing pilot control within milliseconds using a saved stabilization calibration
- Regenerative servo support for any number of servos
- Forward programming for easy adjustments to failsafe settings, servo frame rate settings, AS3X+ settings, and more
- USB-C port for easy product registration and firmware updates
- 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
- Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
- Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
- Integrated status LED provides helpful information during start-up, including warnings and mode indicators
- SRXL2 connectivity for easy, one-wire connection to supported devices
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- Receiver pack energy, voltage sensor, and flight log telemetry data available without the need for additional sensors
- Temperature, imbalance, cycles, and cell voltage telemetry data available when using Smart batteries
- When using an SPM4651T remote receiver, there is full-range telemetry with an integrated barometer providing altitude and vario telemetry without additional modules
- Included Momentary Pushbutton allows booting or shutting down the system. However, shutting down the system requires a specific press-and-hold pattern to prevent accidental shutdowns in case the button fails or disconnects. The switch itself must not be substituted. Additionally, there is a power switch on the receiver itself that can be used instead
- Rubber grommet hard mounts and minimalistic labeling help produce the cleanest model setups
- Capable of high-speed 11ms frame rates. It can be boosted to 5.5ms, if the servo supports it, for improved stabilization when using Synapse
- Binding is easier than ever, with four options to initiate the bind process
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors, and X-bus for telemetry sensor expansion
- Compatible with all Spektrum DSMX transmitters
- Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)
NEXT GENERATION IN FLIGHT STABILIZATION
The AR20410T is compatible with the Synapse AS3X+/SAFE Stabilization Module (not included), providing enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.
Key AS3X+ improvements include:
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gryo filtering
- Canard and Thrust Vectoring Support
PATENTED POWERSAFE™ REDUNDANCY SYSTEM
The Spektrum™ AR20410T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with True dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.
INNOVATIVE BATTERY CAPACITY MONITOR
The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.
SLEEP MODE
The AR20410T receiver features an advanced power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter. This exciting new feature allows you to power up your model's electronic system at the press of a button. No hatch removal or physical switches are needed, and it is extremely convenient for a day at the flying field.
INTEGRATED "BLACK BOX" TELEMETRY LOGGING
When a Micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.
FORWARD PROGRAMMABLE
You can configure the AR20410T receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.
INTEGRATED BAROMETER
The Spektrum AR20410T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.
MICRO USB PORT
A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.
EXPANSIVE TELEMETRY OPTIONS
In addition to the integrated telemetry sensors, the AR20410T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.
