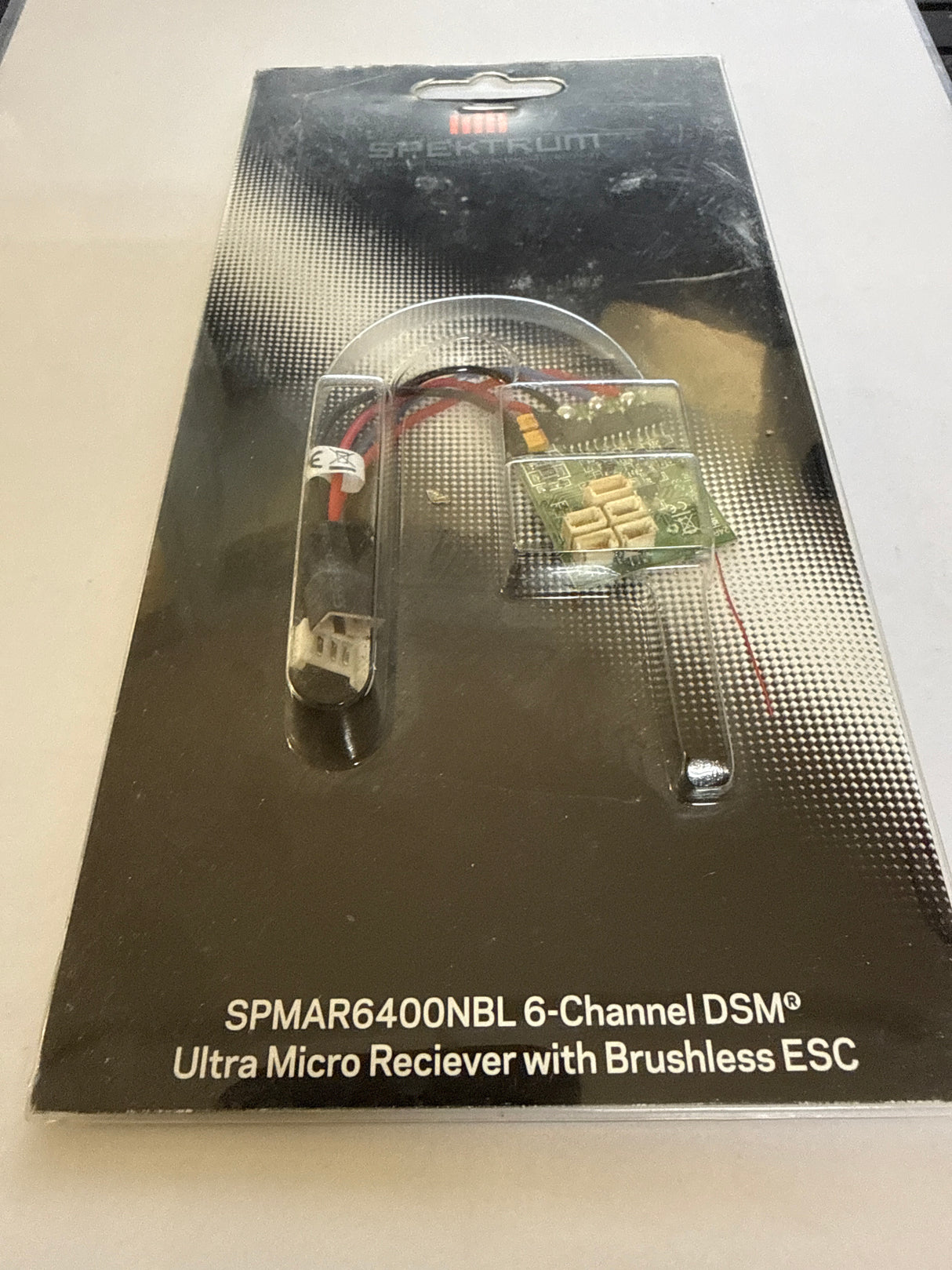

Spektrum 6 Channel DSM Ultra Micro Receiver with Brushless ESC

The Spektrum AR6400NBL is a 6-channel DSM2 ultra-micro receiver featuring an integrated brushless speed control (ESC) and connections for ultra-micro linear servos. It is designed for lightweight indoor foamies, micro airplanes, and scratch-built ultra-micro RC

With the Spektrum AR6400NBL, you can bring the benefits of the advanced AS3X System to your favorite ultra micro flyer. In the past, to get more agility or stability, a pilot had to trade a little of one for more of the other. The AS3X System changes all that with revolutionary technology that expands both agility and stability at the same time. The result is an ultra micro that will eagerly execute your commands while precisely maintaining whatever attitude you leave it in. Even in breezy conditions with light turbulence, you'll feel like you're flying a finely tuned, large-scale airplane.

The AR6400NBL combines this incredible technology with a 6-channel DSMX receiver, a 5A brushless speed control and four ultra micro servo connectors onto a single board. You just download the AS3X settings that best match the type of aircraft you want to fly and upload them to the AS6410NBL using the required interface (SPMA3060, sold separately). You can even try out the settings used in existing AS3X ultra micros.

Note: Not compatible with the Spektrum DX6 park flyer transmitter.

Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or Spektrum.

Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.

This product is not intended for use by children under 14 years of age without direct adult supervision.

Key Features

• Micro receiver with 5-amp brushless speed control and AS3X® technology
• Perfect for scratch buildings
• Matched to Spektrum™ linear servos to maximize performance and minimize weight

Product Specifications

• Type: Ultra Micro AS3X receiver with integrated brushless speed controller
• # of Channels: 6
• Modulation: DSM2/DSMX
• Band: 2.4GHz
• Length: 1.38 in (35mm)
• Width: 1.00 in (25mm)
• Height: 0.32 in (8mm)
• Weight: 0.2 oz (6.4 g)
• Voltage Range: 6.4V - 8.4V (2-cell LiPo)
• Antenna Length: 31mm
