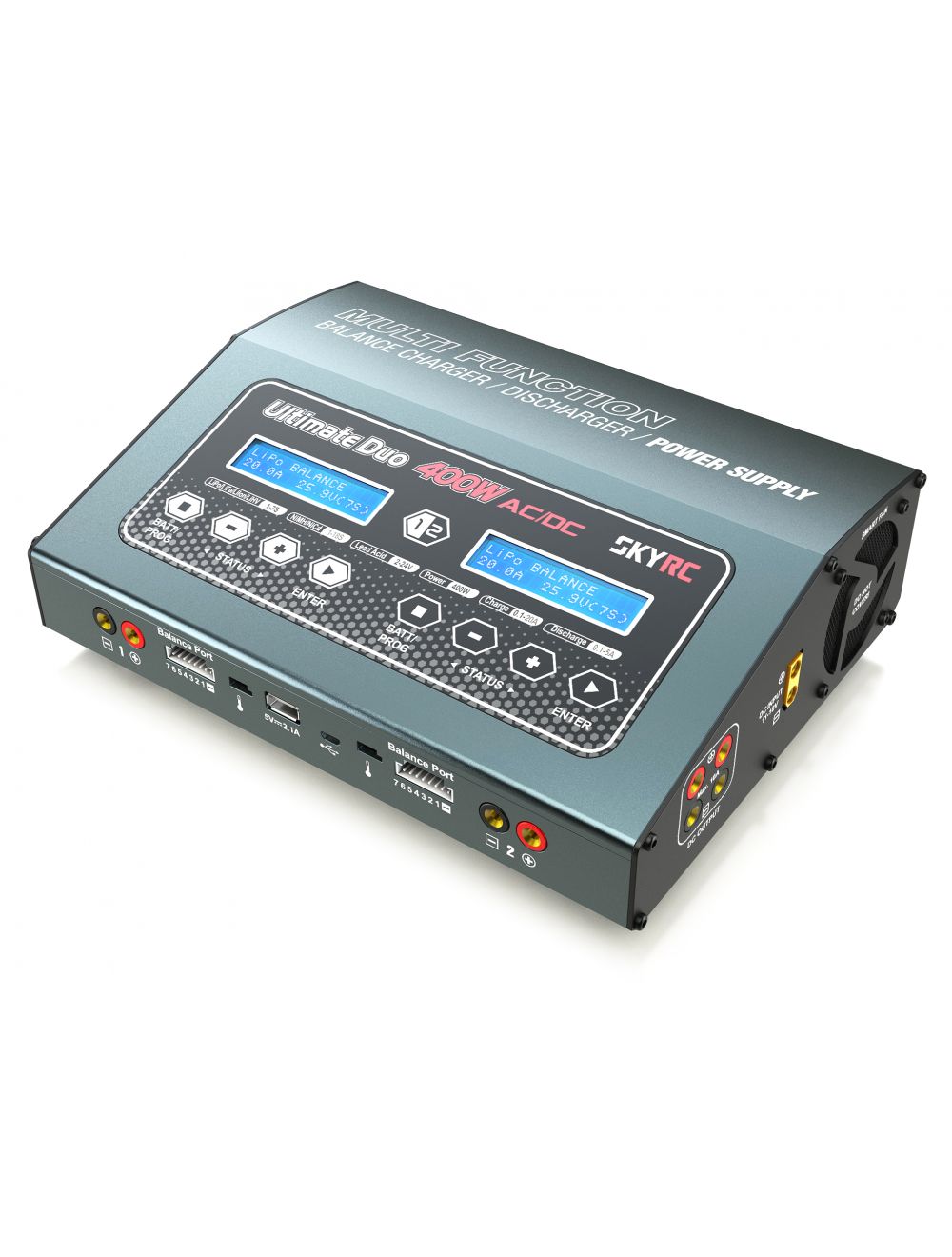

SKYRC D400 400watt 20A output AC/DC Charger

The SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC/DC mode to get the maximum charging power to shorten charging time. The D400 can also supply 150W on DC which users can use it to power DC devices. It converts standard 100-240V AC mains to 6-15V DC output.

A synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits.

The SKYRC D400's Charge Master PC software allows for easier monitoring and use. The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware.




SPECIFICATIONS
Input Voltage AC 100-240V DC 11-18V
Charge Circuit Power 400W (2 x 200W)
Discharge Circuit Power 36W
Charger Current Range 0.1-20A
Discharge Circuit Range 0.1-5A
Current Drain for Balancing Port Max 500mA/cell
Trickle Charging Current 50mA-300mA & OFF

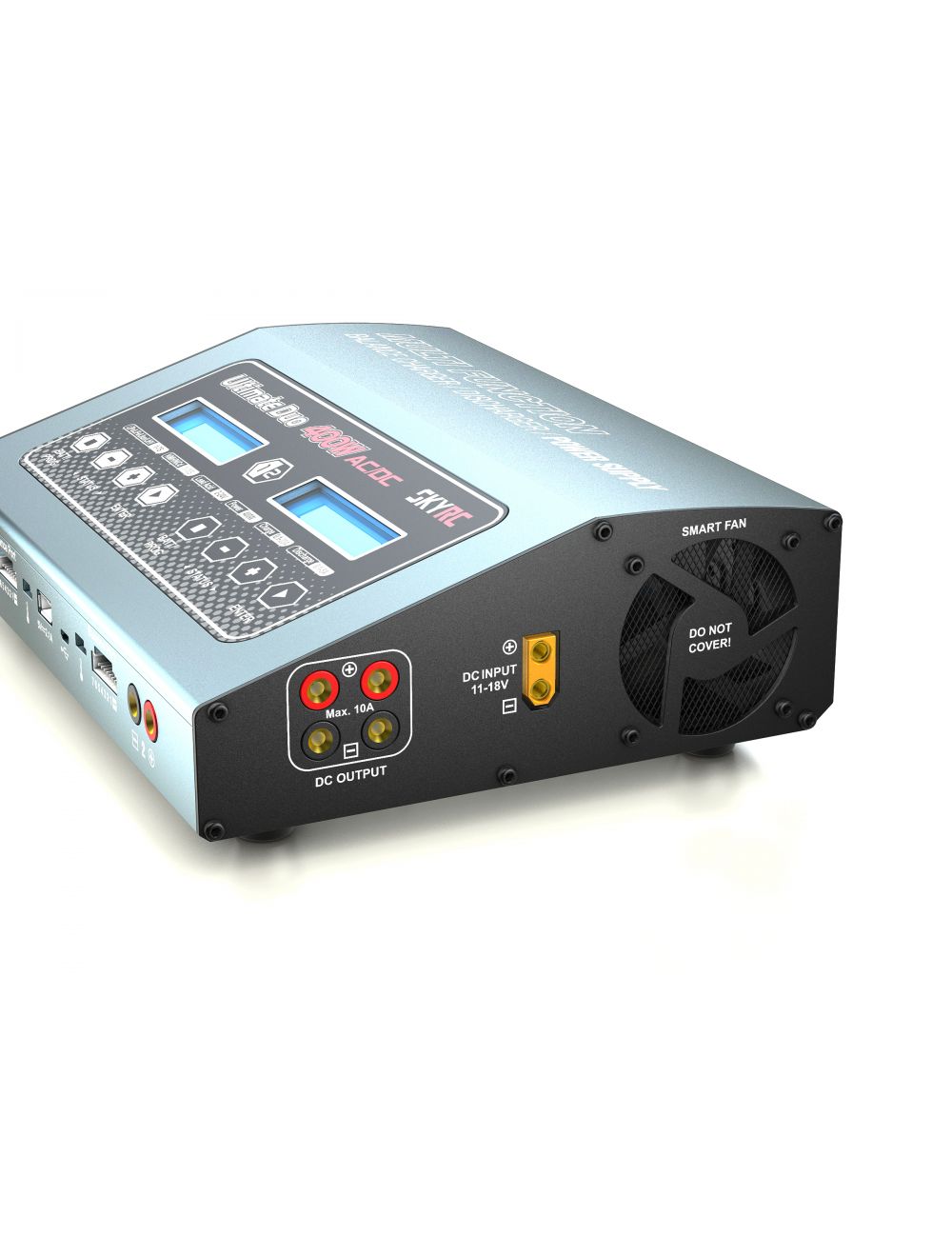

DC Power Supply Output 6-15V / Max. 10A
LiPo/LiFe/LiIon/LiHV Battery Cell Count 1-7S
NiMH/NiCd Battery Cell Count 1-18S
Dimensions 258 x 194 x 83mm
Net Weight 2510g

SKU 3202<br />Barcode 6930460003898<br />Input AC / DC<br />Charge Power 400W (2x 200W)<br />Discharge Power 36W<br />Charge Current 0.1 - 20A<br />Discharge Current 0.1 - 5A<br />Brand Sky RC<br />Compatible Chemistries NiMH / NiCd / LiPo / LiFe / LiIon / LiHV<br />Lithium Cell Count 1 - 7S<br />NiMH / NiCd Cell Count 1 - 18S
