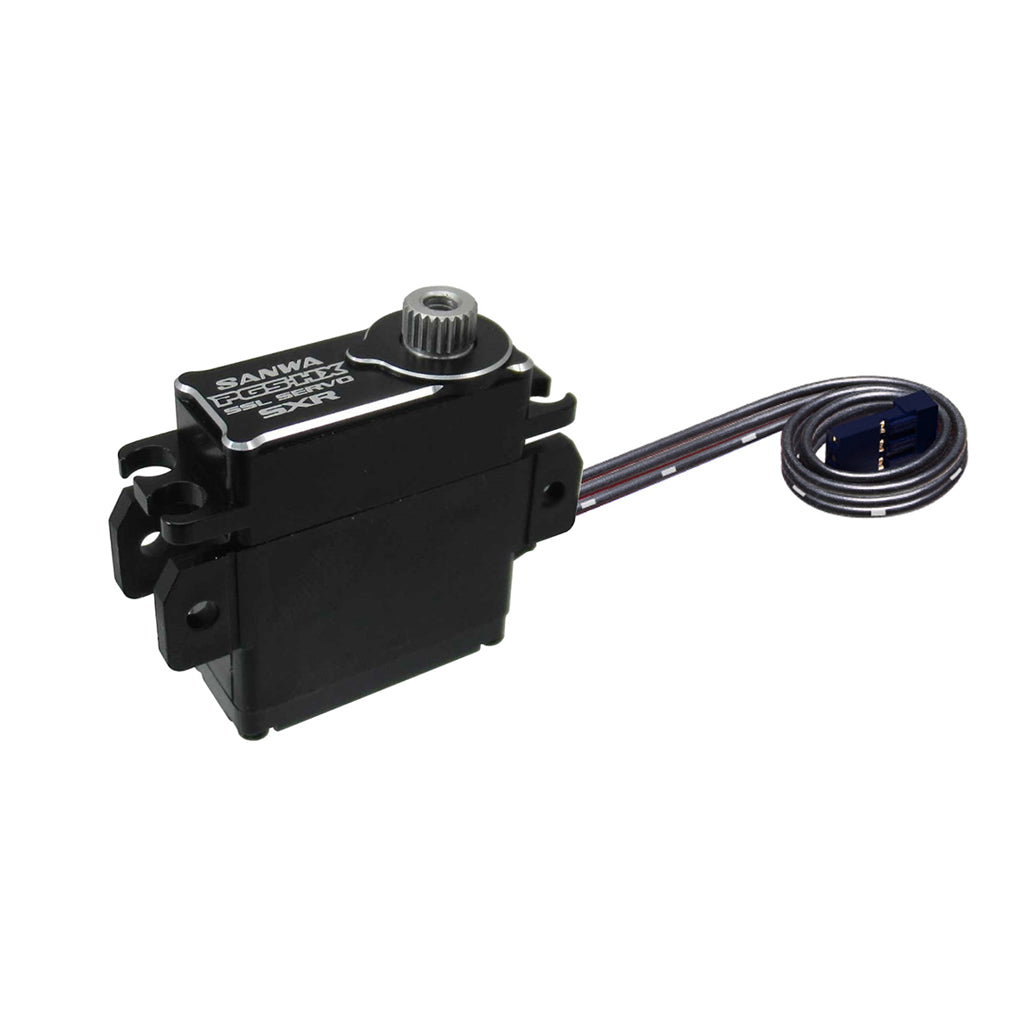

Sanwa PGS-HX Servo

From Sanwa their SXR/SSL compatible 1/12 servo with improved operating accuracy and case rigidity based on the PGS-HR programmable servo with an upper case made from machined aluminum. 　

*Compatible with CODE10 (M17, MT-5, MT-R, M12S(RS), EXZES ZZ, MT-44) Not compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

●MULTI SETTING GEAR compatible ●New control system achieves 10 times the operating response compared to SRG-HR/HS ●In addition to the factory setting data (USER), it is now possible to select from three types of preset data, making it easier to adjust servo settings (compatible with MULTI SETTING GEAR) 　*The settings of the three types of preset data types 1 to 3 cannot be changed. ●Compatible with Extreme Response (SXR) mode ●Compatible with Ultra Response (SUR) mode ●Compatible with Super Response (SSR) mode ●Compatible with High Response (SHR) mode ●Designed specifically for 1/12 racing ●Full metal gear specification (reinforced type)

Features
- For 1/12 Scale
- Voltage: 3.7 - 6.0 V
- Dimensions: 27.0 x 12.1 x 30.5 mm
- Weight: 23 g
- Speed: 0.10 sec/60° (6.0V)
- 0.16 sec/60° (3.7V)
- Torque: 5.8 kg • cm (6.0V)
- 3.8 kg • cm s(3.7V)
