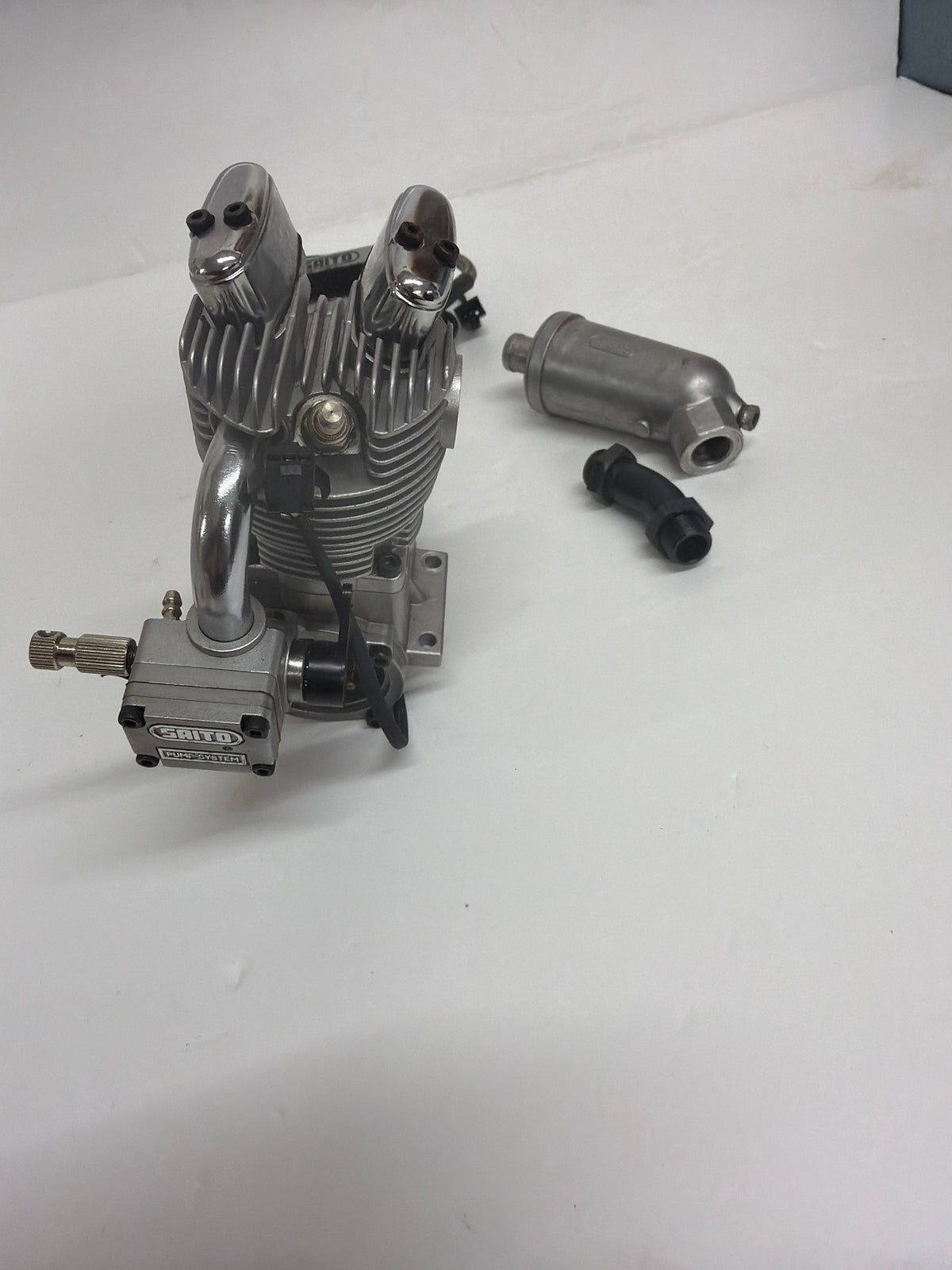

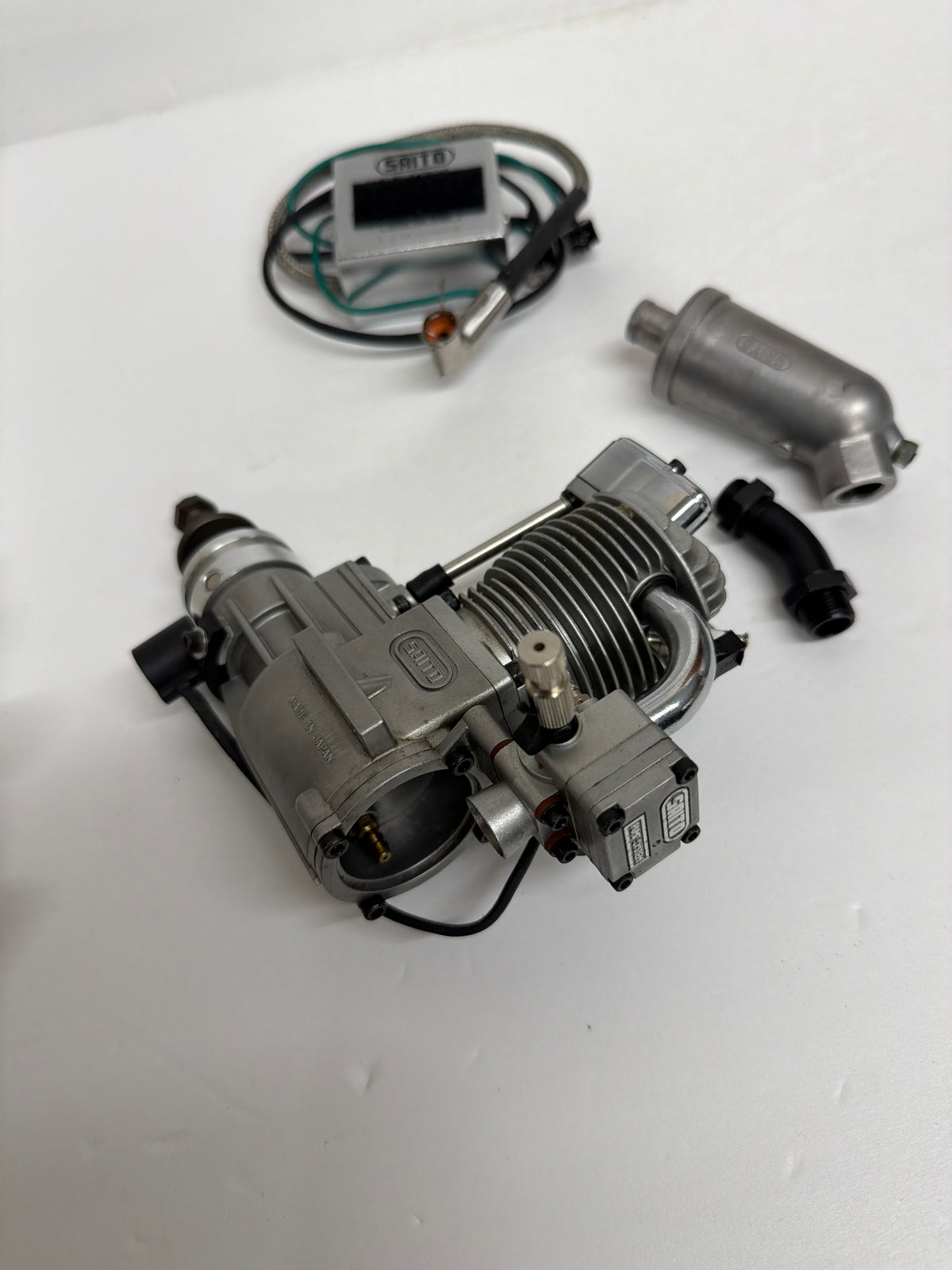

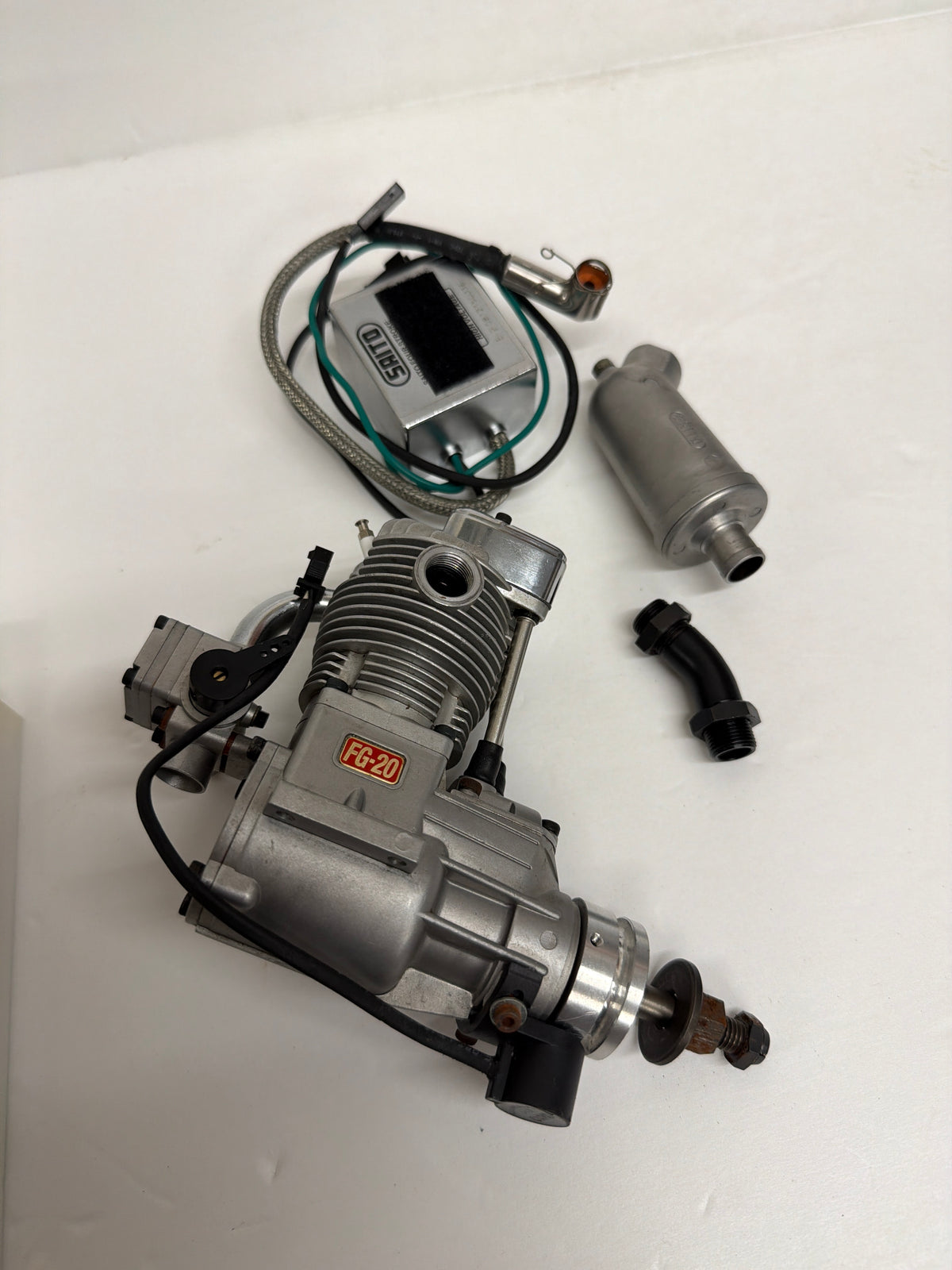

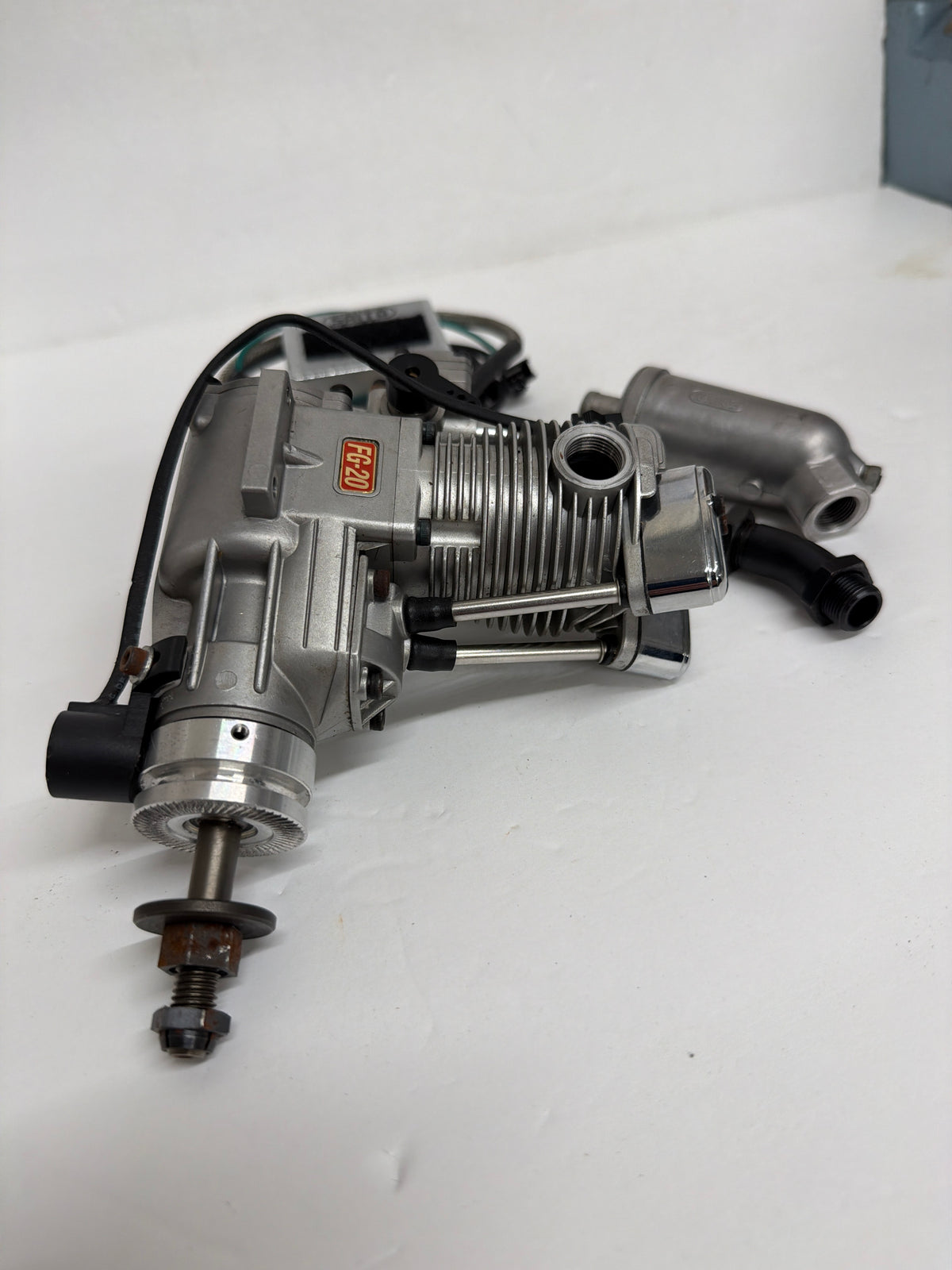

Saito FG-20 Petrol Engine Second Hand

4-stroke

1.25 cu in (20.52 cc)

1.24 in (31.7 mm)

1.02 in (26.0 mm)

Single AAC (Aluminum Alloy with Chrome plating)

21.87 oz (620 g)

30.1 oz (850 g - including muffler and ignition)

1,800–9,500 rpm (with peak output around 8,300–9,000 rpm)

15x7–16x6 (2-blade); 14x9–15x7 (3-blade)

• Pump Carburetor: Features a diaphragm pump that is tolerant of fuel tank position and ensures smooth delivery during aerobatics.
• Operating Cost: Runs on standard petrol-oil mixtures, saving up to 90% in running costs compared to nitro glow fuel
• Type: 4-stroke
  Displacement: 1.25 cu in (20.52cc)
  Bore: 1.24 in (31.7mm)
  Stroke: 1.02 in (26.0mm)
  Cylinders: Single AAC
  Total Weight: 30.1 oz (850 g - with muffler and ignition)
  Engine (Only) Weight: 21.87 oz (620 g)
  Muffler Weight: 2.89 oz (80 g)
  Crankshaft Threads: M8 x 1.25mm
  Prop Range: 15x7–16x6 2-blade; 14x9–15x7 3-blade
  RPM Range: 1,800–9,500 rpm
  Fuel: Gas oil mix of 20:1 (20:1 is recommended for break in and continuous operation)
  Mounting Dimensions: 152 x 60 x 126mm
  Muffler Type: Cast (13mm threads)
  Cylinder Type: AAC
  Starting System: Saito ignition 4.8 - 6V (capacity more than 1,000mAh)
  Carb Type: 2-needle Saito gas carburetor
  Crank Type: Dual ball bearing
