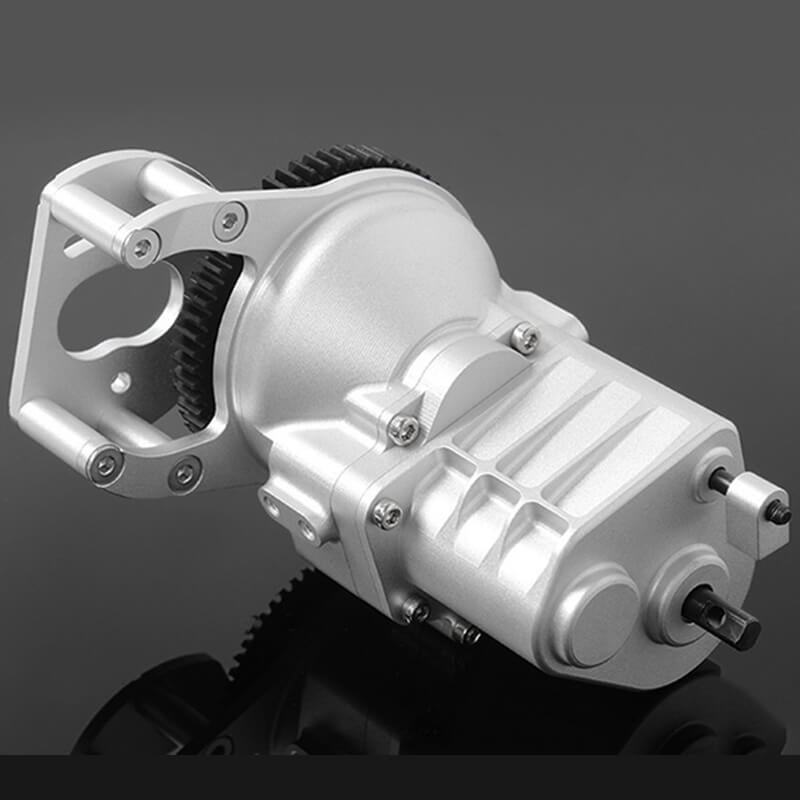

RC4WD R3 SCALE 2 SPEED TRANSMISSION

Features

• CNC Machined Billet Aluminum Case
• Clockable Motor Mounting (10 different positions)
• 2 Speed
• Gear Ratios Pinion / Spur 14/64 = 4.57:1
• 1st gear = 3.47:1
• 2nd gear = 1.27:1
• Wide Steel 32 pitch gears
• Delrin Spur Gear
• Slipper Clutch Design
• Changable Gearing Options
• Compatible With Other Brand Pinions and Spur Gears

Specifications

Output Shaft OD: 0.19" / 5mm
Height: 2.44in / 62mm
Length: 4in / 101.6mm
Width: 2.91in / 74mm
Weight: 9.7oz / 275g

What's Included

• 1 x R3 Scale 2 Speed Transmission
• 1 x 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• 1 x M3 x 3mm Set screw (Z-S0124)

Fits

• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)

Required Parts

• R3 Tranny Mounts For Trail Finder 2 (Z-S0677)
