RBCKITS  |  SKU: RC3QBXWK51  |  Barcode: 3513513513513

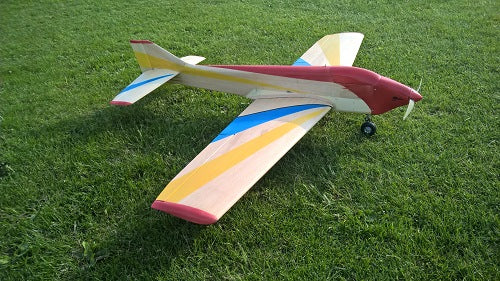

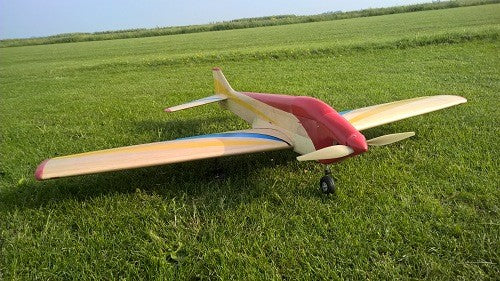

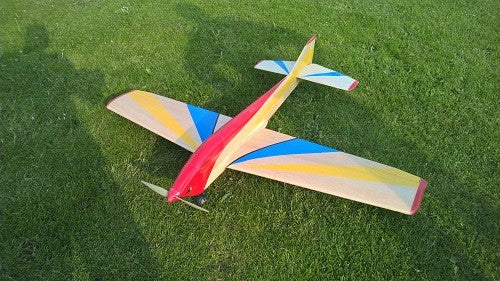

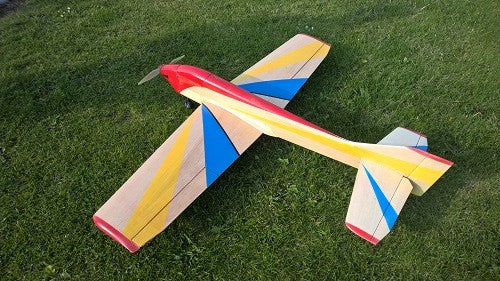

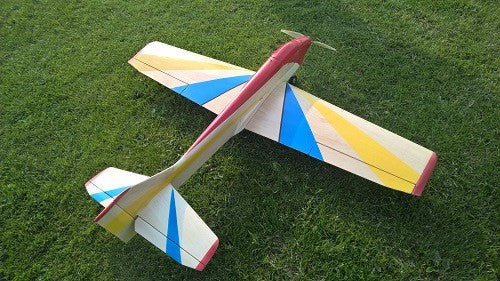

RBC Retro RC3-40 Kit

£176.99
Tax included Shipping calculated at checkout.

Description

40-size acrobatic retro kit.
Great flyer easy and forgiving and exact.
Complete new designed cnc construction.
Build up wing and Stabilizers, vacuum formed cowl
and canopy,
Easy building kit all parts cnc cut ,

The RC34-40 is a great flyer with the Hetrc Xtreme 3826-1000kv motor and 4 lipo cells 3700


Design Features:

All Formers And Ribs CNC Cut

Unique Tab Lock Design

Two Piece Design Easy transportation

Motor/Battery compartment Easy accesable

Battery Access Through canopy opening


Kit Includes:


Full Size Rolled Cad Plans With All Parts Shown

Vacu formed Cowl,Canopy (Grey Smoke) and wingtips

Standard firewall for many motor types,sk3 set available seperately

Control Horns , Steering Cables,Hinges,


Required to Complete: (Not Included with kit)

4 to 6 Channel Transmitter.

Light weight Receiver:

Light weight Servos: About 13grams (2x ailerons ) to 30 grams (elevator and rudder)

Motor: type 35 to 42 1000kv (max prop size 12")

35-75 amp ESC (speed controller)

Adhesive: Epoxy, PVA, Cyno.

Some paint

Covering

Retract set electric or air

Main wheels 50-56mm

Battery: 4S 3200 to 5000 lipo

Charger

Grass or concrete airfield.

The RC3-40 is Easy Flying, as a low wing trainer and very acrobatic

Specifications

Wing Area: 38 dm2<br /><br />Wing Span; 1450 mm<br /><br />Flight Weight: Starts at 2100 grams<br /><br />Wing Loading: 55gr dm2<br /><br />4 Channel Controls<br />
