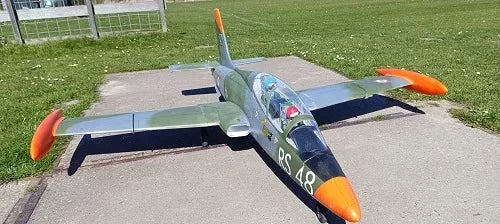

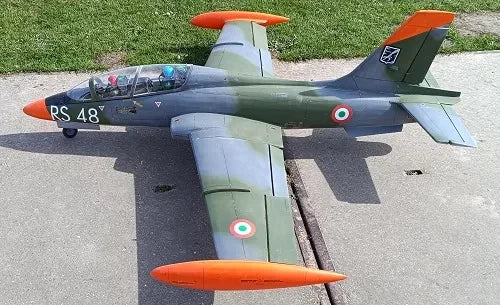

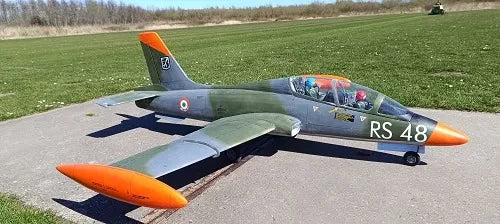

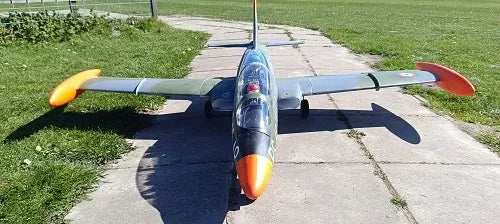

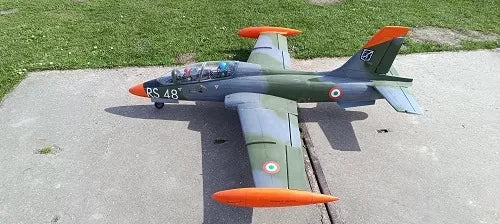

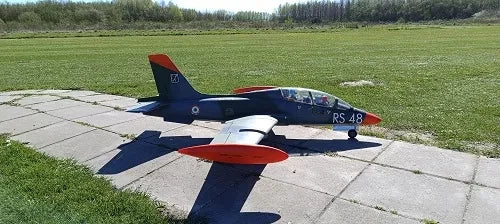

RBC MB339 100mm Kit (Two Boxes)

RBC MB339 100mm Kit - traditional build kit

Designer Luc Dietvorst

For 100mm Midi fan Evo edf and 8 cells 5000 (2 packs 5000) minimum 10-12 cells more power
We advise minimum the Midi Fan Evo 100mm with hetrc edf 700-75-1400 for 8 cells
The MB339 is easy to fly but not for beginners or beginner build

The MB339 is a lot of work to build , but very rewarding

In the instructions download are many 3d print files for the extra parts

Full pictures and instructions download here

2e flight movie here

3e flight movie here

Wingspan :1800mm

Wingarea :52dm
Length :1780mm

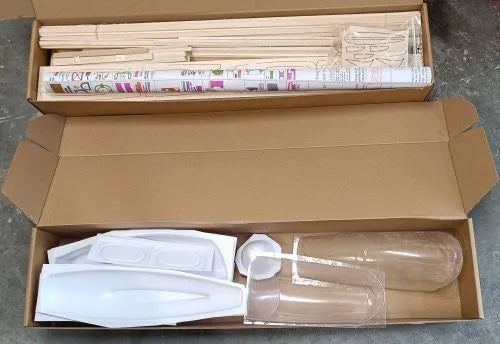

Kit Includes:
Photos and Instructions download
Decals as on the model added as a PDFso you can print them yourself Thanks Frank Born
Full Size Rolled Cad Plans With All Parts Shown in color
Build steps on the drawing with many 3d explaining graphics

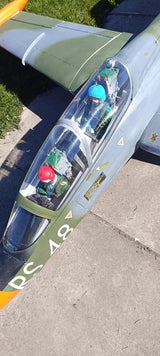

Vac-formed Canopy in 2 pcs,Nosecone,Inlet duct, Inlet lip, Tip tanks and paper Outlet ducting
3D print files for,drop in fan system ,

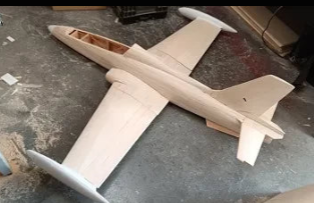

All wood and sheeting to make the MB339 ,288 CNC cut parts , 2 sheets of balsa  15 sheets of lite ply
Spruce,ply and balsa stringers and all sheeting and strip sheeting

Required to Complete: (NOT INCLUDED)
Any 8 Channel Radio
Light weight Receiver:
Servos: About 13 grams metal gear 5x and 30gr metal gear 2x small servos for door hatches

wemotec midi fan evo 100mm with hetrc edf 700-75-1400 8s minimum
or
wemotec midi fan evo 100mm with hetrc edf 700-83-1080 10-12s

No hardware, linkages etc are included

Retracts, Battery, ESC etc all required

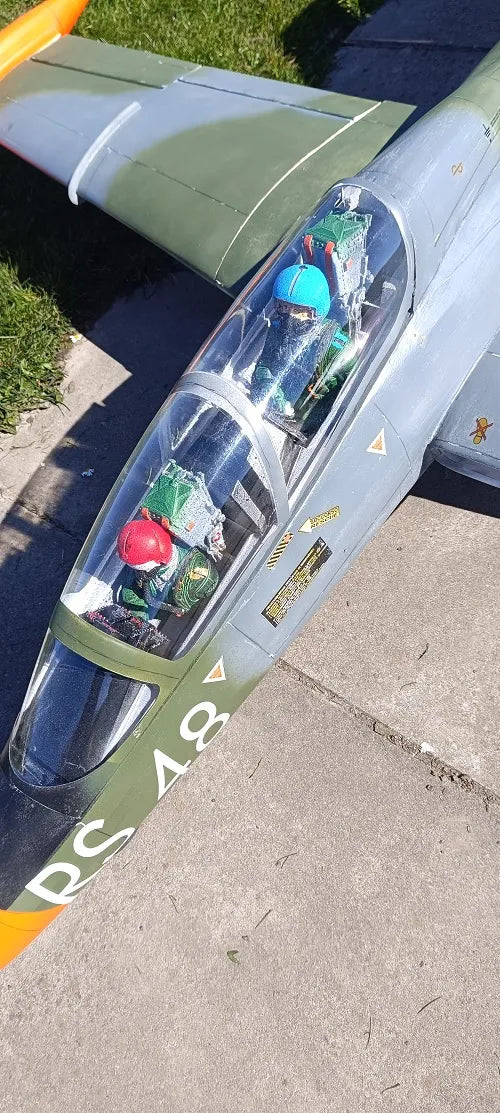

Pilots not included
