RBCKITS  |  SKU: JETJUHSJ32  |  Barcode: 32323213098765

RBC Jet Provost T-4 Kit

£231.99
Tax included Shipping calculated at checkout.

Description

Jet Provost T-4

For 90mm Midi fan Evo edf and 8 cells 4500 (a FMS unit or equ will not work in rbckits edf jets)
The Jet Provost is very easy to fly and lands slow as a trainer

Design Features:

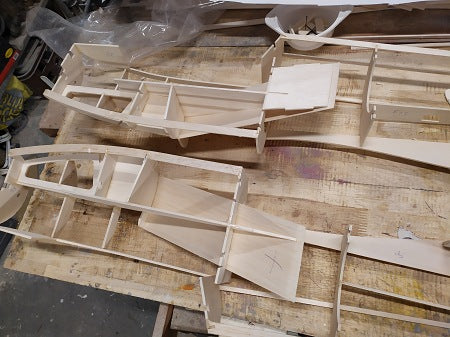

All Formers And Ribs 211 cnccut parts in balsa and ply
Unique Tab Lock Design
Removable wings for easy transportation and Storage

Kit Includes:

Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy,inlet lip,Paper Exhaust ducting,Paper inlet ducting
All wood and sheeting to make the JP
There is no hardware in the JP

Required to Complete:

Any 7 Channel Radio
Light weight Receiver:
Servos: Details listed below
Motor: Hetrc EDF650/58/1480 8s
Wemotec Midi fan Evo 90mm
Battery:8S lipo 4500ma
Small parts screws etc are not in kit:a list of parts is inc

Suggested package of items suitable for this model are as listed below:-

4 x Hitec HS85MG servos Elevator/Rudder/Flaps
2 x Hitec HS82MG servos ailerons
1 x M5 Wing Bolts (pair- F-RAA1074)
16 x CA Hinges (pack 12 - F_SL163)
8 x Pinned Hinges (Pack 10 - F-RCA142)
1 x Sullivan (or similar) Push rods (SLN504)
1 x Sullivan Push Rod - Flexible (SLN586)
1 x Aluminium Sheet 0.5mm (160 x 170mm)
6 x Horns (SL829) (SL829 pair) @1.30
8 x 2.2 x 6mm Screws
16 x 2.9 x 13mm Screws
1 x 2mm Piano Wire (PW6XM)
1 pair 78mm Main Wheels
1 (pair) 60mm Nose Wheel
4mm Bullet Connectors (for motor & ESC)
2 x 14.8v (4S) 5000mAh Lipo pack with XT90 (SKU2259)
XT90 connectors or the lipo packs (RDNAC010037)
XT90 Series Connector10AWG 100mm RDNAC010039
1 x Mantis 120amp Opto HV ESC (6-12) ZTWW2120401
1 x Midi-Fan Evo/Het 650-58-1480 Brushless motor
25-46 JP Main retracts (4406340)
25-46 JP Nose retract unit (4406335)
ZAP CA (Thin) 1oz PT08 5525652-1
ZAP-A-GAP Medium CA+ 1oz (PT-02) 5525642
Aliphatic Resin 112g by Deluxe (AD8) S-SE09
BSI Mid-Cure™ 15 Min Epoxy (4 1/2oz) BSI203




Specifications

Wing Area: 40 dm2<br />Wing Span; 1550 mm<br />Lenght :1380mm<br />Flight Weight: Starts at 4500 grams<br />6 Channel , Ailerons,elevator,Throttle,Retracts, flaps,nosewheel steering
