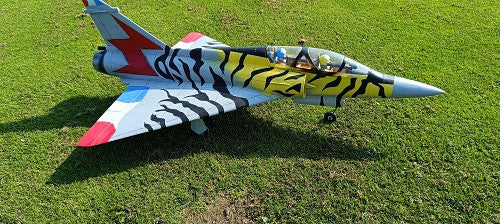

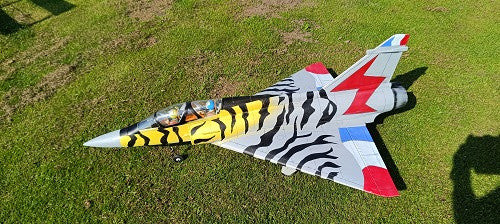

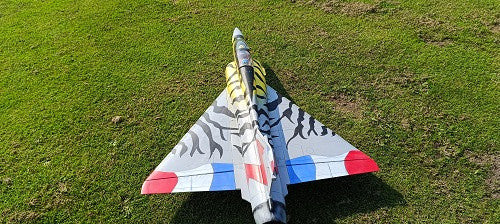

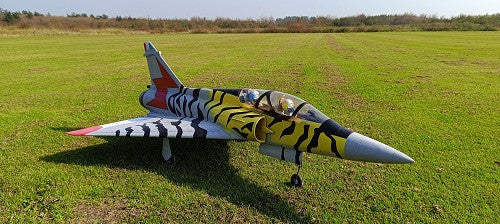

RBC F16 Mirage 2000 kit

RBC F16 Mirage 2000 kit

or 90mm Midi fan Evo edf and 6 cells 6000 (2 3s packs 6000 needed)

We advise the Midi Fan Evo 90mm with HET 650-68-2000

The Mirage  is easy to fly but not for beginners or beginner builders

The Mirage is a medium work to build , just 2 removable wings

In the instructions download are many 3d print files for the extra parts

Full pictures and instructions download here

A flight movie here from Frank Born

Second flight movie From Frank Born

Wingspan :1014mm

Wingarea :45dm
Length :1522mm

Our flying weight 3,8kg
2 packs  3S6000 HV  370gr each
bec for receiver
bec for retracts we advise JP retracts
wemotec midi fan evo 90mm ducted fan unit / HET 650-68-2000

4 Channel , ailerons,elevator,Throttle,Retracts,
,nosewheel steering,rudder
Kit Includes:
Photos and Instructions download
Full Size Rolled Cad Plans With All Parts Shown in color
Build steps on the drawing with many 3d explaining pictures
Vacuformed Canopy,Outlet ducting paper

3D print files for ,seat , ,drop in fan system ,nose cone(the kit has a balsa nose cone)
All wood and sheeting to make the Mirage , 143 cnc cut parts , 1 sheet of balsa  5 sheets of lite ply
Spruce,ply and balsa stringers and all sheeting
There is no hardware  in the Mirage like hinges and horns etc etc
Required to Complete:
Any 8 Channel Radio
Light weight Receiver:
Servos: About 20 grams metal gear 2x and 13gr metal gear 1 x  and small servos for door hatches
Midi Fan evo 90mm ducted fan unit / HET 650-68-2000

use our drop in extensions or print them yourself
Battery:3S lipoHV 6000ma 2x
Medium CA glue, large bottle
Small parts screws etc are not in kit ; a list of parts is included

Retracts from JP, Mains , Front, Controller
Struts example from JP , check for size wheels and length

Note that these legs have small wheel and that might give a problem
when starting from a grass field, the Mirage needs a good runway
