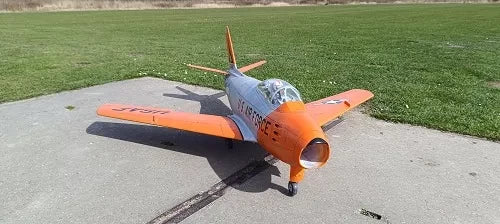

RBC F-86ASabre Kit

For 100mm Midi fan Evo edf and 8 cells 5000 (2 packs 5000 needed)
Why a 100mm fan ? The 100mm gives a lot of thrust
We advise the Midi Fan Evo 100mm with hetrc edf 700-75-1400
The F-86 can easy be fitted with a 90mm midifan evo HET 650-68-1600

The F-86  is easy to fly but not for beginners or beginner build model

In the instructions download are many 3d print files for the extra parts

A pilot for 3d print can be found here :

Full pictures and instructions download here

A pilot for 3d print can be found here :

Full pictures and instructions download here

A flight movie here

Kit Includes:
Photos and Instructions download
Decals as on the model added as a PDF so you can print them yourself
Full Size Rolled Cad Plans With All Parts Shown in color
Build steps on the drawing with many 3d explaining pictures
Vac formed Canopy, Nosecone, Inlet duct, Ducting,Paper and Outlet ducting

3D print files for gun ,seat , ,drop in fan system ,

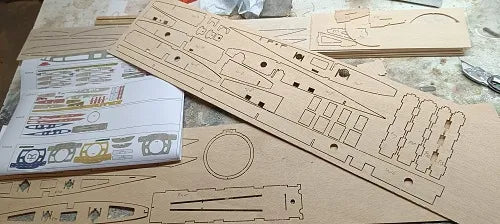

All wood and sheeting to make the F-86 , 237 CNC cut parts , 3 sheets of balsa  10 sheets of lite ply
Spruce,ply and balsa stringers and all sheeting

Wingspan :1500mm

Wingarea :48dm
Length :1550mm

Required to Complete: (NOT INCLUDED)
Any 8 Channel Radio
Light weight Receiver:
Servos: About 13 grams metal gear 4x and 30gr metal gear 3 x  small servos for door hatches
wemotec midi fan evo 100mm with hetrc edf 700-75-1400 or wemotec midi fan evo 90mm Hetrc EDF650/68/1600
Hardware such as horns, kinksages etc.

Retracts, Battery

Builders set up below

Our flying weight 5,4kg
2 packs  4S5000
1 3s lipo with bec for receiver
1 2s lipo pack for retracts
wemotec midi fan evo 100mm with hetrc edf 700-75-1400

6 Channel , ailerons,elevator,Throttle,Retracts, flaps
,nosewheel steering,rudder
