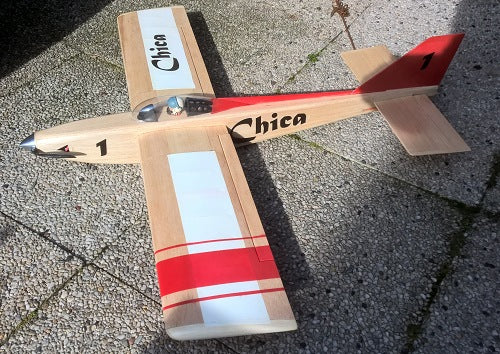

RBC Chica kit

All wood construction.
Vacuum formed Canopy,instrument panel ,
Easy building kit all parts cnc cut ,
The Chica is a great flyer with the Hetrc Xtreme 2814-1250kv motor and 3-4 lipo cells 2500


Design Features:
All Formers And Ribs CNC Cut
Unique Tab Lock Design
One Piece Design Easy transportation
Motor/Battery compartment Easy accesable
Battery Acces Through hatch opening

Required to Complete:

4 Channel Radio.
Light weight Receiver:
Light weight Servos: About 13grams (2x ailerons ) to 30 grams (elevator and rudder)
Motor: type Xtreme 38-14 1250kv or 2w-20
35-75 amp controller
Some paint and covering material

Battery: 4S 2500 lipo
Thick and Thin CA glue 4 bottles

Wing Area: 17 dm2
Wing Span; 1000 mm
Flight Weight: Starts at 1000 grams
Wing Loading: 58gr dm2
3 Channel Controls
Kit Includes:
Photo Instructions on CD and Many more Pictures
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy instr panel

Control Horns , Steering Cables,Hinges included
