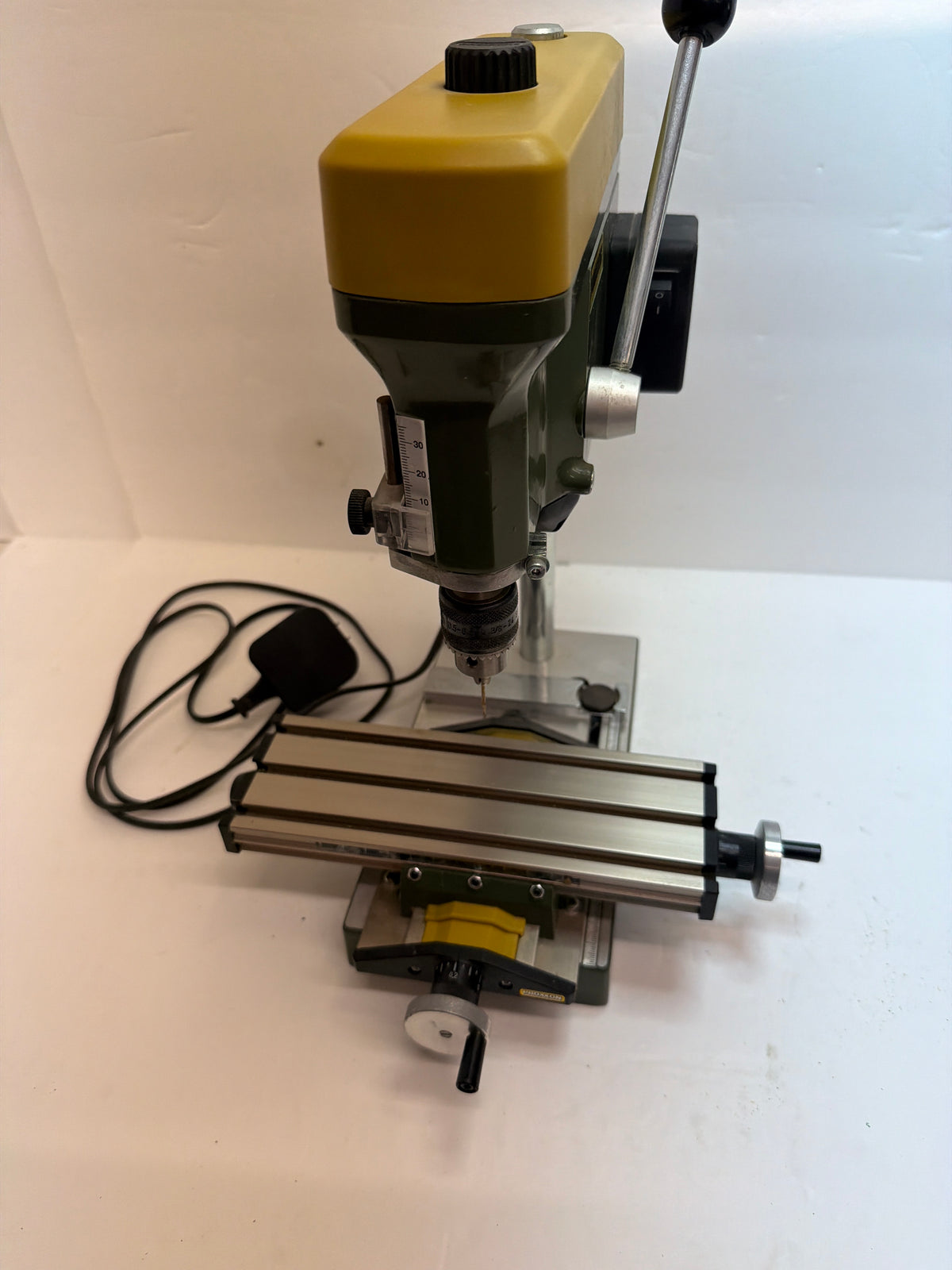

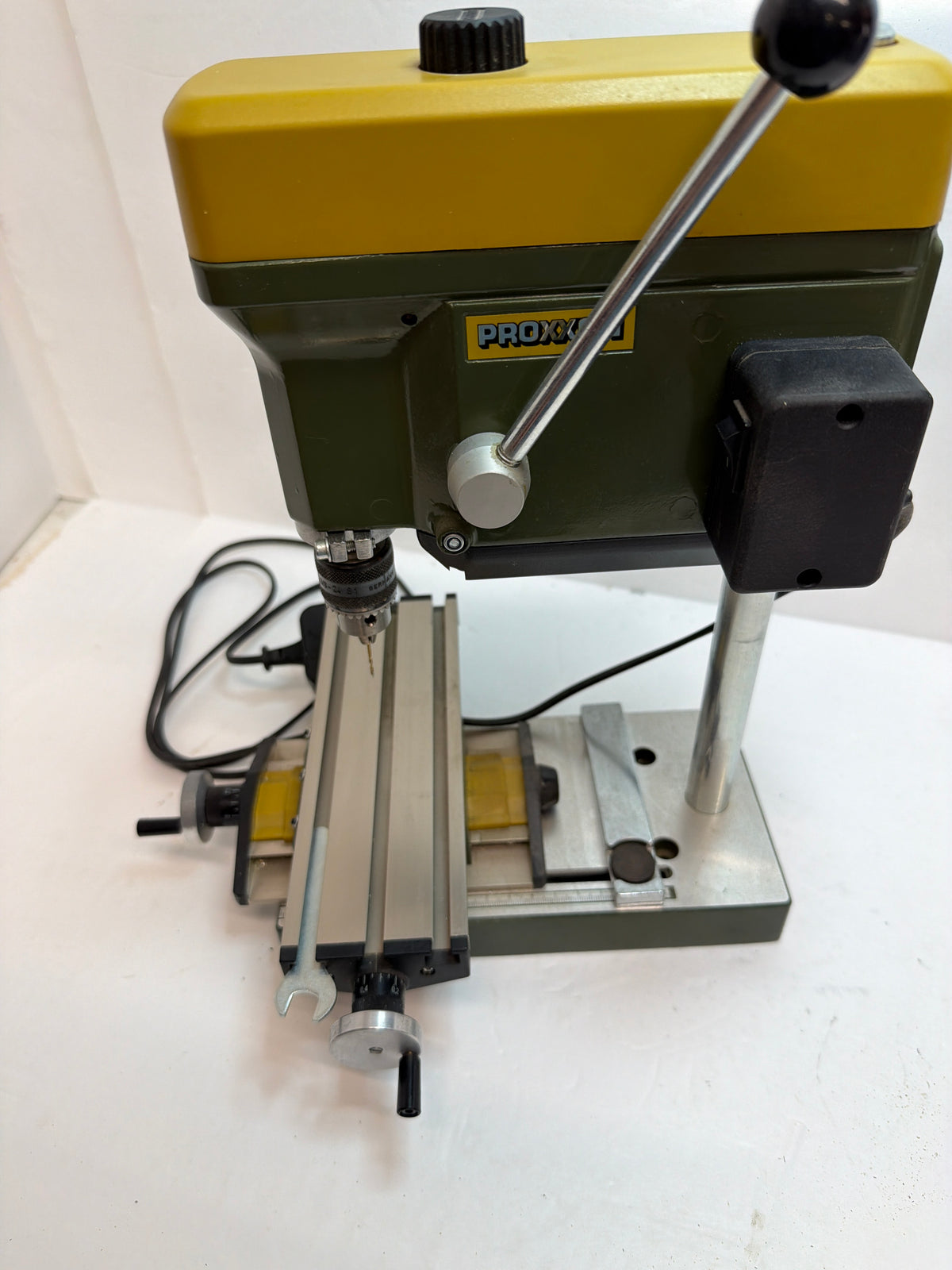

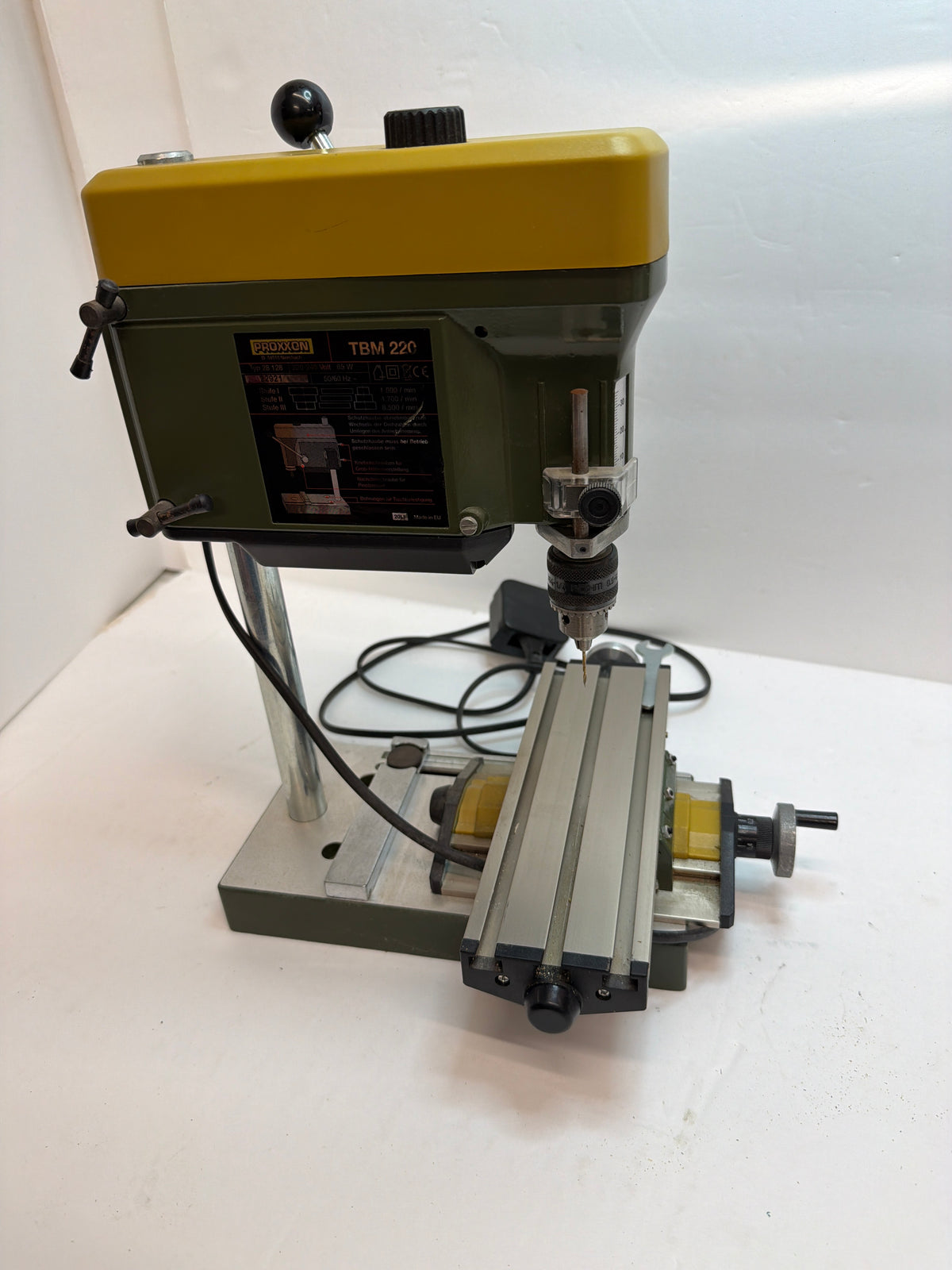

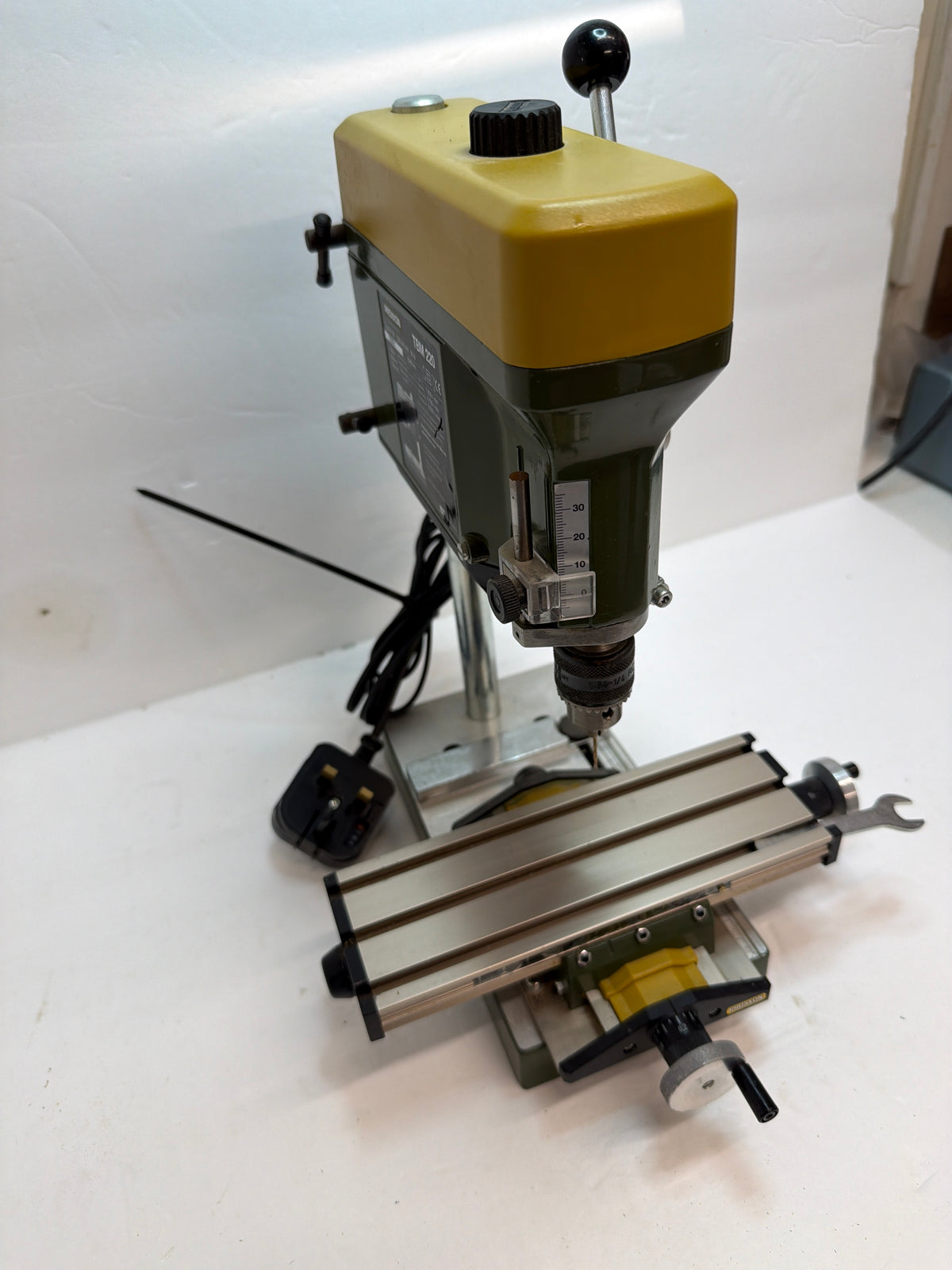

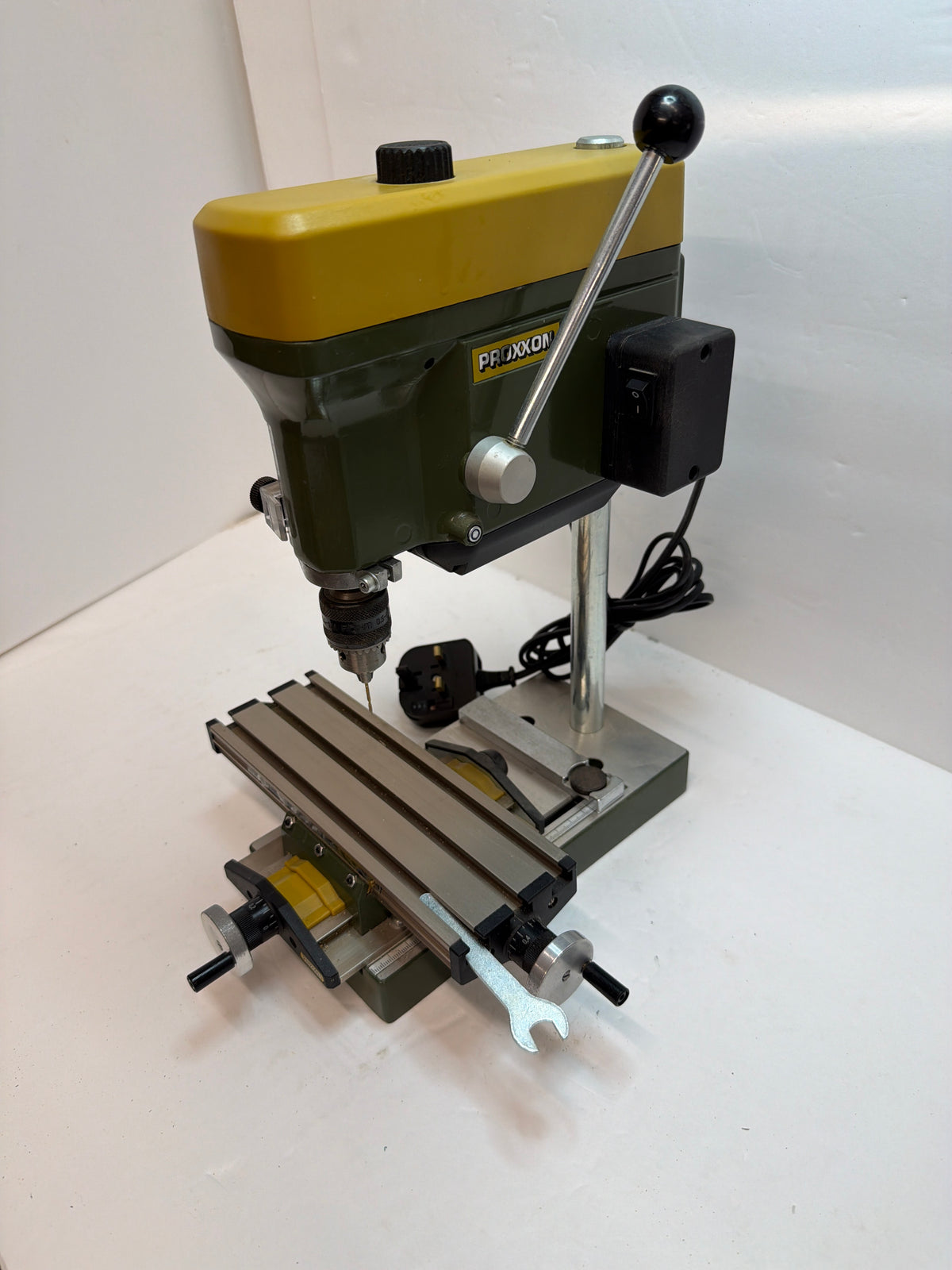

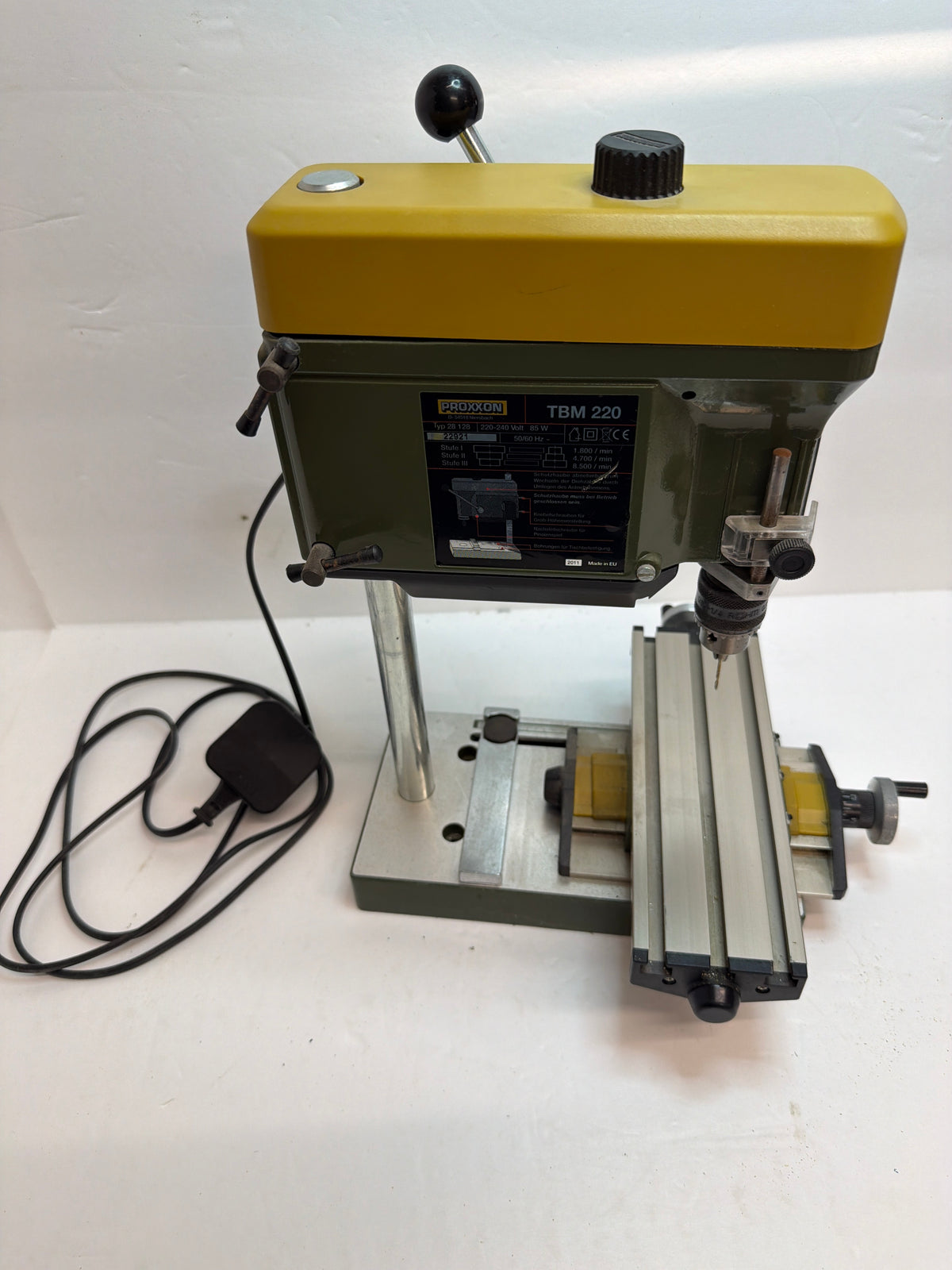

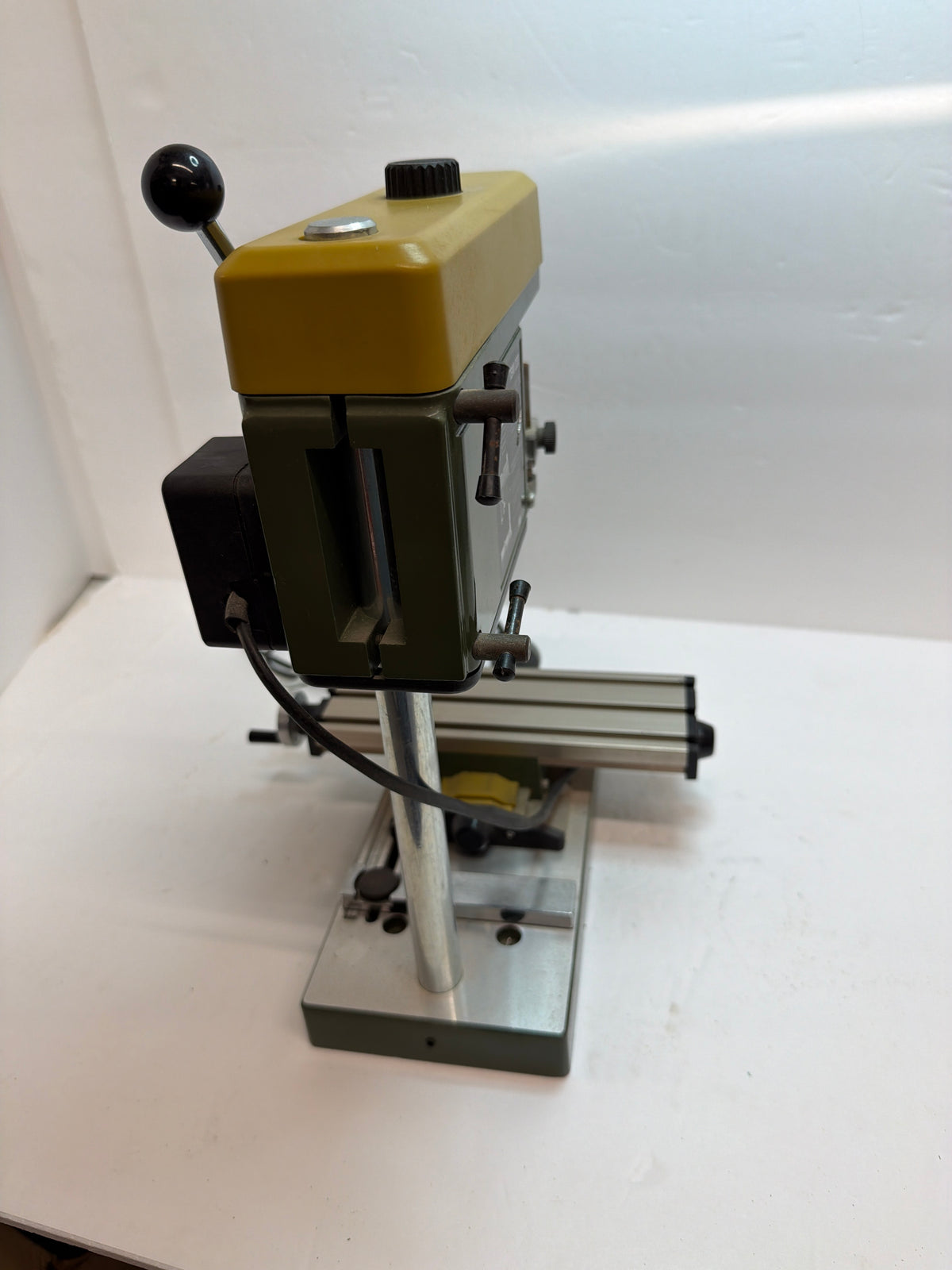

PROXXON Mini Bench Drill Press TBM 220 240v with 27100 KT70 Micro Cross Table XY Table Second hand

The machined worktop is of high quality, ribbed die-cast aluminium (220 x 120mm), featuring an adjustable fence with scale and a solid, hard-chromed steel column, 280 high x 20mm diameter. The super stable die-cast head comes with a VDE approved 230V, 85W motor. Power transmission is by aluminium pulleys and flat belt. There are three spindle speeds of 1,800, 4,700 and 8,500 rpm. Chrome feed lever with adjustable depth scale. The spindle is supported by three high quality sealed bearings. The recessed spindle is for insertion of MICROMOT steel collets, but also threaded for drill chucks 3/8" thread giving extremely high rotational accuracy with 30mm feed. The quill diameter is 32mm, with return spring. Throat depth, column to drill spindle, 140mm. Quick coarse height adjustment of headstock is with clamp levers. Maximum height 140mm. Supplied with Drill chuck instead of collets
Key Features
Machined worktop of high quality, ribbed die cast aluminium

Adjustable fence with scale

Depth gauge with scale

Extremely high rotational accuracy



Technical data
230V. 85W. 50 - 60Hz. Spindle speeds of 1,800, 4,700 and 8,500rpm. Extremely high rotational accuracy, 30mm feed. Throat depth 140mm. some triple slit precision collets for shaft s are included. 3/8" thread. Weight 3.3kg.
