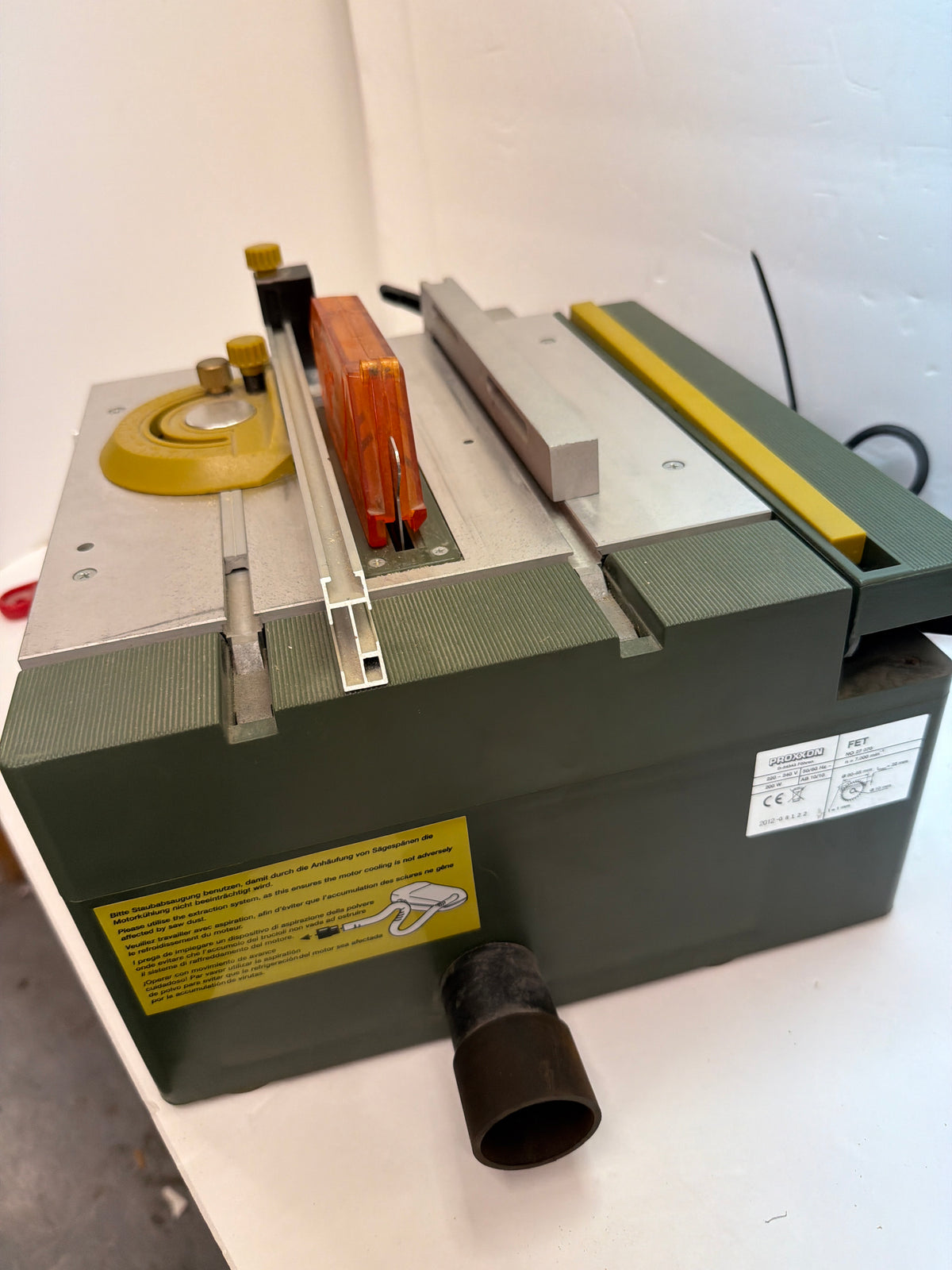

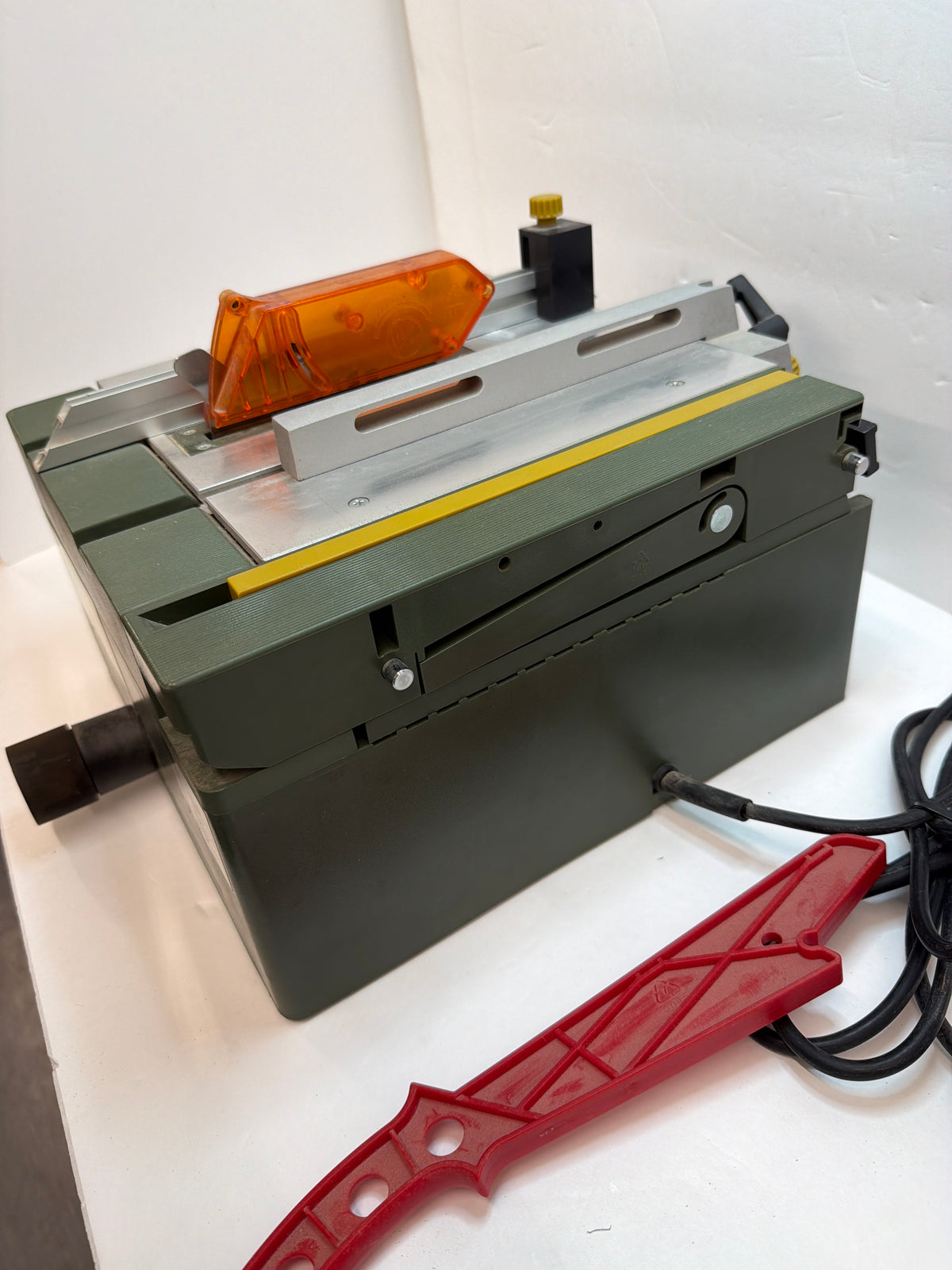

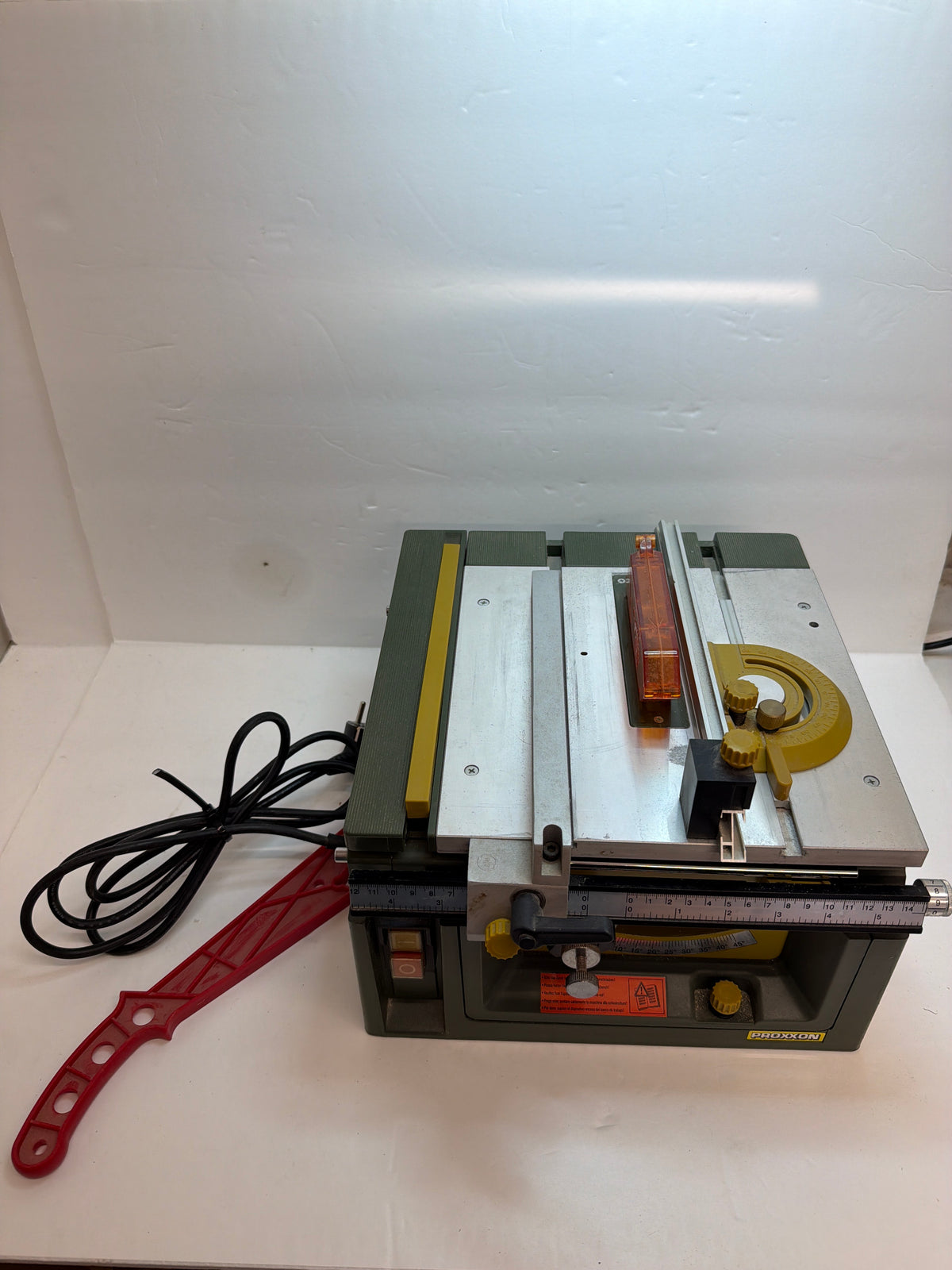

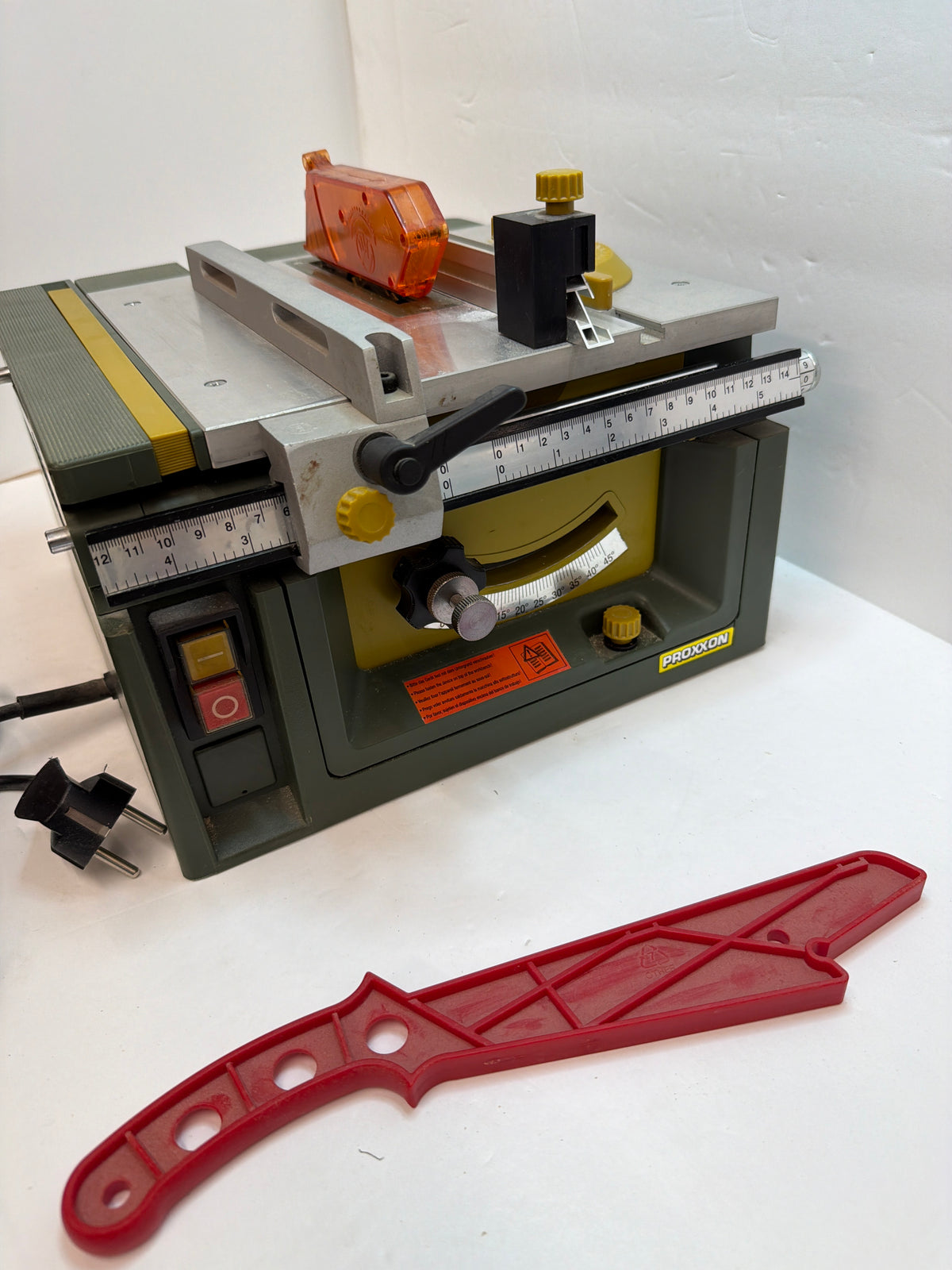

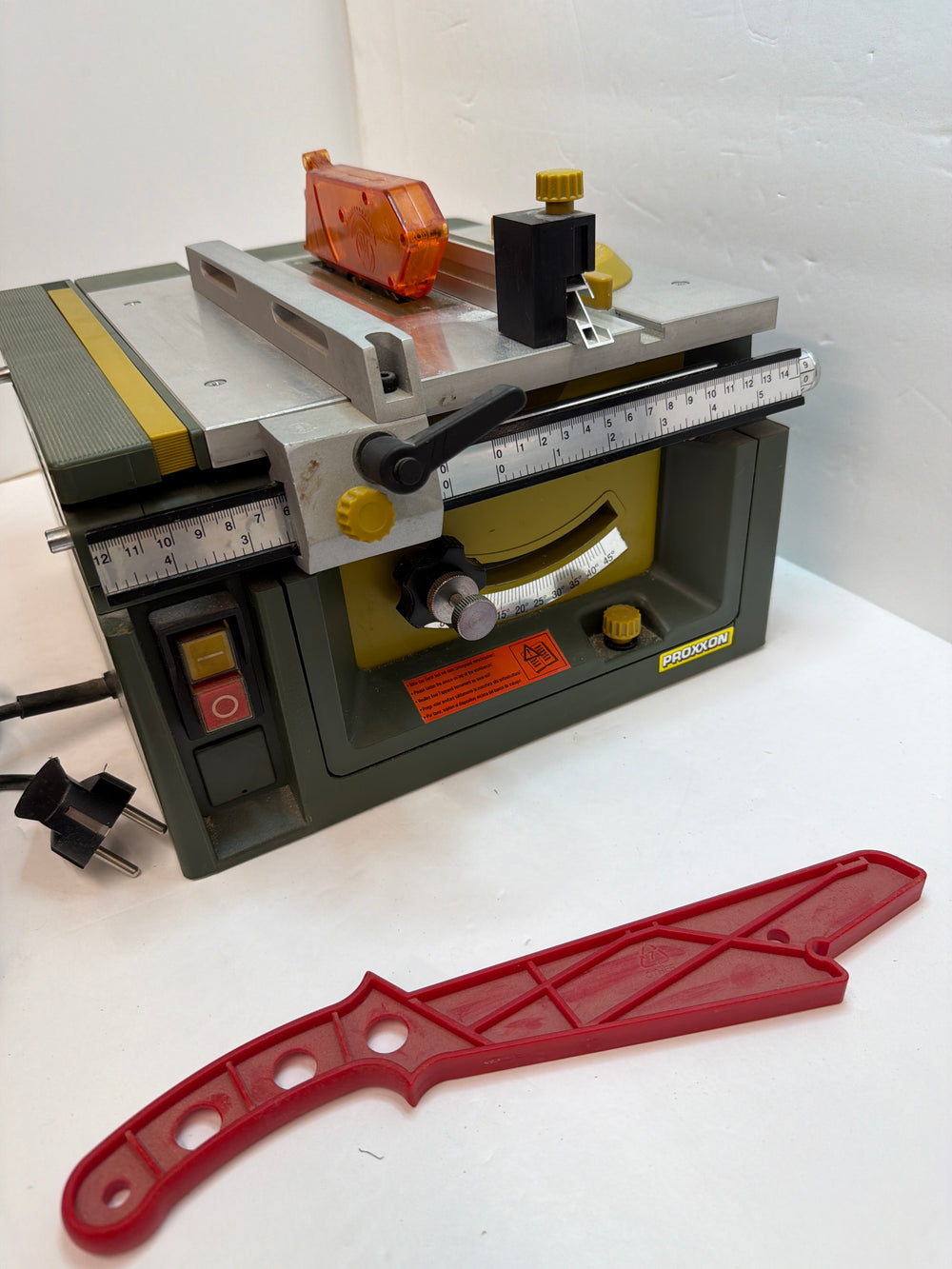

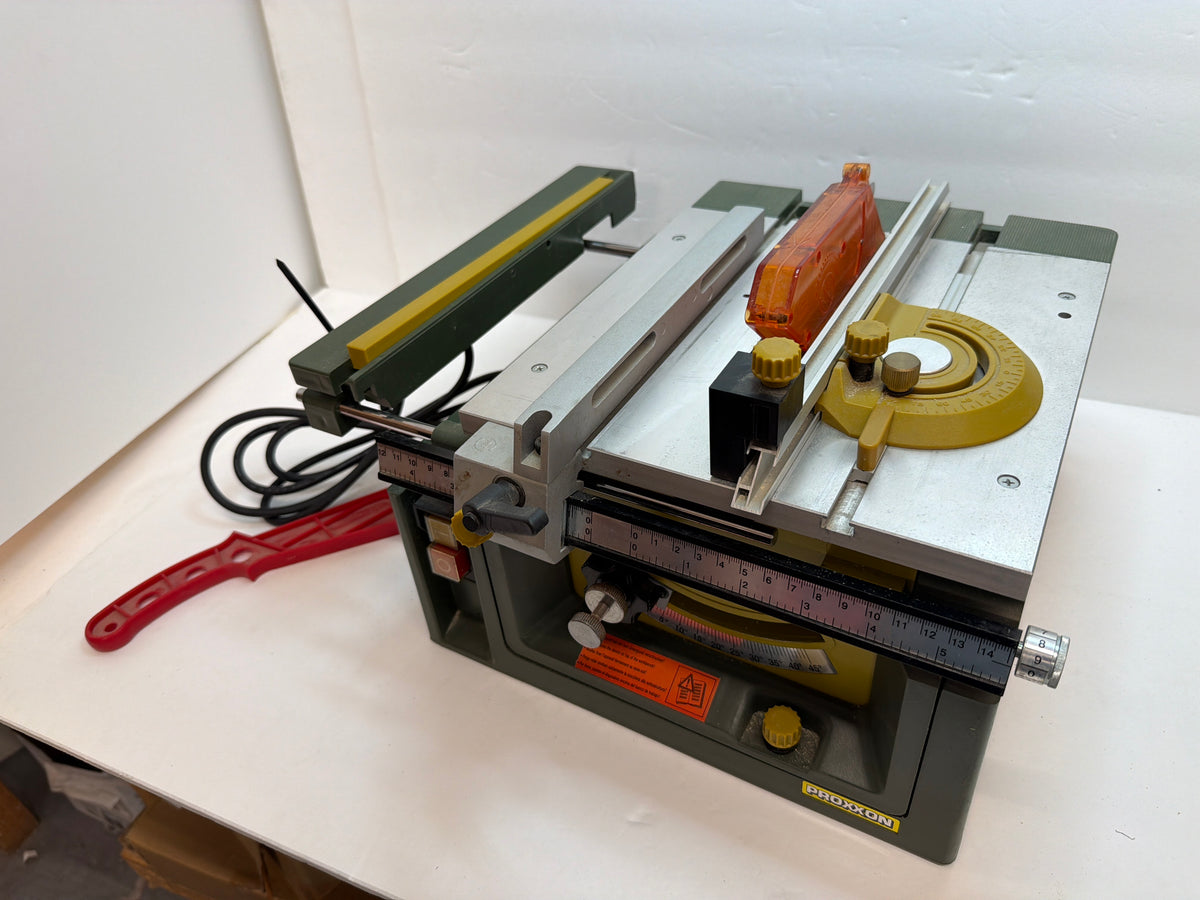

Proxxon 27 070 Table Saw FET Second hand

Proxxon FET Table Saw

A great addition for any home workshop, a very versatile machine able of more than you would expect.

or fine mechanics, model building, mould construction, toy manufacture, architects, model carpenters and fitters.

For cutting wood, non-ferrous metals, plastics, Plexiglas, glass fibre reinforced sheets, foam and many other materials.

Stable construction because load bearing parts and plane-milled table are made of die-cast aluminium.

The micro-adjustable, precise and stable longitudinal stop provides decisive advantages: Corrections even smaller than 1/10mm can be made after coarse adjustment using an adjusting screw.

The height adjustable and 45° tiltable saw blade makes it possible to cut double mitres when used together with the angle stop.

Low-noise drive using DC special motor with Optibelt toothed belts. Ball-bearinged saw blade shaft. Tungsten tipped saw blade 80 x 1.6 x 10mm (24 T). Additional work piece pusher and non-slotted ABS sawing gap cover for tight tolerances between saw blade and table.

1. Extendable table extension with integrated auxiliary stop.
2. Plane-milled table in die-cast aluminium with 2 continuous T-nuts for the angle stop.

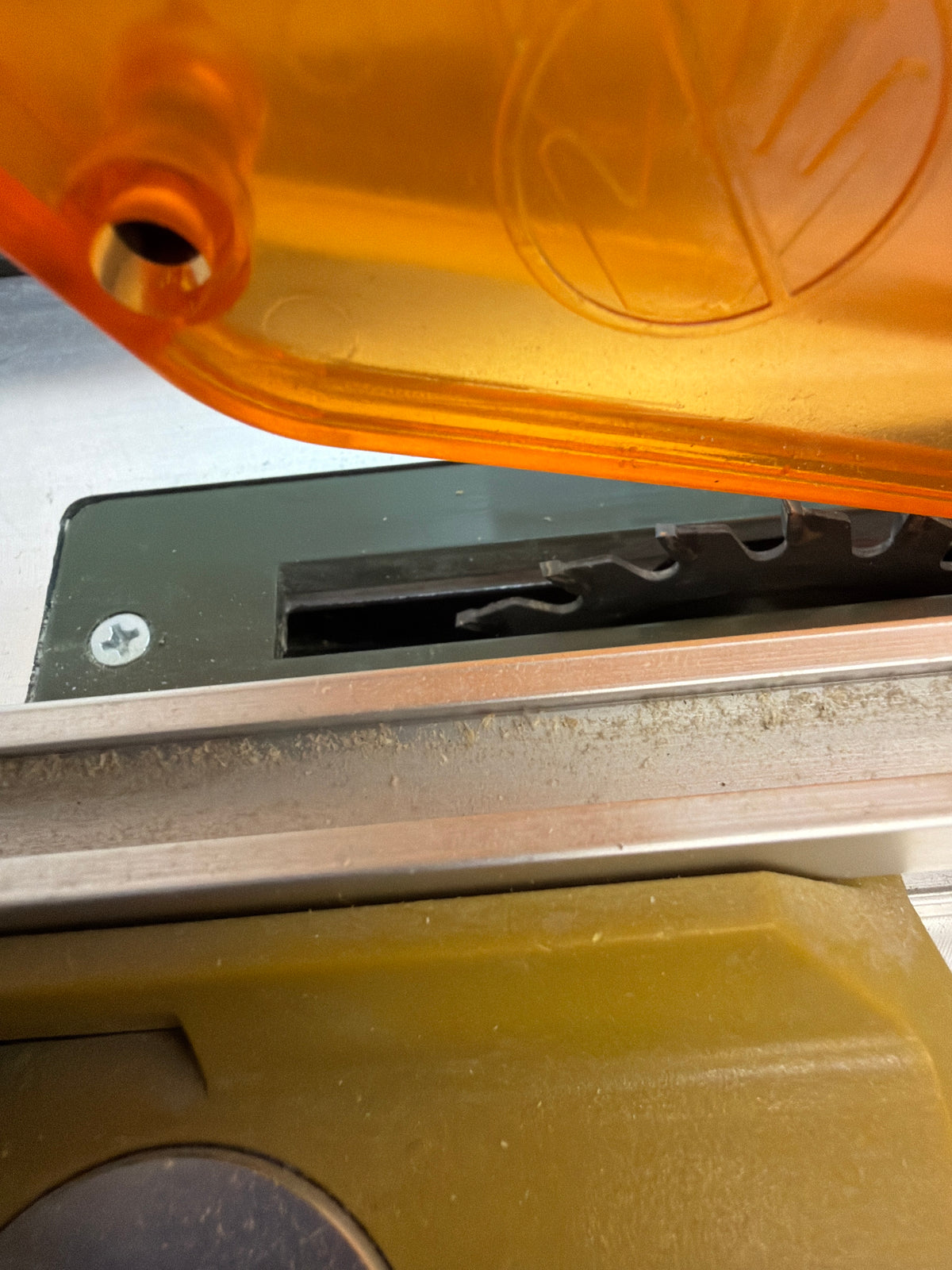

3. Saw blade protection runs up automatically when sawing.
4. Clamping screw for height adjustment and pivoting the hard metal-equipped sawblade.
5. Scale helps when adjusting the longitudinal stop!
6. Setting screw for fine adjustment of longitudinal stop by 1/10mm.
7. Angle stop with stop rail of aluminium and adjustable limit stop for manufacturing parts of equal length and the same angle.

Technical data:
220 - 240V. 7,000rpm.
Mitre infinitely adjustable up to 45°.
Table size 300 x 300mm. Cutting depth 1 - 22mm.
Saw blades between 50 - 85mm can be used (with 10mm centre hole).
Weight approx. 6kg.
Extendable table extension with integrated auxiliary stop.

• For precise cuts with a height-adjustable and tilting saw blade
• Milled die-cast aluminium table
• Table and drive can be lifted up for easy access for cleaning or blade changing
• Micro-adjustable cut length stop for cuts as small as 0.1mm
• The saw blade tilts up to 45°
• Special DC motor with Optibelt toothed belts
• Supplied with 80mm x 24 saw blade
• Push stick and zero tolerance POLYCARBONATE table inset
• Dust adaptor for connection to a vacuum
• W 300mm D 300mm H 180mm

A saw designed for precise, straight cuts, with a height adjustable and tilting saw blade, up to 45°. It is made for the fine mechanic, model builder, mould making, toy manufacture, architect, model carpenter and fitter. A variety of optional blades allow it to cut a wide range of materials, such as wood, non-ferrous metals, plastics, Plexiglas, PC cards, foam and many others. All load bearing parts and plane-milled table are made of die-cast aluminium making the FET saw very stable.The table and drive lift for easy access for cleaning or changing the saw blade. The micro-adjustable, precise cut length stop allows cuts as small as 0.1mm to be made. The saw blade, which can be pivoted by 45°, makes the cutting of double mitres possible when used with the angle stop. The FET is driven by a special DC motor with Optibelt toothed belts connecting it the main ball bearing supported shaft. Standard equipment supplied with the saw includes a 24 tooth hard metal-equipped saw blade 80 x 1.5 x 10mm. A push stick and a non-slotted polycarbonate sawing table inset for tight tolerances between saw blade and table when cutting small parts. The FET has a dust adaptor suitable for connection to a vacuum for dust free working.
