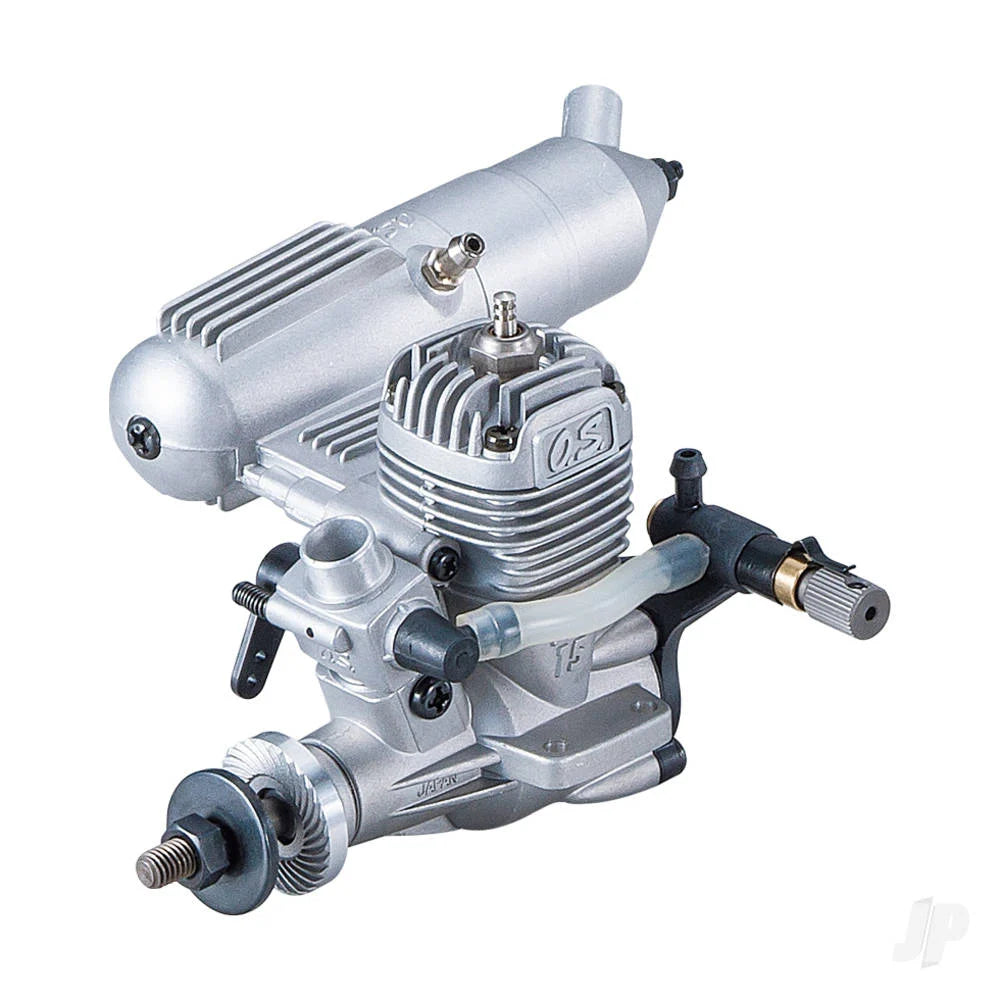

O.S. Engines MAX-15LA (2.5cc) 2-Stroke Glow Engine

OS MAX LA motors for beginners and sports models, reliable and easy to handle. The nozzle needle is set back so that it can be set as safely as possible a little distance away from the propeller as it turns.

Contents

• 1x MAX-15LA with 10G carburettor.
• 1x 871 silencer.
• 1x No.6 glow plug.
• 1x Silicone tube (remote needle).

Distance of screw hole / longitudinal [mm]: 14,5
Distance of screw hole / crosswise [mm]: 33
Item Number Manufacturer: 11532
Diameter of fixing hole [mm]: 3,2
Bore [mm]: 15,2
Width [mm]: 40
rpm range, approx.: 2500~18000
Field of application: Aircraft
All-up weight [g]: 138
Height approx. [mm]: 62
Cylinder capacity [ccm]: 2,49
incl. silencer: Yes
Fuel: Nitro
Length to hub: 64
Output [kW / (PS)]: 0,31 (0,41)
Output [kW / PS] at [rpm]: 17000 U/min
Carburetor: 10 G
Shaft thread: M5
Propeller Range: 7x5 7x6 8x4-5
