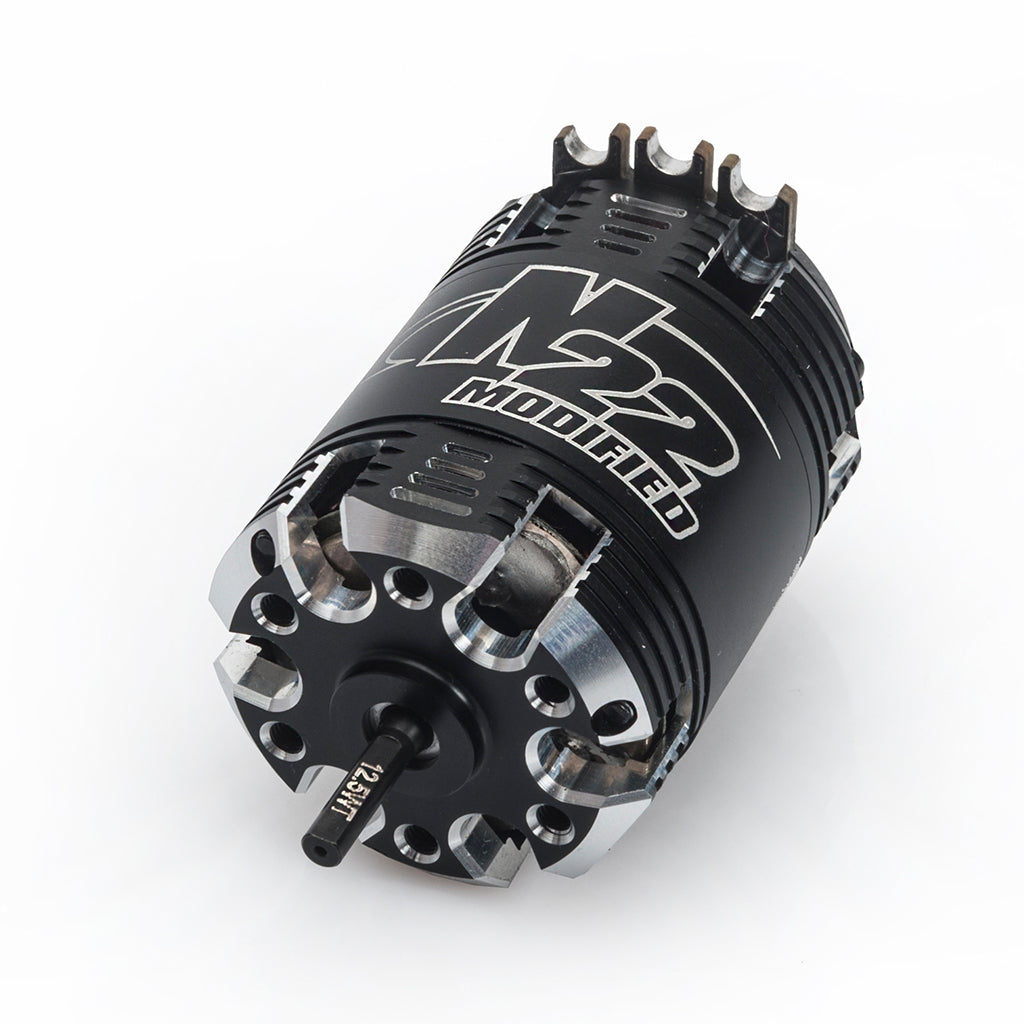

Nosram N22 Modified Motor - 9.0T

N22 is the latest model of the Worlds Winning Pure Series and Nosram's new power source for 1:10 electric Modified racing. Due to an ultra-lightweight and precision machined 7075-T6 aluminium housing with maximised cutouts and additional openings on the flat parts, the N22 features increased cooling surface and improved airflow resulting in lower running temperatures even at maximum loads. In terms of colour, the N22 comes with "stealth black" anodising and a unique N22 engraving - a perfect match for any car chassis.

On the technical side, a more precise timing setting is now possible, while the timing range has been precisely adjusted and optimised from 14.5 degrees to 34.5 degrees. The 2017 specification dual axis balanced sintered rotor with red balancing rings now also features a longer mounting surface. The internals were updated all around for higher efficiency and vibration free operation while smaller dual precession 4x10x4 ABEC-5 bearings provide very precise running and longevity. 2017 PCB board specification ensures even lower resistance than the previous model. The unique waterproof PreciSensor assures precise operation with any speed control and offers additional advantage when paired with Nosram ESCs.

Weight - 159-164g
Type - Brushless, sensored
Length - 50.8mm
Winding style - Star (Multistrand Copper Winding)
Input voltage - 1S-2S LiPo
Diameter - 35.9mm
Rotor - 12.5mm
