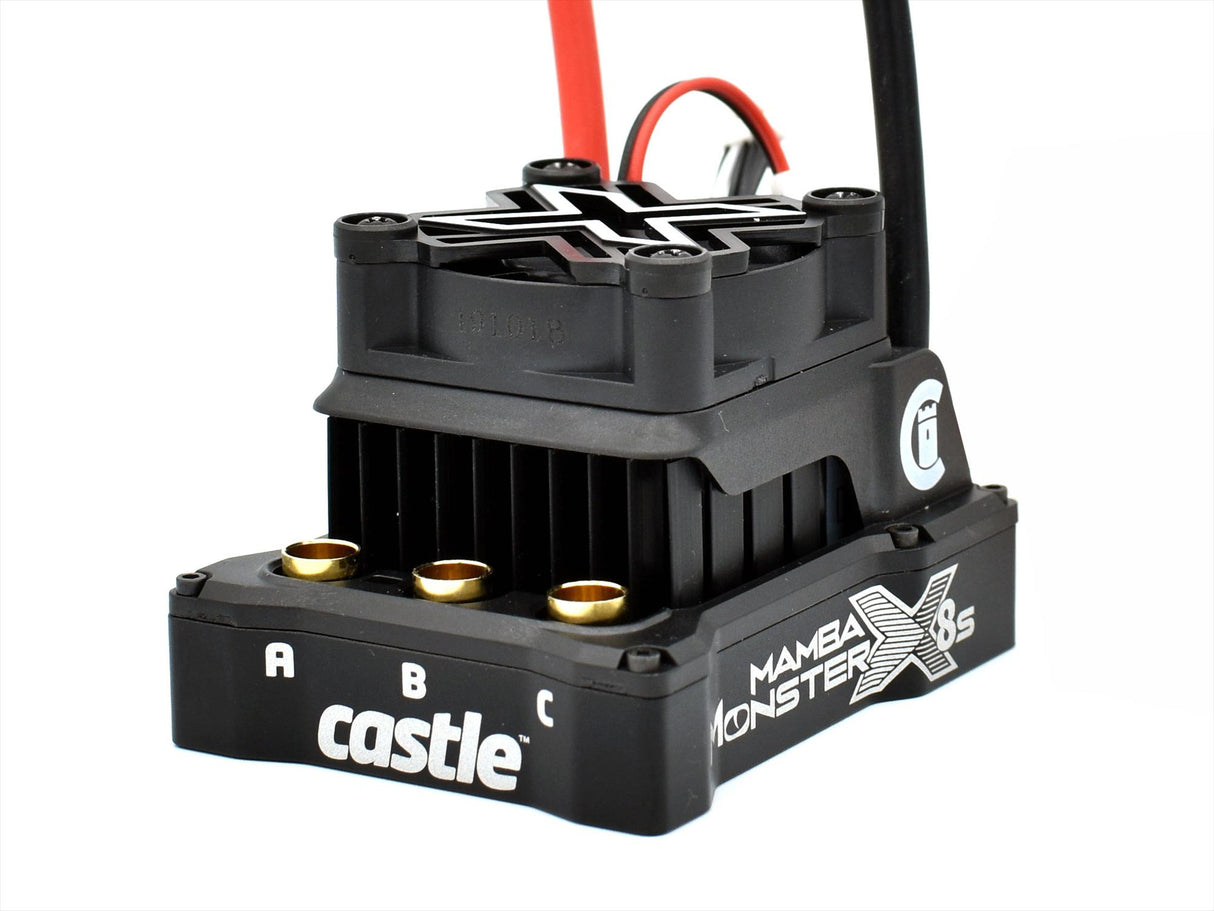

MAMBA MONSTER X 8S 33.6V ESC 8A PEAK BEC

Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle's breakthrough technology CRYO-DRIVE. By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows PC, or wirelessly with the convenience of the new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Rock Race Mode. Optimize your vehicle for any racing or bashing application you can imagine!

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR such as the 2028-800KV or 1515-2200KV, users with heavy, high speed rigs will experience controllable low-end ranges without sacrificing power, punch or speed. SmartSenseT mode uses the motor's sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle's ultra-efficient sensorless mode. You'll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Whether you are burning out, dropping the hammer, trigger happy, powering out, on-the rocks, off-the-rocks, wheeling or mud bogging - MAMBA MONSTER X 8S is ready to test the limits of your R/C car or truck.

Technical Specification
Application Guidelines:	1:6th Scale vehicles weighing up to 25 lbs
Input Voltage Range:	MIN: 2S LiPo, MAX: 8S LiPo 33.6V
Running Modes:	Sensored, Sensorless and SmartSenseT when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
Brake:	Proportional
Reversible:	Yes, but may be disabled for racing.
On/Off Switch:	Yes, waterproof
Cooling Fan:	Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
Size:	L x W x H 69.5mm x 54.1mm x 47mm
Weight (with wires):	5.75 oz. (163 grams)
Connectors type:	6.5mm female bullets for motor connection
Items Needed for Operation:	A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Operating environment:	Waterproof design for all weather conditions
Programmability:	Fully programmable Castle feature set using Castle Link USB adapter(coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable:	Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Product Use Statements:	Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries. Surge ratings should never be used to determine a pack's suitability for a brushless application. We recommend a high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors. Applying voltages higher than 33.6V will cause irreparable damage to ESC. Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
