SMC  |  SKU: 3010B  |  Barcode: 4013674003010

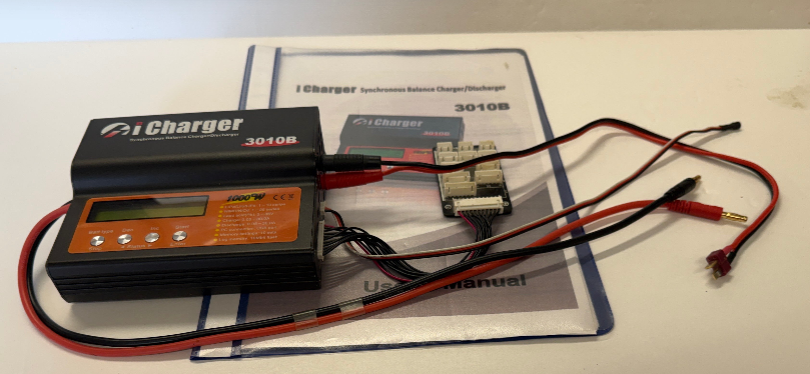

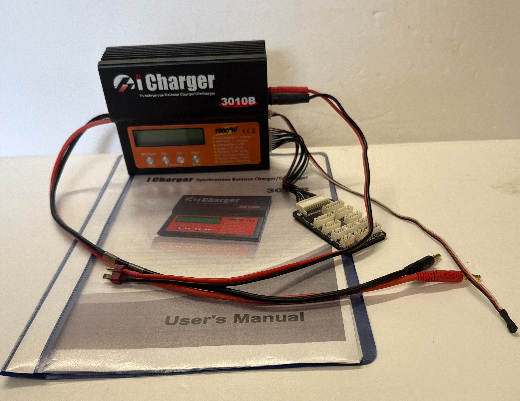

i Charger Balance/Discharger 1000W 20A DC/12v - SECOND HAND

£120.00
Tax included Shipping calculated at checkout.

Description

i Charger Balance/Discharger 12v -SECOND HAND

The iCharger 3010B & 306B are of course very powerful chargers and that means they need a powerful power supply, at least if you want to use them to their full potential. You can use lower wattage/voltage power supplies or even a 12V car/power panel battery to power the 3010B or 306B but the output power will be limited. The input voltage range is actually very impressive with the 3010B & 306B operating anywhere from 4.5 volts to 38 volts DC but you need 22 volts or higher @ 1000 Watts or higher to achieve the full 1000 Watts of output power.

Specification:

Input voltage range: DC 4.50 – 38.0V
Charge current range: 0.05 – 30.0A
Discharge current range: 0.05 – 30.0A
Maximum charge power capacity: 1000W/23V  500W /12V
Maximum discharge power capacity: 80W
Maximum regenerative discharge power capacity: 1000W
Maximum extern discharge power capacity: 1200W/40V/30A
Current drain for balancing: <500mA
Balance accuracy: <10mV
