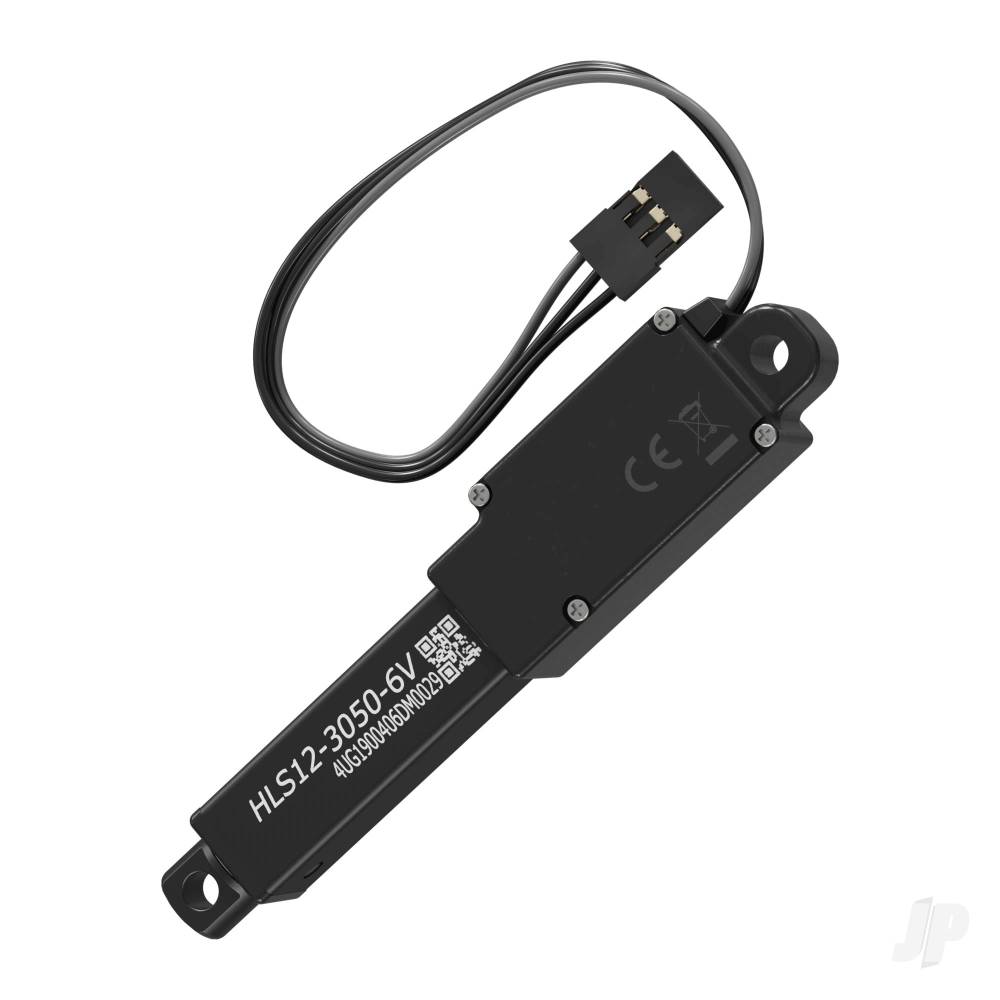

Hitec HLS12-3050-6V 30mm Stroke 50:1 Linear Servo 2.2kg/6.7mm/s 4.0V - 8.4V

Key Features

• Command Protocol: PWM
• Lead Screw: 5mm
• Motor Type: Cored Metal Brush
• Operating Voltage (Volts DC): 4.0V ~ 8.4V
• Testing Voltage: 6.0V
• Gear Ratio: 50:1
• No Load Speed: 25.0mm/s
• No Load Current: 100mA
• Maximum Efficiency Point: Load (kg / N): 1.0 / 10 - Speed (mm/s): 19.0 - Current (mA): 200
• Pear Power Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 14.0 - Current (mA): 300
• Max Force (Lifted): Load (kg /N): 2.2 / 22 - Speed (mm/s): 6.7 - Current (mA): 400
• Stall Force: 5.0kgf (49.03N)
• Stall Current: 500mA
• Max Static Force: 20.39kgf (200N) (above)
• Stroke SPEC: 30mm
• Repeatability: ±0.2mm
• Max Side Load (Extended): 4.08kgf (40N)
• Outline Dimensions: 82.0 x 15.0 x 18.0mm (3.23 x 0.59 x 0.71 in.)
• Weight: 34g (1.20 oz)
• Connector Wire Length: 160mm (6.29 in.)
• Connector Wire Gauge: 24AWG
• Bearing Type: Flange bearing
• Case Material: Engineering Plastic & Aluminium Pipe
• Gear Material: 4 Metal Gears
• IP Rating: IP4X
• Servo Amplifier Type: 32bit programmable Digital

Product Description

With 30mm of travel and a 50:1 gear ratio, the HLS12-3050 is ideal for short stroke applications requiring the fastest transit speeds. Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.

Product Height	18mm	.71in
Product Width	15mm	.59in
Product Length	102mm	4.02in
