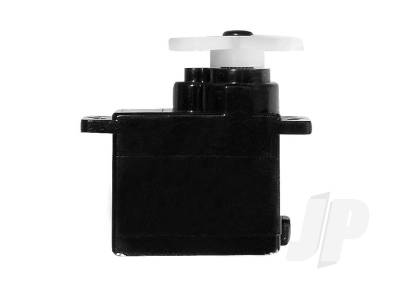

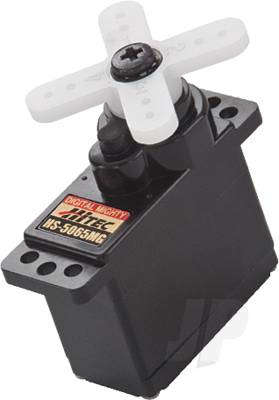

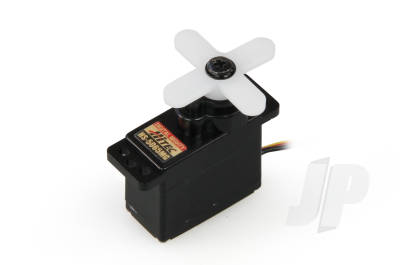

Hitec HS5065MG Servo

Description

Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features
Four metal gears with one ball bearing
High efficiency Nd magnet motor

Performance Specifications<br />Operating Voltage Range (Volts DC) 4.8V ~ 6.0V<br />Speed (Second @ 60°) 0.14 ~ 0.11<br />Maximum Torque Range oz. / in. 25 ~ 31<br />Maximum Torque Range kg. / cm. 1.8 ~ 2.2<br />Current Draw at Idle 3 mA<br />No Load Operating Current Draw 220 mA<br />Stall Current Draw 1,200 mA<br />Dead Band Width 2 µs<br />Physical Specifications<br />Dimensions (Inches) 0.92 x 0.45 x 0.94<br />Dimensions (Metric) 23.6 x 11.6 x 24.0<br />Weight (Ounces) 0.42<br />Weight (Gram) 11.9<br />Circuit Type G1 Programable Digital<br />Motor Type 3 Pole Metal Brush Neodymium<br />Gear Material Metal<br />Bearing Type Top Ball Bearing<br />Output Shaft (type / Ømm) Micro 23<br />Case Material Plastic<br />Dust / Water Resistance N / A<br />Connector Gauge (AWG) / Strand Count 28 / 20
