Hitec  |  SKU: 2213210  |  Barcode: 669962330022

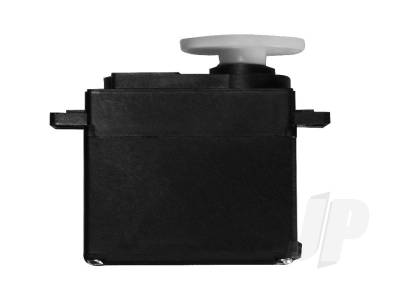

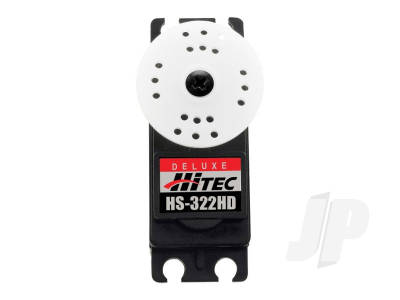

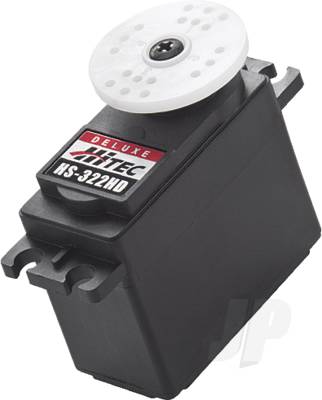

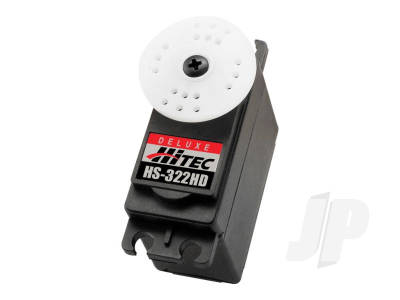

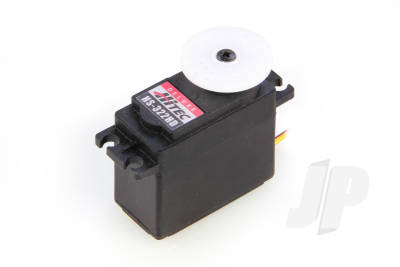

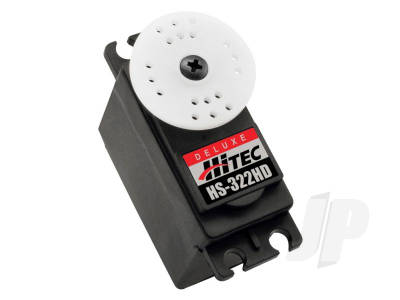

Hitec HS322HD Servo (2213220)

£19.25
Tax included Shipping calculated at checkout.

Hitec HS322HD Servo (2213220) will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.

Description

Description

The HS-322HD Standard Heavy Duty Servo utilizes Hitec's revolutionary Karbonite gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they dont show any signs of wear.Karbonite gears and our custom IC make the HS-322HD a great choice for an economical sport servo.

Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications, even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.



Features
Long life potentiometer
Top resin bushing
Two heavy duty resin gears

Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 42 ~ 51
Maximum Torque Range kg. / cm. 3.0 ~ 3.7
Current Draw at Idle 7.7 mAh
No Load Operating Current Draw 180 mAh
Stall Current Draw 800 mAh
Dead Band Width 5 µs
Physical Specifications

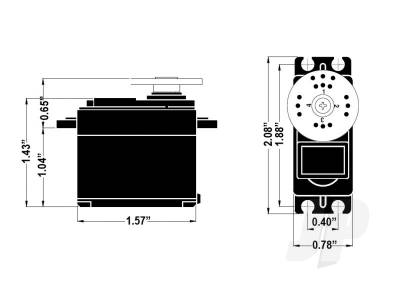

Dimensions (Inches) 1.57 x 0.78 x 1.43
Dimensions (Metric) 40.0 x 20.0 x 36.5
Weight (Ounces) 1.51
Weight (Gram) 43.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Nylon
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
