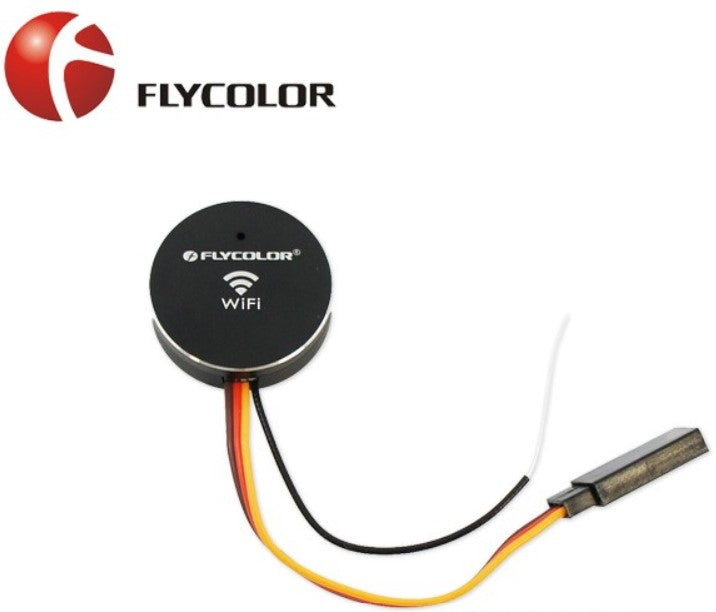

Flycolor Wi-Fi Trans (Box 47)

Features:

• It supports programming and finding out real data with the help of a smartphone application.
• Simple programming.
• Small size, unpretentious to maintenance and assembly.

Specifications:

• Operating current: 5-26V
• Consumption: <=300mW
• Dimensions: ? 27.5x9mm
• Weight: 9.2g
• Wi-Fi range: 0-20m (operational field)
• Wi-Fi protocol: IEEE802.11 b/n/g

Use:

• Connect Wi-Fi transmission cables to the controller and Wi-Fi Trans
• Wi-Fi Trans is powered by a controller.
• Turn on the controller, the LED on Wi-Fi Trans flashes once in red.
• Connect your phone to the Wi-Fi signal that is from Wi-Fi Trans.
• Wi-Fi Trans is ready. The programming configurator and the real data detection function are enabled.

QR code to download the application:

For Android
