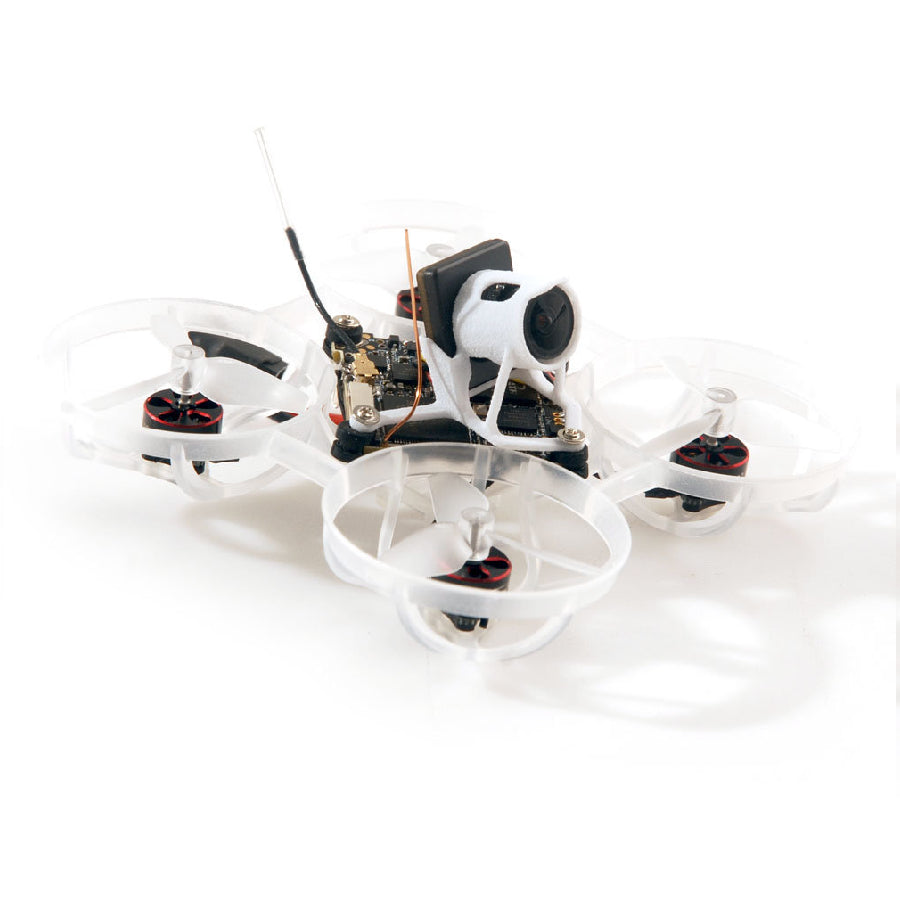

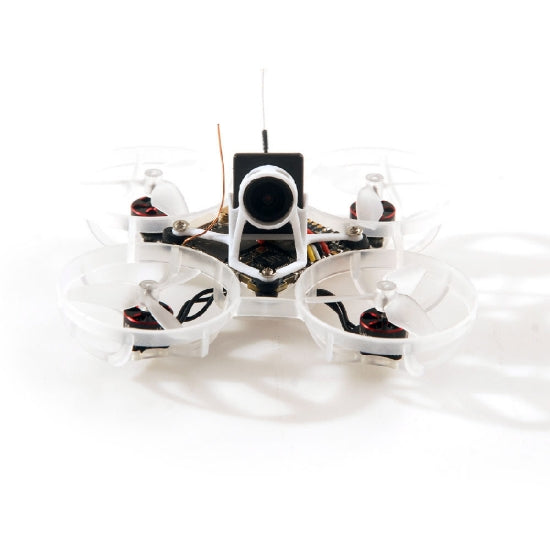

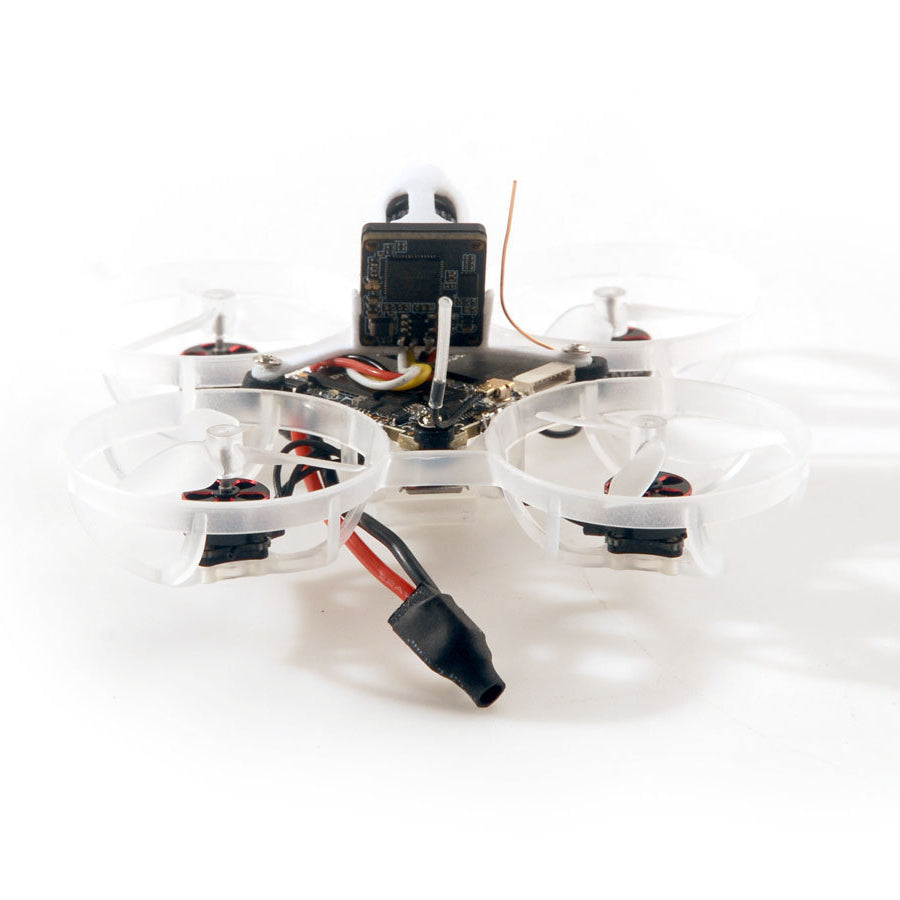

Happymodel Mobula6 Freestyle HD (HDZero) Drone

The Happymodel Mobula6 Freestyle HD BNF is the first 65mm HD brushless tiny whoop that weighs less than
19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a
low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS
RX, and 5V 1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity –
get ready for a new era of no-compromise tiny whooping in clear digital video!

To keep weight and cost to a minimum, the Freestyle HD BNF features the light weight HDZero LUX camera.
The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing
footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p
progressive scan video with the stable near-zero latency HDZero is known for.

Features:
- The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell SE0702 brushless motors with pcb wire board
- SPI BUS receiver ELRS V3 compatible

Specifications:
- Weight: 19.3g
- Propeller Size: 31mm

AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver
- Built-in 5V 1A BEC
- Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size

HDZero Lux Camera
- Sensor size: 1/2 inch
- Resolution: 720p60 4:3

Motors
- KV:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Φ1mm
- Weight:1.5g

Battery:
- Connector GNB A30 (Can also fit BT2.0 Batteries)
- Recommended Battery: 1S 300mAh
- Battery retaining loop internal dimensions: 6.5x11mm (See 'Related Products' below for battery suggestion).

Includes:

- 1x Happymodel Mobula6 Freestyle HD (HDZero)
- Accessories
