Hacker  |  SKU: 15716103  |  Barcode: 4250320233046

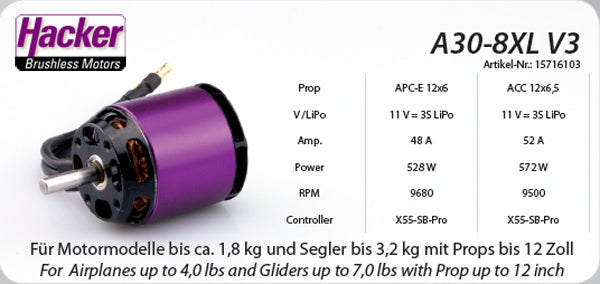

Hacker A30-8XL V3

£84.14
Tax included Shipping calculated at checkout.

Description

Product Description Product Tech Spec Product Videos Product Reviews
The Hacker A30 series motors are designed for Larger Parkflyers, 3D Aerobatic, and Scale models from 24oz to 60oz and utliize 2 to 4 series LiPoly batteries. The 14 pole "outrunner" type design creates MASSIVE TORQUE, therefore larger direct drive props can be used without the need for a gearbox. These motors feature oversized bearings, curved neo-magnets, and high-efficiency stator design. The A30 motors produce the most power at lower current consumption than other popular Outrunner designs. We recommend the Hacker X-Series Brushless Controllers for use with the A30 Series Motors A30-L- for 30 to 45 oz. 3D-Aerobatic and Scale models with 2-3 cell LiPoly batteries

Specifications

Specifications:
Powerange max. 650W (15 sec.)
Idle Current @ 8,4V 2,8A
Resistance (Ri) 0,015 Ohm
RPM/Volt (kv) 1100 U/min-1
Weight 177g
Diameter 37,2 mm
Length 46 mm
Poles 14
recom. Speedcontroler 55A Brushless
recom. Timing 20° - 25°
Shaft Diameter 5 mm
