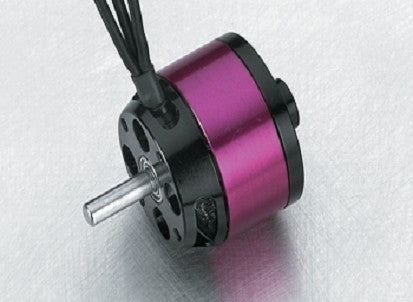

Hacker A30-16M V2

The Hacker A30 series motors are designed for Larger Parkflyers, 3D Aerobatic, and Scale models from 24oz to 60oz and utliize 2 to 4 series LiPoly batteries. The 14 pole "outrunner" type design creates MASSIVE TORQUE, therefore larger direct drive props can be used without the need for a gearbox. These motors feature oversized bearings, curved neo-magnets, and high-efficiency stator design. The A30 motors produce the most power at lower current consumption than other popular Outrunner designs. We recommend the Hacker X-Series Brushless Controllers for use with the A30 Series Motors A30-M - for 25 to 35 oz. Parkflyers and 3D-Aerobatic models with 2-3 cell LiPoly batteries

Powerange max. 350W (15 sec.)
Idle Current @ 8,4V 1,6A
Resistance (Ri) 0,038 Ohm
RPM/Volt (kv) 1060 U/min-1
Weight 104g
Diameter 37,2 mm
Length 36,85 mm
Poles 14
recom. Speedcontroler 40A Brushless
recom. Timing 20° - 25°
Shaft Diameter 5 mm
