Hacker  |  SKU: 97800010  |  Barcode: 4250320200710

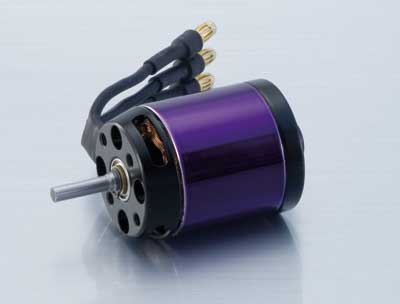

Hacker A20-12 xL EVO

£66.60
Tax included Shipping calculated at checkout.

Description

Product Description Product Tech Spec Product Videos Product Reviews
The A20 motors are small outrunner of our series and provides great efficiency and light weight. They’re ideal for small electric airplanes up to 600g (21oz). Featuring a Slotted 14-pole outrunner design. The Curved Neodym-Magnets offer a perfect gap from the inside of the rotor for optimal power and efficiency Spare shafts, Prop adapter and all screws are included. 3,5mm gold bullet connectors are provided (not with A20-S)els.co

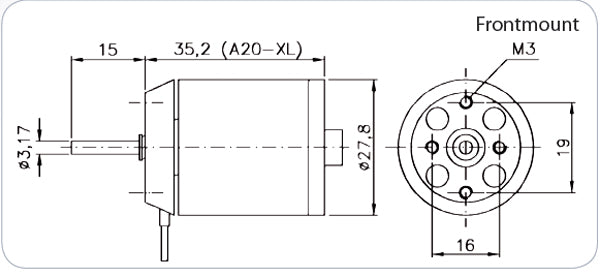

Front mount only.

Specifications

Powerange max. 300W (15 sec.)
Idle Current @ 8,4V 1,2A
Resistance (Ri) 0,075 Ohm
RPM/Volt (kv) 1039 U/min-1
Weight 78g
Diameter 28 mm
Length 40 mm
recom. Speedcontroler 30A-40A Brushless
recom. Timing 20° - 25°
Shaft Diameter 3,17 mm
