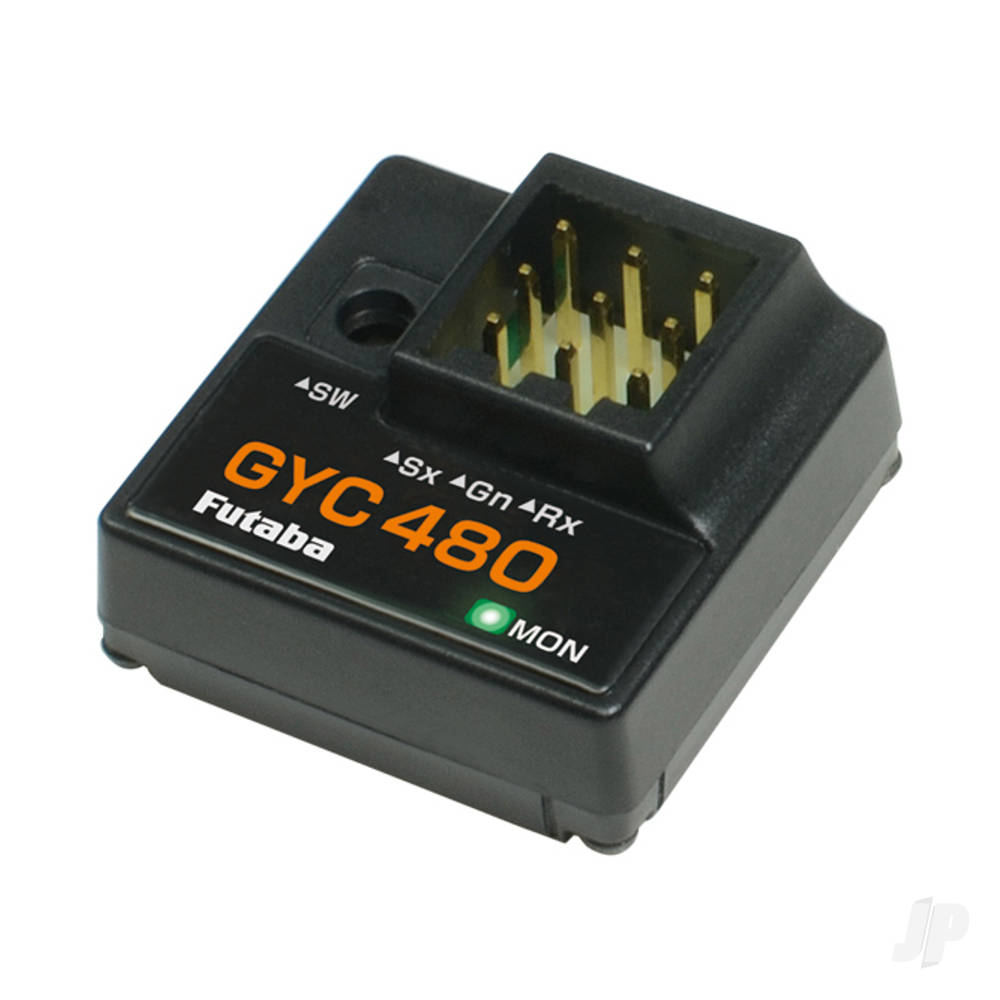

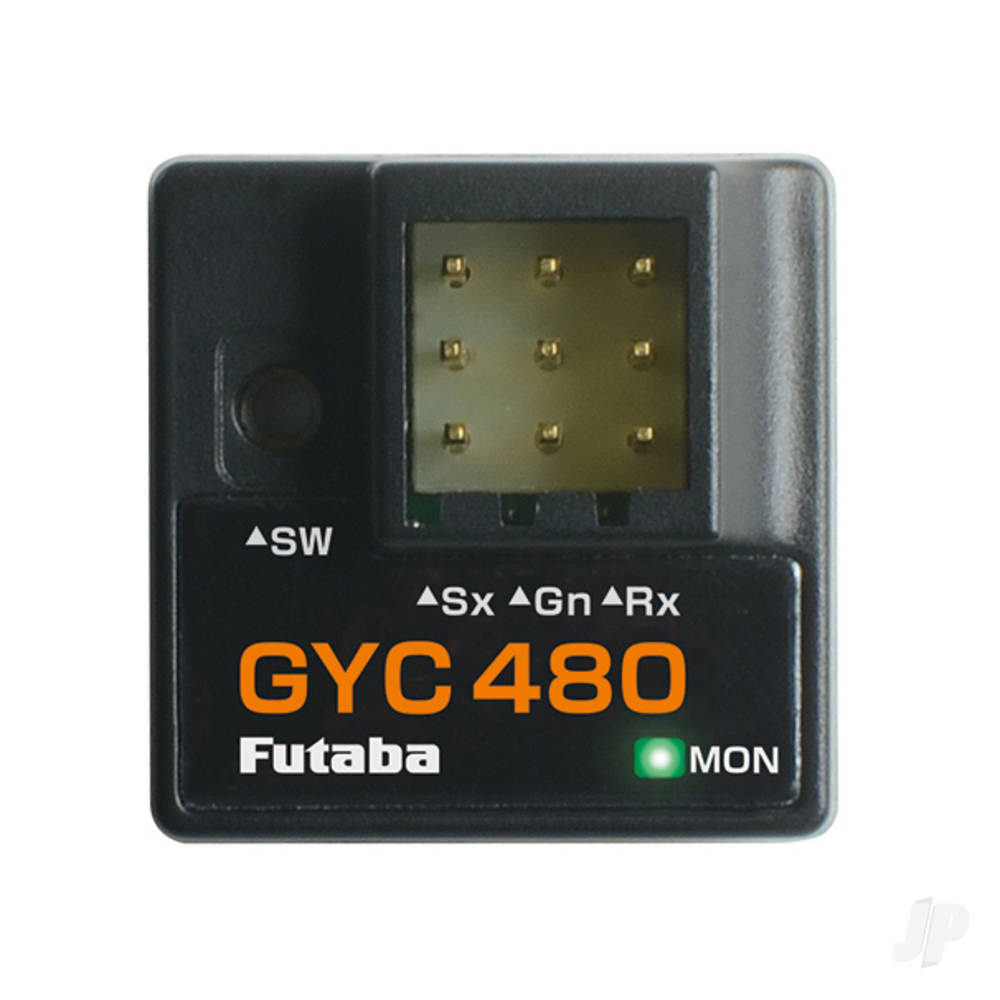

GYC480 All-Purpose Car Gyro

Key Features

• Angular Velocity Detection Method: Vibration Gyro Sensor
• Operating Voltage: DC 4.0V - 8.4V
• Current Consumption: 30mA (when servo is not connected)
• Operating Temperature: -10°C - 45°C
• Functions: Monitor LED, S.BUS/S.BUS2 Compatible

Product Description

Equipped with UR mode for direct operation even through the gyro
The classic grip gyro GYC470 has been redesigned with the addition of UR mode!

Functions:

• Compatible with the F-4G's UR/SR mode servos for high-speed response system.
• Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)
• Settings specifically for RC cars: While suppressing the effects of road surfaces, etc., the synergistic effect with UR mode response provides comfortable straight-line and cornering performance to help improve lap times.
• Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.
• Compatible with S.BUS systems (can also be used with systems other than S.BUS): Can be connected via S.BUS in combination with an S.BUS receiver.
• For digital servos only: For use with Futaba HPS/BLS servos and digital servos only. Analogue servos cannot be used.
• Normal/AVCS mode.
• High-speed response mode.
• Turn-in adjustment.
• Gyro curve adjustment.
• Left and right endpoint adjustment.
• EXP rate adjustment.
• Stick priority mode adjustment.
• Support wireless adjustment function.

Note: Wireless settings are only available for F-4G systems: T10PX, T6PV, R404SBS and R404SBS-E.
A software update is required for T10PX, T6PV, R404SBS, and R404SBS-E to enable wireless settings for GYC480 and GYD560.
