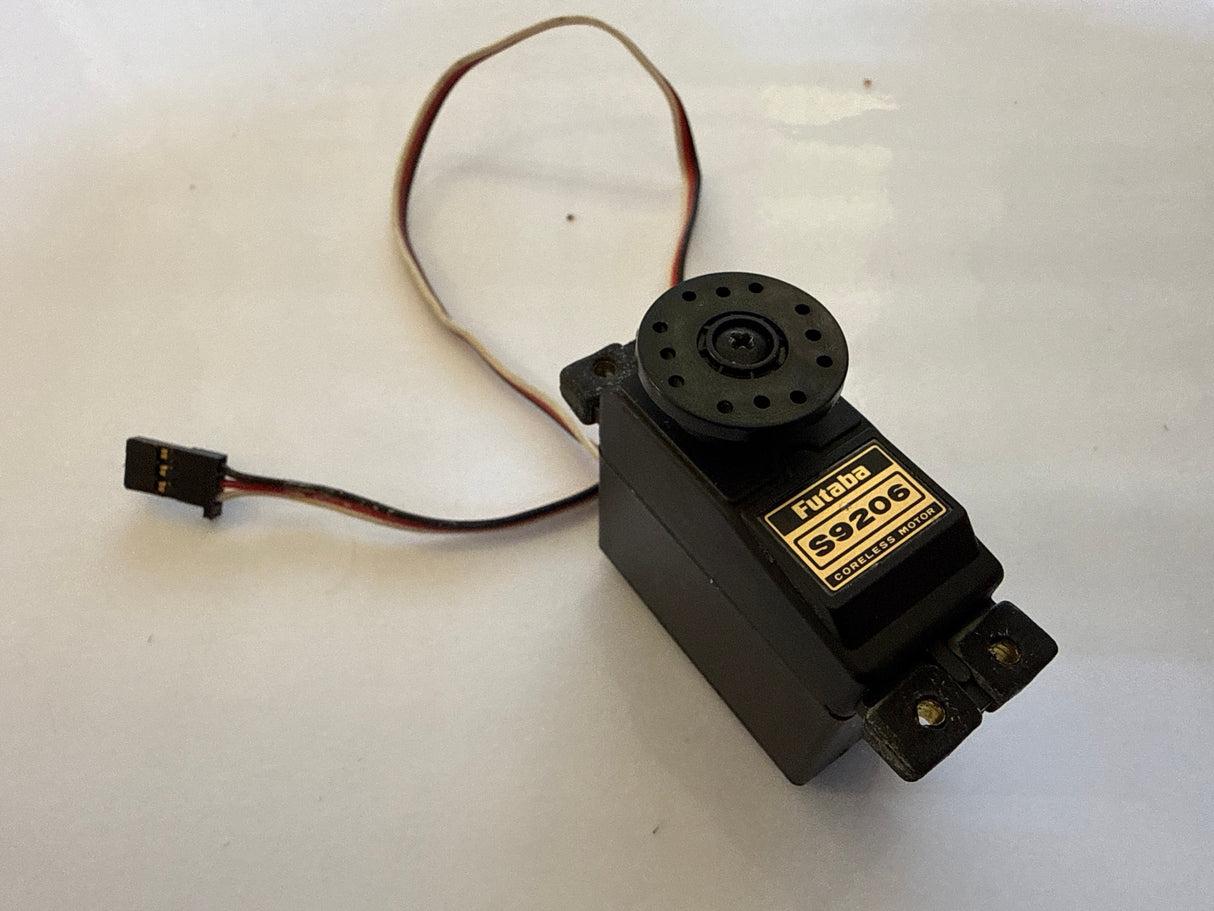

Futaba S9206 Servo - Second Hand

Futaba S9206 Servo - Second Hand

• Futaba S9206 is a high-torque metal gear servo specifically designed for heavy-load applications and frequent usage cycles demanding exceptional durability. The durable metal gearing system effectively handled high mechanical stresses and repetitive loading conditions without performance degradation.
• Particularly suited for large control surfaces, powerful actuator applications, and industrial hobby projects, it provided the necessary strength for demanding movements and sustained operation under challenging conditions. The metal components demonstrated excellent resistance to wear over extended operational periods.

Specifications

• Speed: 0.19 sec/60° at 4.8V
• Torque: 132 oz/in (9.5 kg/cm) at 4.8V
• Dimensions: 1.6" L x 0.8" W x 1.5" H (41mm x 20mm x 38mm)
• Weight: 1.9 oz (53 g)
• Connector: Male "J" type with approx. 5" wire

Coreless Motor: Delivers consistent, low-lag movement for better pilot feedback.Metal Gears: Tough gearing to resist wear when used under higher loads.High Torque: Capable of 132 oz/in at 4.8V for demanding control tasks.Dust and Water Resistant: Designed to reduce damage from debris and light moisture.Ball Bearings: Dual bearings cut friction for smoother, steadier travel.Warranty: Supplied with a one year warranty for manufacturing faults.
