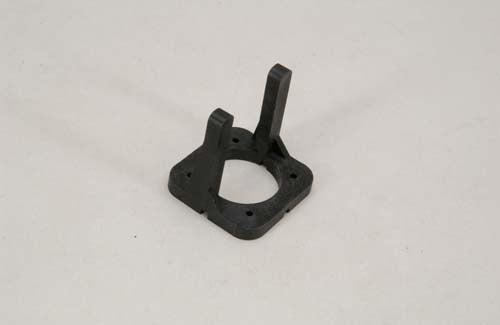

Engine Mount 45-61 (L-LA1503)

Moulded in glass-filled nylon, motor easily fixed by nuts and bolts in pre-drilled holes. The face is grooved for nose leg.

Size: 45/61

Width between beams is 37 mm
Length of beams is 47 mm
Width of each beam is 7 mm
Distance between the centers of the top firewall mounting holes is 34 mm
Distance between the centers of the lower firewall mounting holes is 34 mm
Overall length of the mount is 58 mm
The Diameter of the fire wall bolt holes is 3.6 mm
Fixing bolts are not included
All Measurements are approximate
