Electric Retracts 22-33cc Main Set And Legs(2)

Key Features

90 degree operation.

What's in the Box

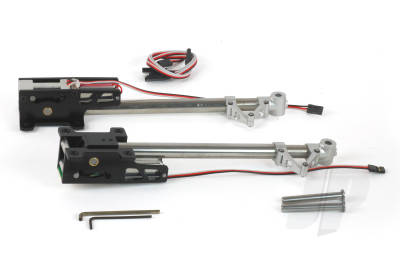

2x 22 - 33cc size 90 degree electric main units.
2x Sprung oleo-style strut.
2x Wheel axles.
1x 3 to 1 extension lead.
1x Allen key set.


Product Description
Self-contained and simple to install the Aircraft Mechanic 22 -33cc size electric main retract units take their power from your receiver battery and, for aircraft with a tricycle undercarriage configuration, work in unison with the Aircraft Mechanic 22 - 33 size nose retract unit (4406355). Beautifully machined, sturdy and slop-free the mechanism rivals some of the best examples on the market at a price that doesn't break the bank. Kiss goodbye to troublesome air and mechanical systems and enjoy solid, dependable performance, time after time.

Specification:
Current draw at idle (mA): 12
Operating current (mA): 500 - 700
Operating voltage (V): 6.0 - 7.4
Rec'd aircraft weight (g): 6500 - 9000
Unit weight (g): 235
Sequence time at 6.0V (sec): 4.0
Manuals & Parts Explosions
Manual
Technical Specifications
Weights & Dimensions
Shipping Weight 0.61kg 1.35lbs
