CRSF ELRS 2.4G 12CH PWM Receiver ExpressLRS RX 2400RX PWM/CRSF For RC FPV Drone Fixed Wing Car Boat Quadcopter - SECOND HAND (Box 47)
£6.50
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
CRSF ELRS 2.4G 12CH PWM Receiver ExpressLRS RX 2400RX PWM/CRSF For RC FPV Drone Fixed Wing Car Boat Quadcopter - SECOND HAND (Box 47) will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
CRSF ELRS 2.4G 12CH PWM Receiver ExpressLRS RX 2400RX PWM/CRSF For RC FPV Drone Fixed Wing Car Boat Quadcopter - SECOND HAND
Description

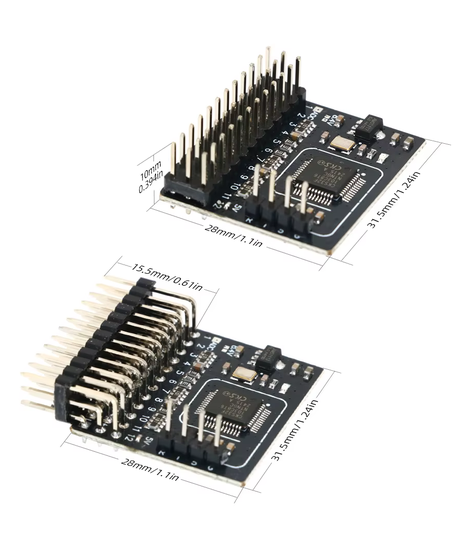

CRSF ELRS 12 channel PWM adapter board, black sheep to PWM CRSF to PWM ELRS to PWM
-Only compatible with CRSF protocol receivers (Black Sheep and ELRS);
-12 PWM outputs (firmware above ELRS 3.0.0 can output 12 proportional channels);
-CRSF signal acquisition LED indication;
-PWM output frequency 50Hz;
-PWM port supports high-voltage servos;
-BEC power supply range 5-12V (determined by jumper);
-Support maximum 6S battery telemetry voltage (RxBt) feedback;
-Size and weight: 32mm X 28mm, 5.2g;
-Can be stacked and combined with our store's ELRS2.4/915 receiver to form a 12 channel receiver;
