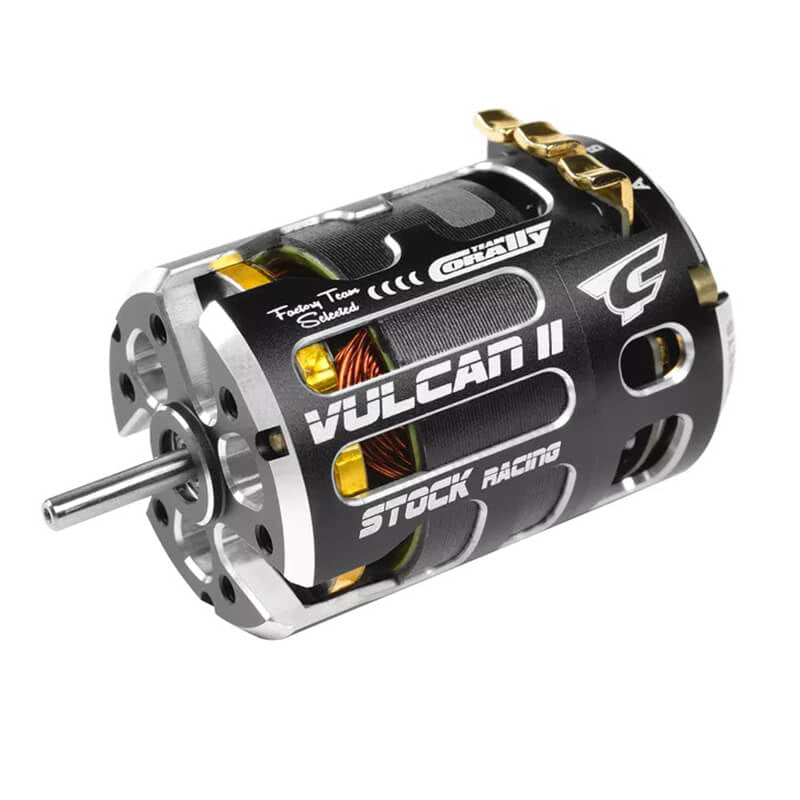

CORALLY VULCAN II STOCK SENS. COMPETITION BRUSHLESS MOTOR 25.5T
CORALLY VULCAN II STOCK SENS. COMPETITION BRUSHLESS MOTOR 25.5T will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
Specifications
Motor - Application: 1/10 Touring, 1/10 Buggy 2WD, 1/10 Pan Car, 1/10 Buggy 4WD, 1/12 Pan Car
Motor - Class: Stock Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR / DMC
Motor - Input Voltage Range (V): 1S - 3S Li-Po
Motor - IO (A): 0,8
Motor - KV (Rpm/V): 1750
Motor - Max. Amps: 26
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,1
Motor - Rotor Size: OD 12.5mm x ID 7.2mm x L 25.2mm - C-16186
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 25,5
Motor - Type: Brushless - Sensored
Motor - Watts: 83
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13
