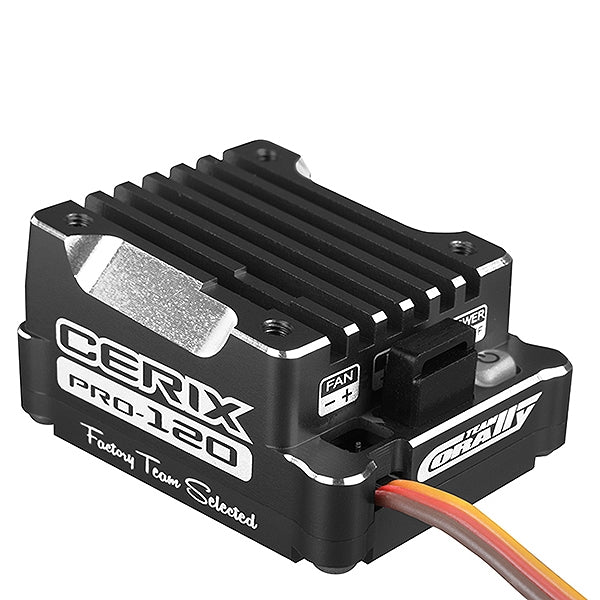

CORALLY CERIX PRO 120 RACINGFACTORYBLACK EDITION 2-3S ESC

The Team Corally CERIX-PRO 120 electronic speed controller for sensored and sensorless motors is being fine tuned for the today's high power brushless motors. Everything can be set-up on these controllers to provide you the best functionality and performance.

The CERIX-PRO 12 is manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimised performance. The CERIX-PRO 120 controller give the 1/10 On-Road and 1/10 Off-Road competition racer what he needs. You will experience the best controllability of your 1/10 Racing Cars, no matter you use it with Spec or Modified motors

Features

• For sensored and sensorless motors
• Manufactured with the highest grade components
• Ultra compact design
• Aluminum case for improved heat dissipation
• Built in power switch
• Advanced boost and turbo timing system for improved acceleration performance
• Enhanced throttle and brake control function.
• 10 programmed profiles can be stored in the ESC
• BEC voltage 6.0V 3A Current
• Powerful TC Link software to test motor timing and advise the best ESC timing setting

Programming Features

General Settings

• Running Mode
• Cut-off Voltage
• Overheat protection
• Motor Rotation
• Reverse Speed

Throttle Control

• Dead Band
• Punch Rate SW- Point
• Punch Rate 1
• Punch Rate 2
• Throttle Curve

Brake Control

• Initial Brake
• Drag Brake
• Brake Strength
• Brake Rate Control
• Brake Curve

Boost Function

• Boost Timing
• Start RPM
• End RPM
• Boost Constraint
• Boost Slope

Turbo Timing

• Turbo Timing
• Activation Method
• Turbo Delay
• Start RPM
• Turbo Slope

Specifications

Application: 1/10 Touring - 1/10 Pan Car - 1/10 Off-Road - Crawlers
Cont. Current (A): 120A
Burst (A): 760A
Nr of Li-xx Cells: 2 - 3S
BEC: 6V 3A
Motor Type: Sensored - Sensorless
Motor Limits:
2S Li-Po
=> 3.5T o 1/10 On-Road
=> 5.5T o 1/10 Off-Road
3S Li-Po
=> 5.5T o 1/10 On-Road
=> 8.5T o 1/10 Off-Road
Resistance: 0.00030 ohm
Dimensions: 40x33x21mm (28mm Fan)
Weight: 52g (59g Fan)
