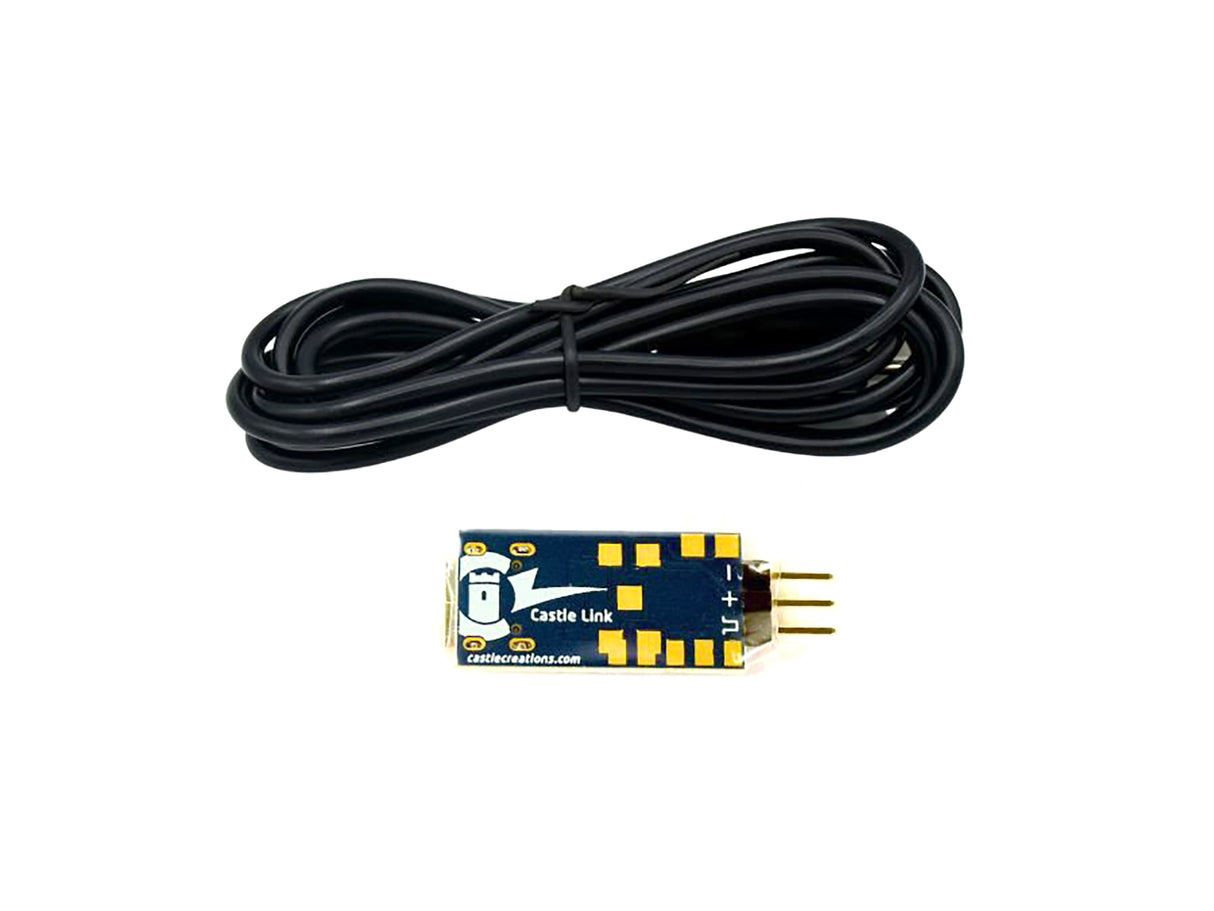

Castle Link PSoC USB Programming Kit

Overview

Castle Link V4 is our new 32-bit based USB adapter.

Note: Compatible with Cobra 8 ESC only and uses the new Castle Link 2 Windows software.

In The Box

• Castle Link V4 adapter
• Type C USB cable
• Castle Decal sheet

Program your Cobra 8 ESC on your Windows PC (10 or higher) with the Castle Link V4 USB programming kit.

• Set up of programmable options with point and click ease
• View your current program settings
• Download and view the ESC's onboard data logs
• Update ESCs with new firmware (if available)

Set-up instructions:

1. Download the Castle Link 2 software from the Castle Creations Downloads area.
2. Run the Castle Link 2 installer and follow on-screen prompts.
3. Plug the Castle Link V4 adapter into the provided Type-C USB cable.
4. Connect the ESC's receiver lead to the Castle Link adapters prongs; the brown wire connects to the pin marked "GND" or "-".
5. Note: Castle Link Classic program is not compatible with the Castle Link V4 adapter and Cobra 8 ESC
