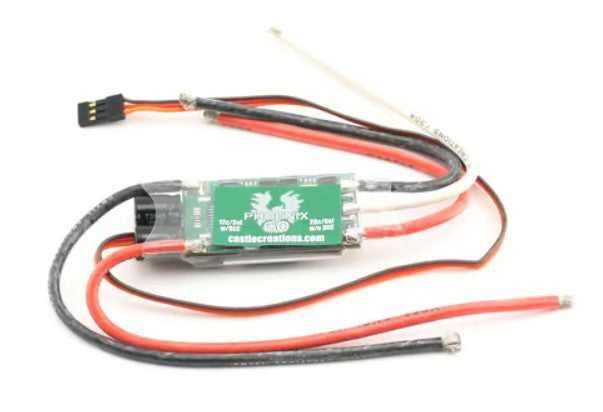

Castle Creations Phoenix-60 Brushless Electronic Speed Control

This is the Phoenix-60 brushless motor controller from Castle Creations! With the ability to handle up to 20 cells, the Phoenix-60 has become a favourite among high performance sailplane, large helicopter, and large glowplane conversion pilots alike. The Phoenix-60 is the controller of choice for Logo 10, and ECO 16 pilots around the world. Large scale airplane pilots love the features and versatility, and especially the smooth throttle response and start-up found on all Phoenix controllers.

With the now familiar programming options in the Phoenix line, the Phoenix-60 can be set for helicopter installations (including those with collective pitch) or airplanes. Competition flyers will benefit from the Phoenix-60's adjustable switching rate to insure optimum efficiency in their models.

Features

• Battery Eliminator Circuit (BEC): eliminates receiver battery
• Safe "Power On"
• Microprocessor Controlled
• Tough surface mount construction
• Audible Arming Signal
• Auto Motor cut-off with reset
• Low torque "Soft Start": protects gear boxes and belt drives from shock
• Smooth reverse exponential throttle
• Self-calibrating endpoints: maximizes usable stick travel
• Auto shut-down when signal is lost
• Simple setup: no complicated switches or wiring

Specifications:
Volts w/BEC: 12.6 max
Volts NO BEC: 25.2 max
Lipo Cells w/BEC: 3s max
Lipo Cells NO BEC: 6S max
NiCad or NiMh Cells w/BEC: 12 max
NiCad or NiMh Cells NO BEC: 20 max
Continuous: 60 amps
Switching Rate: Programmable (11, 22, or 41KHz)
Resistance: 0.0012 ohms
Brake: Programmable
Reversible: Yes - change any two wires
Low Voltage Cut-off: Programmable
Size: 1.05 x 2.35 x 0.45"
Weight(w/wires): 2 oz (58g)
Connector Type: Universal
