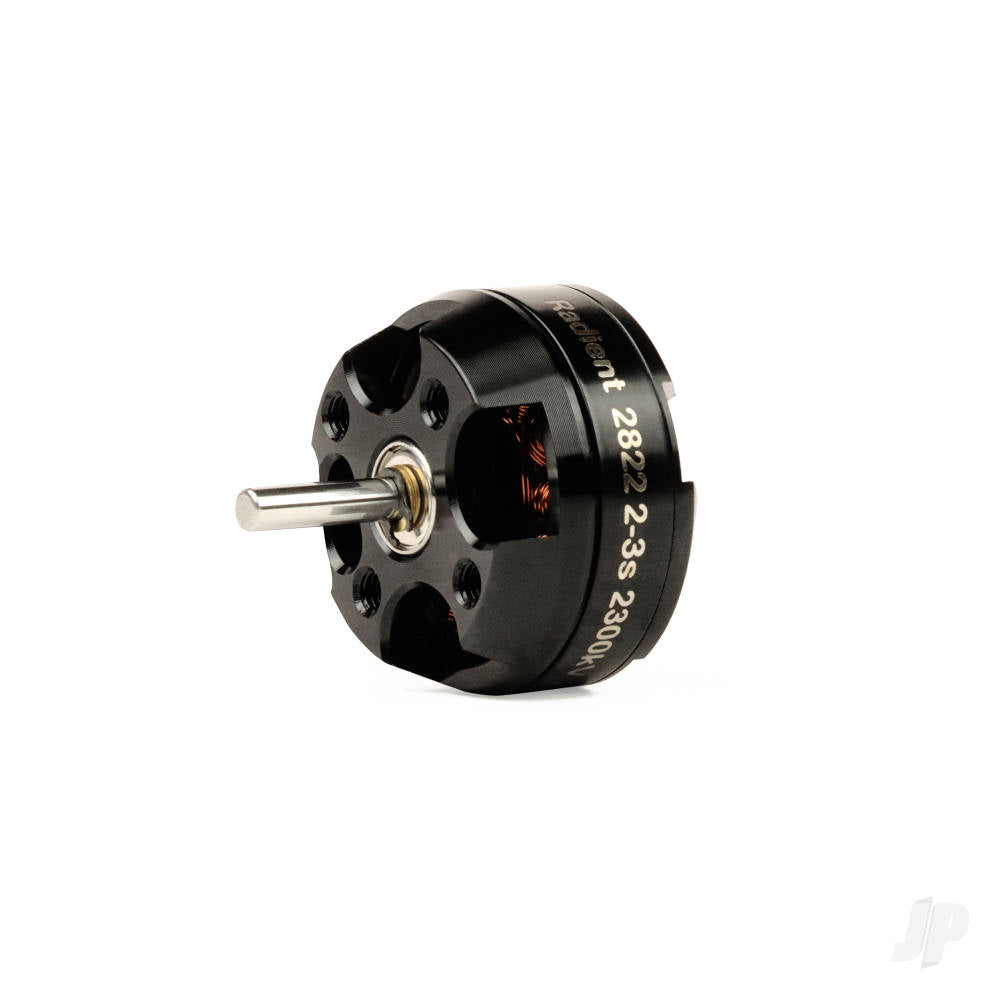

Brushless Motor 2822 2300KV (2-3S)

Key Features

• 14 Pole 12 slot hi-torque rotor.
• CNC-machined 6061-T6 billet heatsink can.
• High purity, maximum efficiency copper windings.
• High RPM ABEC5 oversized bearings.
• Precision balanced rotor offers smooth, reliable performance.
• Super-thin (0.2mm) stator laminations.
• Precision engineered for maximum energy conversion.

What's in the Box

• 1x Radient high-torque brushless motor.
• 1x Shaft prop drive.
• 1x Can prop drive.

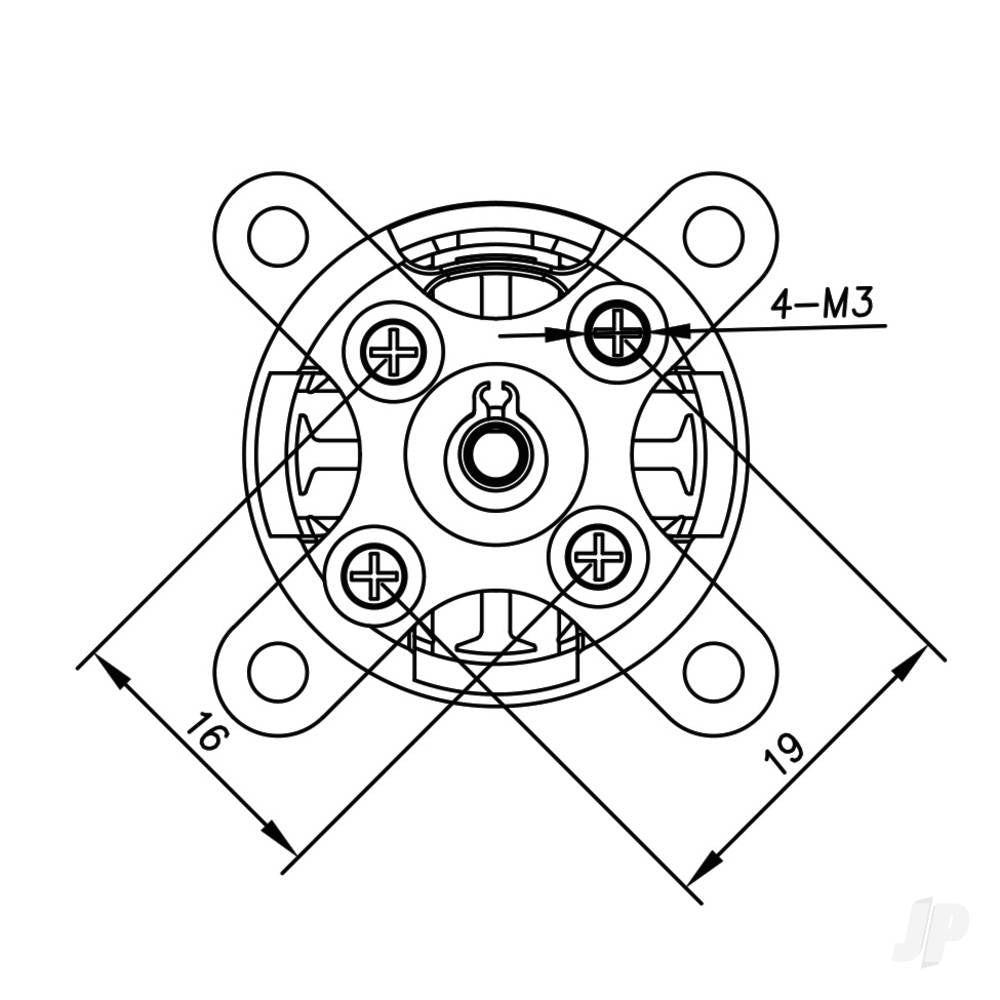

• 1x X-type mounting bracket.
• 4x Short countersunk screws for attaching the bracket to the motor.
• 4x Long cap head screws for can prop drive installation.

Product Description

Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It’s a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Specification:

Watts (W):	180
Rec’d ESC (A):	20
Rec’d LiPo (cells):	2-3S
Shaft Dia. (mm):	3.0
Bullet Connector (mm):	3.5
Weight (g):	30
Prop Size / 2S (in):	6x3 / 7x3.5
Prop Size / 3S (in):	5x4 / 6x3
