Acadamy Plastic Model Kit Minicraft Grumman F6F-3/5 Hellcat — 1:72

Manufacturer and kit history

Academy and Minicraft have had a long relationship with aircraft kits, and this particular boxing is generally encountered as an Academy/Minicraft kit. Kit databases list 2121 as an Academy 1:72 F6F Hellcat, while other references identify the same kit as Minicraft.

This is an older-generation 1:72 kit rather than one of Academy's newer, highly detailed toolings. It has nevertheless remained popular because the Hellcat is an important US Navy aircraft and the kit is inexpensive and relatively straightforward to build.

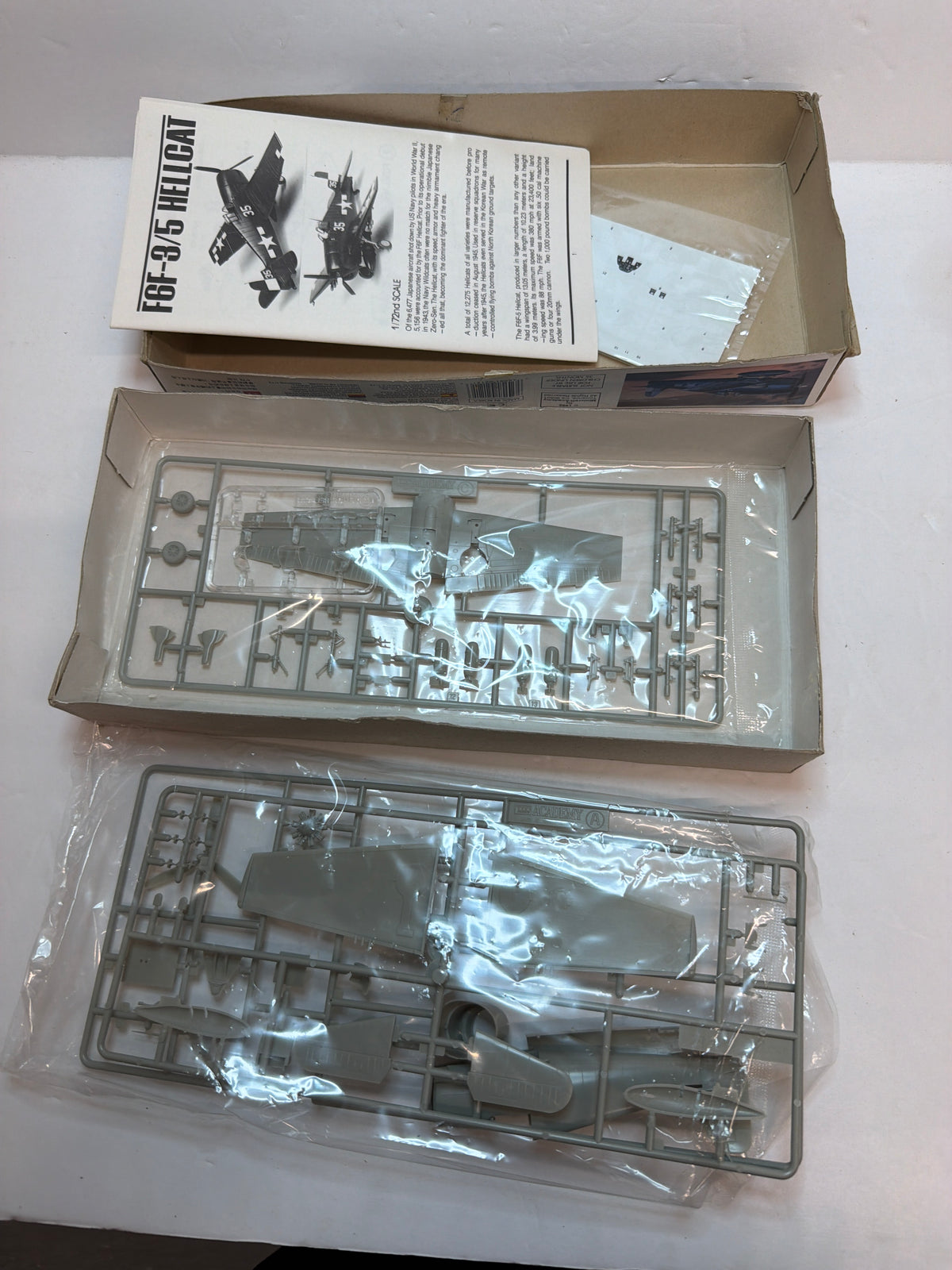

Kit contents

The kit represents the Grumman F6F Hellcat, with parts allowing construction as either an F6F-3 or F6F-5.

The contents include the principal components for:

Fuselage

Cockpit

Pilot's seat

Instrument panel

Pratt & Whitney R-2800 radial engine

Engine cowling

Propeller

Main wings

Horizontal tailplanes

Vertical tail

Main and tail landing gear

Undercarriage doors

External fuel tank

Bomb/underwing stores

Canopy and other clear parts

Decals

Assembly instructions

The kit is moulded in plastic and is intended to be assembled, painted and finished by the modeller.

A current UK example is listed as a 1:72 unassembled plastic kit, with kit number 2121 and Grumman Hellcat as the subject.
The full-size Grumman F6F Hellcat

The Grumman F6F Hellcat was an American carrier-based fighter developed by Grumman Aircraft Engineering Corporation for the United States Navy during the Second World War.

It was developed as a successor to the Grumman F4F Wildcat. Although the Wildcat had performed effectively against Japanese aircraft, Grumman's engineers recognised that a substantially larger and more powerful fighter was required to counter increasingly capable Japanese aircraft, particularly the Mitsubishi A6M Zero.

The result was a large, robust single-engine carrier fighter with excellent range, heavy armament and considerable structural strength.
Development

The Hellcat's development began in the early 1940s.

The prototype, designated XF6F-1, first flew in June 1942. It originally used a Wright R-2600 engine, but Grumman subsequently fitted the much more powerful Pratt & Whitney R-2800 Double Wasp.

The R-2800-powered aircraft became the basis of the production fighter and was designated F6F-3.

The first production F6F-3 flew in October 1942, and the type entered US Navy service in 1943.
F6F-3

The F6F-3 was the first major production version.

It was powered by the Pratt & Whitney R-2800-10 Double Wasp, an 18-cylinder air-cooled radial engine producing approximately 2,000 hp.

The aircraft's design emphasised survivability and reliability. It incorporated substantial armour protection for the pilot and self-sealing fuel tanks.

This gave the Hellcat a reputation for being able to absorb damage and return safely to its carrier.
F6F-5

The later F6F-5 introduced several improvements.

The engine was upgraded to the R-2800-10W, with water injection allowing substantially increased power for take-off and combat.

The F6F-5 also featured a revised windscreen and improved aerodynamic details. Some F6F-5 aircraft were equipped with rocket rails and could carry bombs or other external stores.

The F6F-5 became the most numerous Hellcat variant.
Performance

Representative F6F-5 specifications include:

Crew: 1

Engine: Pratt & Whitney R-2800-10W Double Wasp

Power: approximately 2,000 hp

Maximum speed: approximately 380 mph / 612 km/h

Range: approximately 945 miles / 1,520 km with internal fuel, depending on configuration

Service ceiling: approximately 37,300 ft / 11,370 m

Wingspan: 41 ft 10 in / 12.80 m

Length: 33 ft 7 in / 10.24 m

Armament: normally six .50-calibre Browning machine guns

Additional weapons: bombs and rockets could be carried

The exact performance varied between F6F-3 and F6F-5 aircraft and with the external load carried.
Armament

The standard Hellcat armament consisted of six .50-calibre Browning M2 machine guns, three in each wing.

This gave the aircraft a formidable concentration of forward-firing firepower.

Later Hellcats could also carry:

5-inch rockets

250 lb bombs

500 lb bombs

1,000 lb bombs

External fuel tanks

The combination of heavy guns, armour, self-sealing tanks and a powerful radial engine made the Hellcat particularly effective in the Pacific.
Combat service

The F6F entered combat during 1943, initially operating from US Navy carriers in the Pacific.

It rapidly became the principal US Navy fighter in the Pacific theatre.

The Hellcat was particularly effective against Japanese fighters because it combined good speed and climb performance with strong armament and exceptional durability.

It was also easier to operate from aircraft carriers than some earlier US fighters because of its predictable handling characteristics and robust landing gear.
Battle of the Philippine Sea

The Hellcat played a major role during the Battle of the Philippine Sea in June 1944.

The battle became famous for the destruction of a large proportion of Japanese naval aviation, and the Hellcat was one of the principal US fighter types involved.

The engagement contributed to the famous nickname “Great Marianas Turkey Shoot.”

US Navy Hellcats intercepted large Japanese formations and achieved a substantial number of aerial victories.
Combat record

The Hellcat became one of the most successful carrier fighters of the Second World War.

US Navy and Marine Corps Hellcats were credited with approximately 5,000 Japanese aircraft destroyed, although exact victory totals vary according to historical methodology and whether shared or unconfirmed victories are included.

The aircraft achieved a very high claimed kill-to-loss ratio in air combat.

Its success was not solely due to superior manoeuvrability. The Hellcat's strengths included:

Heavy armament

High power

Strong construction

Good pilot visibility

Long range

Effective armour

Self-sealing fuel tanks

Reliable engine

Excellent carrier suitability

Carrier operations

The Hellcat was designed from the beginning around carrier operations.

Its large folding wings allowed more aircraft to be stored on carriers, while the robust landing gear and arrestor hook were designed to withstand repeated carrier landings.

The aircraft served aboard numerous Essex-class and other US Navy carriers.

It became one of the defining aircraft of the US Pacific carrier offensive.
Night fighter

A specialised F6F-5N version was developed for night operations.

It incorporated an airborne interception radar installation and additional equipment for night fighting.

This allowed Hellcats to operate against Japanese aircraft after dark and provided the US Navy with an effective carrier-based night fighter.
Royal Navy service

The Hellcat was also supplied to Britain under Lend-Lease.

Royal Navy aircraft were initially known as the Grumman Gannet in some documentation before the British designation system was standardised around the name Hellcat.

British Hellcats saw combat with the Fleet Air Arm, including operations in the Indian Ocean and Pacific theatres.

They were also used in strikes against Japanese positions and shipping.
Production

The Hellcat was produced in very large numbers.

Approximately 12,275 F6F Hellcats were constructed between 1942 and 1945.

The overwhelming majority were F6F-3 and F6F-5 aircraft.

This makes the Hellcat one of the most numerous American naval fighters of the Second World War.
Post-war career

The Hellcat remained in service for several years after 1945.

As jet fighters became dominant, the F6F was increasingly relegated to secondary roles such as:

Training

Target towing

Liaison

Reserve service

Research

Unmanned target aircraft

The robust airframe nevertheless allowed some Hellcats to remain operational considerably longer than might otherwise have been expected.
Historical significance

The F6F Hellcat is one of the most important American carrier fighters of the Second World War.

Its significance lies not simply in its victory record but in its role as the principal fighter that enabled the US Navy to establish and maintain air superiority across the Pacific.

The Hellcat was specifically designed around lessons learned from the Wildcat and early encounters with Japanese fighters. It sacrificed some of the Wildcat's compactness and manoeuvrability for power, range, survivability and heavy armament.

The result was an aircraft exceptionally well suited to the carrier war of 1943–45.
