Hacker A40-10S V4G kv1600 + 6 7:1 PG

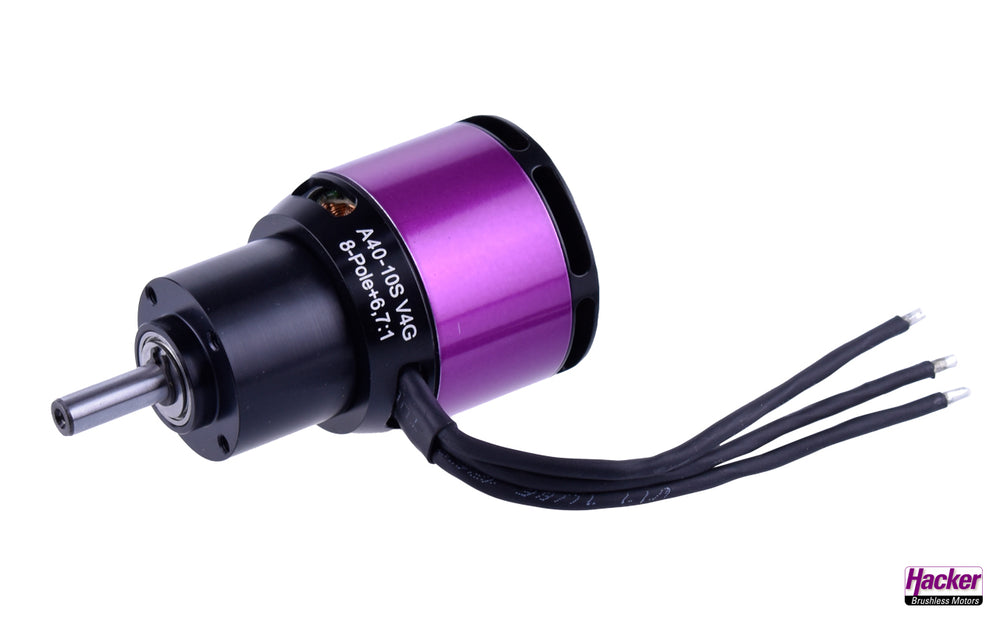

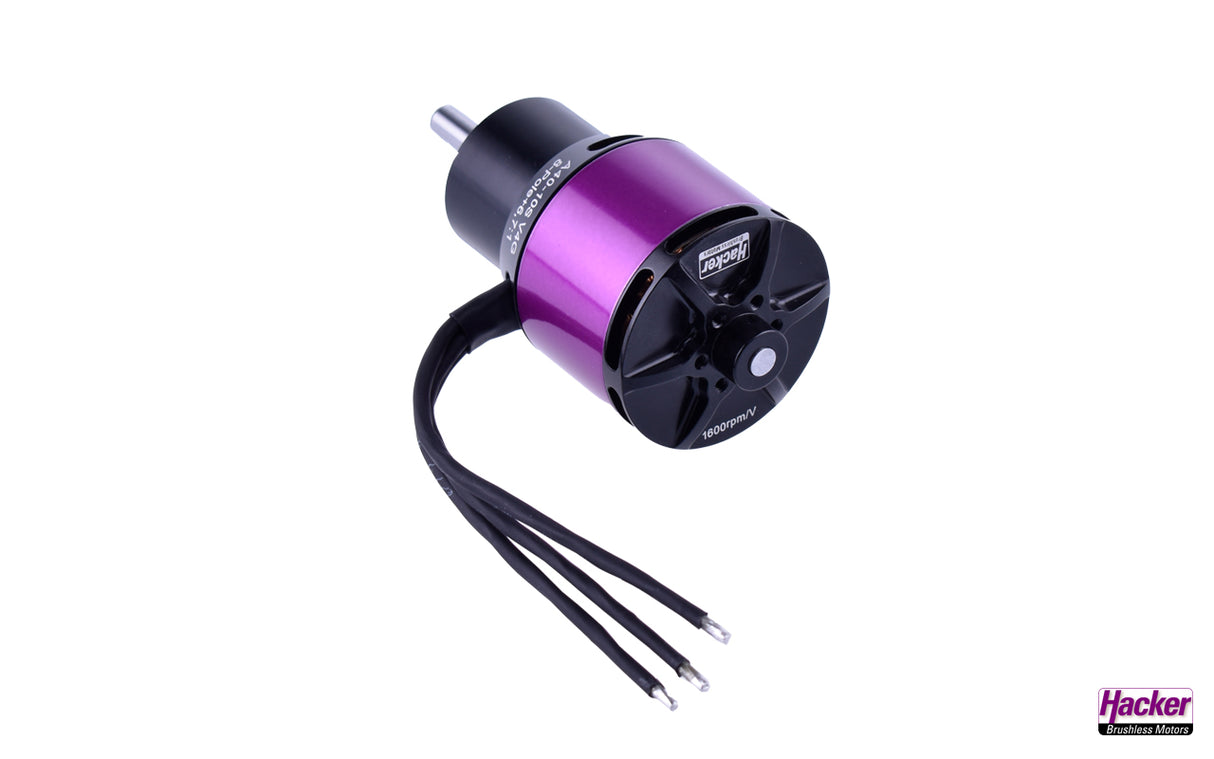

This A40 gear drive is equipped with the 8-pole version of the A40-S motor, which has proven itself thousands of times over. The high-torque, high-speed external rotor in combination with the efficient 6.7:1 planetary gearbox has been specially developed for larger electric gliders up to approx. 8 kg take-off weight. Thanks to the perfect coordination of motor and gearbox, this power pack can drive propellers up to 23 inches efficiently and powerfully. It is a very robust and reliable system that works reliably even under extreme conditions and high loads.
This weight-optimised high-end motor with a weight of only 247g fits perfectly in gliders up to 8 kg.
| Propeller | RFM 20x13 | RFM 23x12 | Falcon 22x12 | Falcon 23x13 | Falcon 21x13 |
| LiPo | 6S | 6S | 6S | 6S | 6S |
| Voltage [V] | 22,5 | 22,5 | 22,5 | 22,5 | 22,5 |
| Current [A] | 51,5 | 56,9 | 43,8 | 57,8 | 44,9 |
| Power [W] | 1159 | 1281 | 986 | 1303 | 1011 |
| RPM | 5102 | 5052 | 5147 | 5055 | 5145 |
| Controller [A] | 70-90 | 70-90 | 70-90 | 70-90 | 70-90 |
| Timing [°] | 15-20 | 15-20 | 15-20 | 15-20 | 15-20 |
