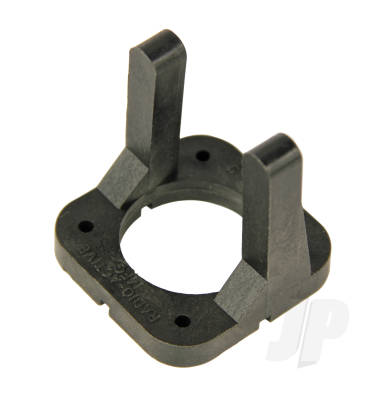

JP 30-45 Nylon Engine Mount

Moulded in glass-filled nylon, motor easily fixed by nuts and bolts when you pre-drill the holes. The face is grooved for nose leg.
Size: 30/45

Width between beams is 34 mm
Length of beams is 45 mm
Width of each beam is 9 mm
Distance between the centers of the top firewall mounting holes is 35 mm
Distance between the centers of the lower firewall mounting holes is 35 mm
Overall length of the mount is 52.5 mm
The Diameter of the fire wall bolt holes is 3.6 mm
Fixing bolts are not included
All Measurements are approximate
