14T Tank Wagon Class A Ronuk 38

PROTOTYPE INFORMATION

The Air Ministry tank wagons were based on a Shell & BP design of 1938 which was a refinement of the RCH 1927 design with a total build of more than 3,000 wagons built.

These tank wagons therefore utilised many RCH components including brake gear, buffers and axleboxes on a standard chassis of 17’-6” with a 10’-0” wheelbase. The tanks were 7 foot 2&3/8inches diameter saddle mounted and all designated Class A for carriage of petrol and aviation spirit.

During the 1950’s many class A tank wagons were converted to class B by the addition of steam heating coils inserted into one end of the wagon and bottom outlet. By the end of the decade most were of the later class B type

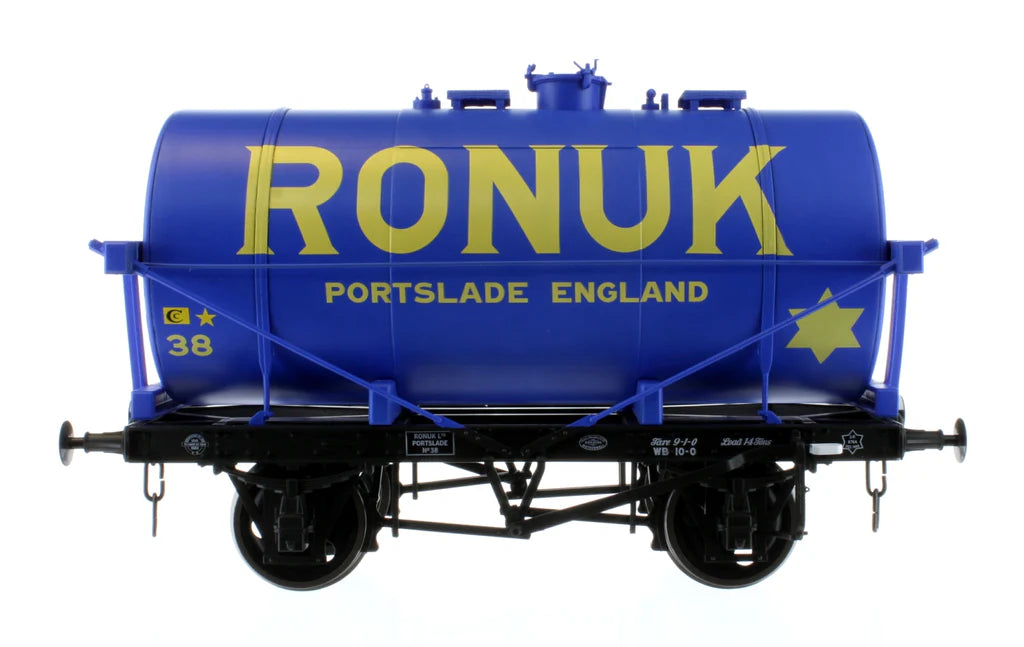

THE MODEL

The chassis is die-cast and includes a fully sprung suspension system (not available on other RTR models).

Three hole disc wheels are diecast with correct shape on both sides (so providing commendably thin holes) and fitted to metal blackened tyres.

Buffer heads and coupling hook are metal and sprung.

Short and long platforms with ladders are specific to the model portrayed and the Class B versions have the heating coil end detail and bottom outlet pipe of the tank together with valve on the top.

All models are authentically decorated including full chassis descriptions
