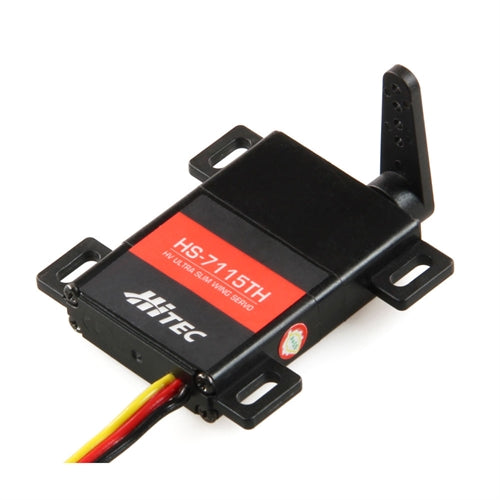

Hitec HS7115TH Digital Wing Servo - 8mm Thickness

New HS-7115TH Slim Wing servo is rich engineering in a thin design! The HS-7115TH will fulfill every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts.

Features:

Programmable digital amplifier with MOSFET drive
Durable titanium alloy metal gears with dual ball bearings
Ultra slim sized

Performance Specifications

Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 44 ~ 54
Maximum Torque Range kg. / cm. 3.2 ~ 3.9
Current Draw at Idle 10 mA
No Load Operating Current Draw 130 mA
Stall Current Draw 1,500 mA
Dead Band Width 1 µs

Dimensions (Inches) 1.02 x 0.31 x 1.50
Dimensions (Metric) 26.0 x 8.0 x 38.0
Weight (Ounces) 0.71
Weight (Gram) 20.0
Circuit Type G2 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Feather 15
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 40
