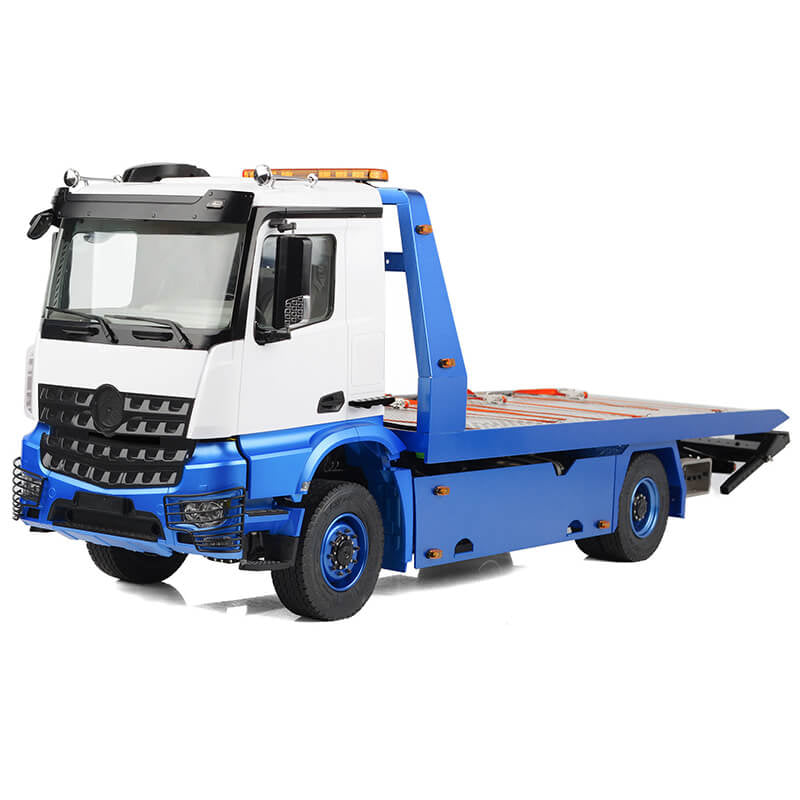

RC4WD 1/14 4X4 WRECKER FLAT BED HYDRAULIC TOW TRUCK

Features

• Hard Plastic European Style Front Cab
• Full Metal 3 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Simulation Air Suspension
• Scale Wheels and Tires (Wheels: Stainless Steel / Billet Aluminum)
• Remote Lockable Front and Rear Axle (Locking Differential)
• Full Metal Front and Rear Axle Housing
• Steel Scale Drive Shaft
• Front Cab Latch
• Molded Fuel Tank
• Rear Light Guard (Protects Against Rocks)
• Scale Light Buckets (Fits 3-5mm LED)
• Flatbed Winch
• Rear Underlift
• Recommended Payload: 10kg / 22lbs
• Rear Underlift Payload: 3.00kg / 6.61lbs
• LiPo Cutoff
• Fully Painted
• Brushed Driven Motor
• 930KV Brushless Motor-Driven Micro Hydraulic Pump
• Hydraulic Oil Type: 32# / 46#
• Working Oil Pressure: 3MPa
• Bed Maximum Lifting Angle: 14°
• First Gear 1/113, Second Gear 1/86.4, Third Gear 1/62.1 (Transmission)
• 18 Channel 2.4Ghz Radio
• 4 Pack 2in x 15in Orange Ratchet Strap with J Hooks

Specifications

Length: 728mm / 28.6in
Width: 218.5mm / 8.60in
Height: 277.5mm / 10.9in
Weight: 6.5kg / 14.3lbs

What's Included

• 1x 1/14 4x4 Wrecker Flat Bed Hydraulic Tow Truck

Required To Complete

• 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
• Compatible Battery Charger
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

• Do not operate the lift past its fully-extended height and do not operate at its highest limit for longer than 2 seconds as these positions can damage the hydraulic system.
• Do not use more than 3S battery. (11.1 volt(s))
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• Use good quality hex drivers to avoid stripping screw heads.
• This product is for experienced R/C users. Not recommended for beginners.
• The axle hubs can be removed, but may require additional force.
