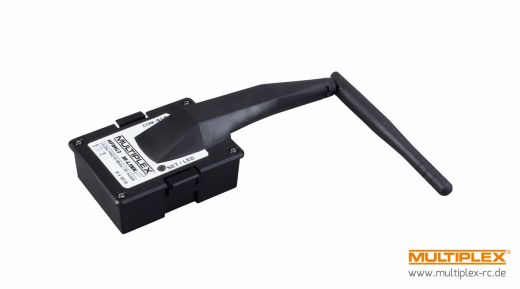

Multiplex HF-Modul HFMG3 M-LINK 2.4 GH z Multiplex 45616

RF Module HFMG3 M-LINK 2.4 GHz z Multiplex 45616 For mx-22, mx-22s, mx-24, mx-24s, and RF module-compatible JR transmitters With these upgrade modules, the proven and successful MULTIPLEX 2.4 GHz FHSS M-LINK technology is now also available to Graupner/JR pilots. Many Graupner/JR transmitters can be converted to MULTIPLEX M-LINK. This not only makes the entire range of M-LINK receivers and the MSB telemetry system available, but also allows the mc series transmitters, like the MULTIPLEX PROFI series transmitters, to be expanded by four channels. Naturally, all three RF modules offer the proven options of 14 ms (Fast Response) and 21 ms servo cycle times, as well as between the standard and "French" 2.4 GHz bands. The plug-in module with housing and integrated 2.4 GHz antenna solution is plugged into the rear of the transmitter from the outside in place of the previous xx MHz RF module. The LED button for status display, binding, and range testing is directly accessible on the module. If necessary, switching between xx MHz and 2.4 GHz M-LINK technology is possible at any time in seconds. Acoustic warning of low receiver battery - The modules are equipped with a buzzer that, when used with a telemetry-capable M-LINK receiver, warns of low receiver battery levels. Easy conversion - Simply plug and screw, no soldering required. Significantly longer operating time - Due to the lower power consumption of the RF modules. Updateable - The HFMG modules can be updated using the PC program "MULTIPLEX Launcher" (free at www.multiplex-rc.de), making them future-proof. The USB PC cable, UNI (# 8 5149) is required. Telemetry capable - All retrofit modules are equipped with a connection for the Telemetry Display (# 4 5182). This allows up to 16 telemetry values from your model to be displayed directly on the transmitter when using telemetry-capable M-LINK receivers and MSB-compatible sensors. Further information Technical specifications Frequency range: 2.4000 GHz ? 2.4835 GHz Transmission type: 2.4 GHz FHSS M-LINK system (Frequency Hopping Spread Spectrum) Transmission power: 100 mW EIRP Current consumption: approx. 50 mA Temperature range: -15°C - +55°C Accessories Item no.: MPX75810 13/16-channel expansion for PROFmc 3000/Multiplex 75810 Item no.: MPX45182 Telemetry Display Multiplex 45182
