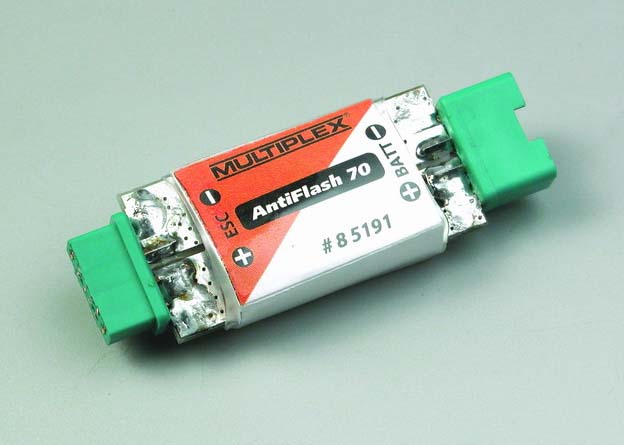

AntiFlash 70 (M6)

When the flight battery of an electric-powered model is connected to the speed controller, arcing (sparking) occurs, and the MULTIPLEX AntiFlash 70 is designed to prevent this. This is an important advance, since sparks occur even at low operating voltages (~ 10 V) when the battery is connected, and the arcing causes cumulative damage to the connector contacts. After a while the electrical connection becomes less reliable due to increased transfer resistance, voltage drop, heating effects and mechanical faults. The AntiFlash 70 is simply connected to the speed controller, and the battery plugged into the unit.
\n
\nSpecification:
\nVoltage range: 7,5 - 40 V
\nCell count: 3 - 10S LiPo / 10 - 26 NiXX cells
\nMax. continuous current: 70 A (35 A with M6 connector system)
\nDimensions (L x W x H)*: approx. 43 x 22 x 12 mm
\nWeight*: approx. 12 g
\n*) excl. connectors and cables
