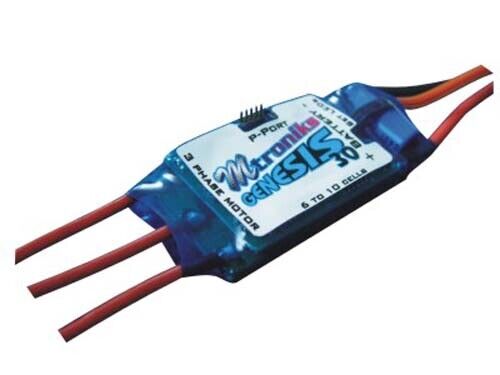

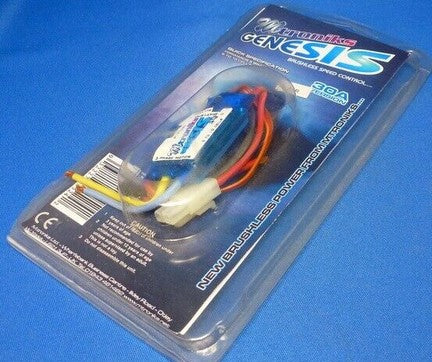

Mtroniks Genesis 30A Brushless ESC Speed Controller for RC Aircraft

The Genesis Compact 30 Brushless speed control has been designed to fit straight into any RC model aircraft with ease. The set up offers the user an array of programmable features from battery type and cut off to prop acceleration rates and brake on/off! The Genesis Compact Brushless Speed Controllers designed for use in RC aircraft are all sealed in shrinkwrap to keep the weight down and come fitted with a Tamiya style battery connector and flying leads for connection to the motor!



The Genesis Compact range benefits from 5 years worth of research and design work carried out by the Mtroniks design team with help from a few well known RC aviators and product reviewers from International RC aircraft magazines. What this has resulted in is a Sensorless Brushless Speed Control that works and feels just the same as a Brushed Speed Control, giving you absolute control over the throttle with very smooth acceleration and the added bonus of longer run times when compared to Brushed Speed Control equivalents!



Features:

Forwards and Brake

30Amp motor limit

Smooth controllable acceleration

Li-Po battery support for 2 to 4 cells

6 to 10 cells NiCAD or NiMH

Automatic sensing of number of cells when using NiCad or NiMH batteries

Current limit cut-off

3A Hyper BEC

3 Internal Schottky diodes

Auto cut-off computer

Brake On/Off

Dimensions: 40 x 30 x 5mm

Weight: 35g



The Genesis Compact30 speed control is capable of an average discharge rate of 27A and a peak discharge rate of 30A making it a very capable and attractive option at such a low price!
