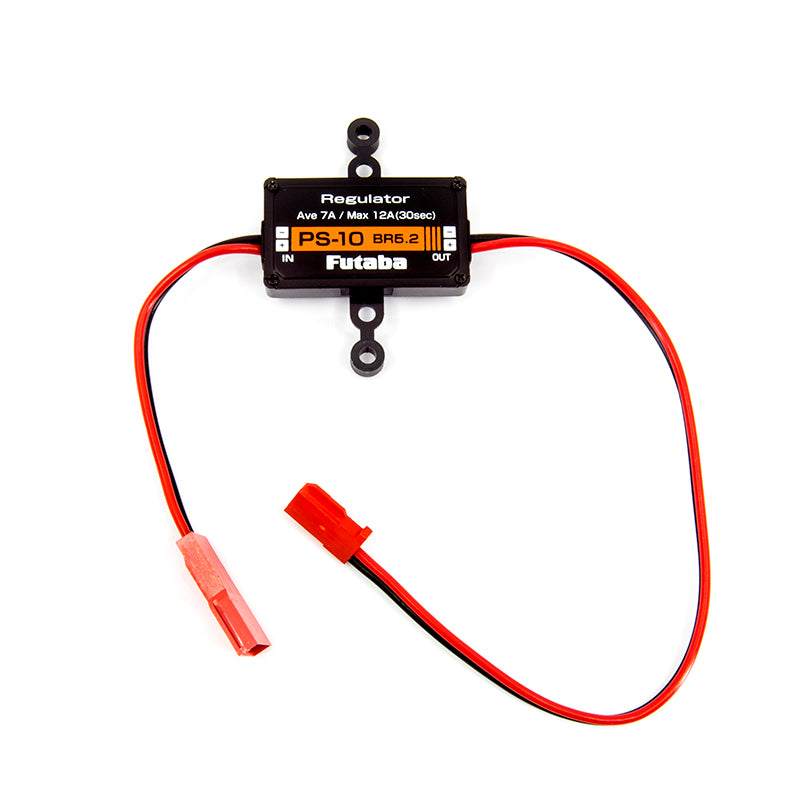

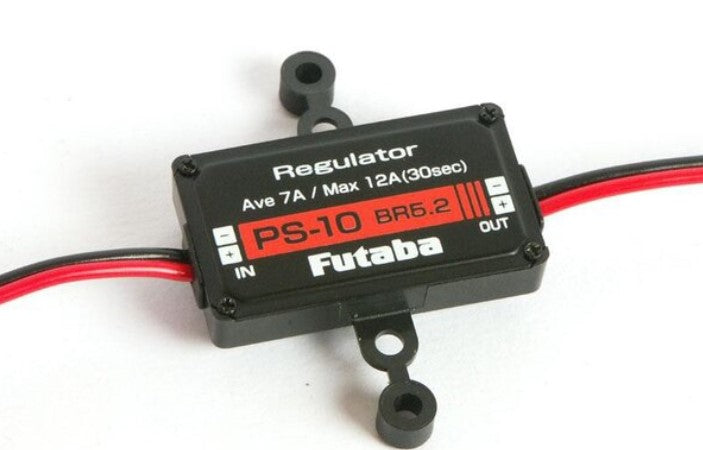

Futaba REGULATOR 5.2V PS-10BR - For battery/Receiver

5.2V 10-Amp Voltage Regulator For 2.4 GHz System

MAIN APPLICATION:
Power Supply for 4.8V rating receiver and servos

INPUT VOLTAGE RANGE:
6.0 V ~ 12.6 V

OUTPUT VOLTAGE:
5.2 V

RATED OUTPUT CURRENT:
7 A
Maximum: 12 A / 30 Seconds

Perfect for those wanting to take advantage of the light weight and high capacities of the latest Li-Po and Li-Fe battery packs, but running 4.8-6.0v receivers and servos, the new PS-10 voltage regulator from Futaba converts input voltages from 6.0v to 12.6v to a constant 5.2v output to the receiver/servos, with a maximum continuous current of 7.0Amps and peak of 13.0Amps. A bonus is the increase in receiver/servo reliability due to the non varying nature of the output voltage, eliminating the high initial peak voltage of a freshly charged battery.

DIMENSIONS:
35.6 mm x 20.5 mm x 10 mm
WEIGHT:
14.9 g
