OS  |  SKU: M-OS51011200  |  Barcode: 4013389466875

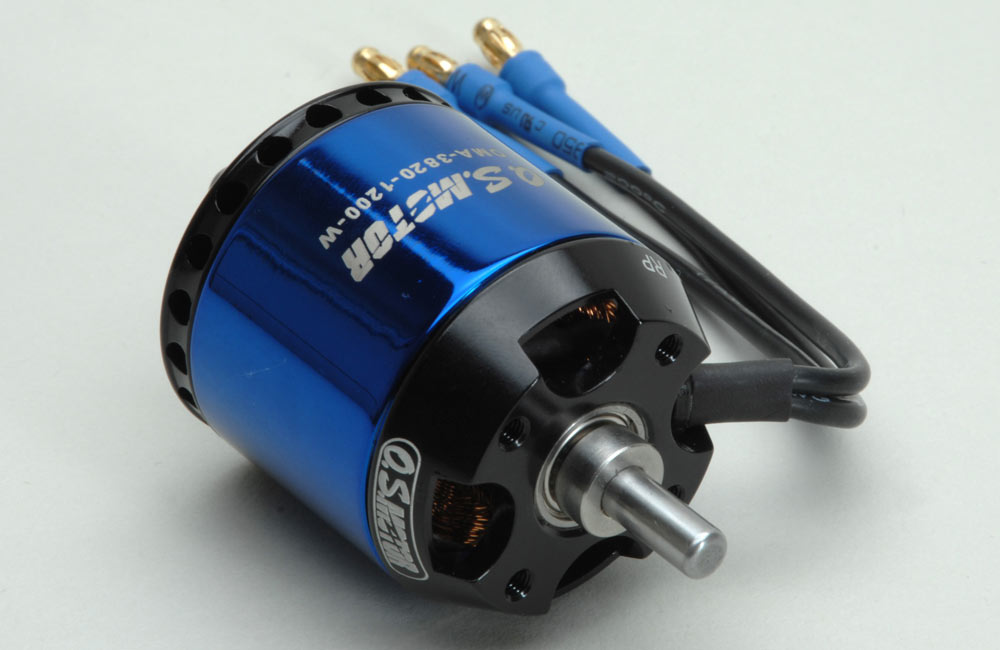

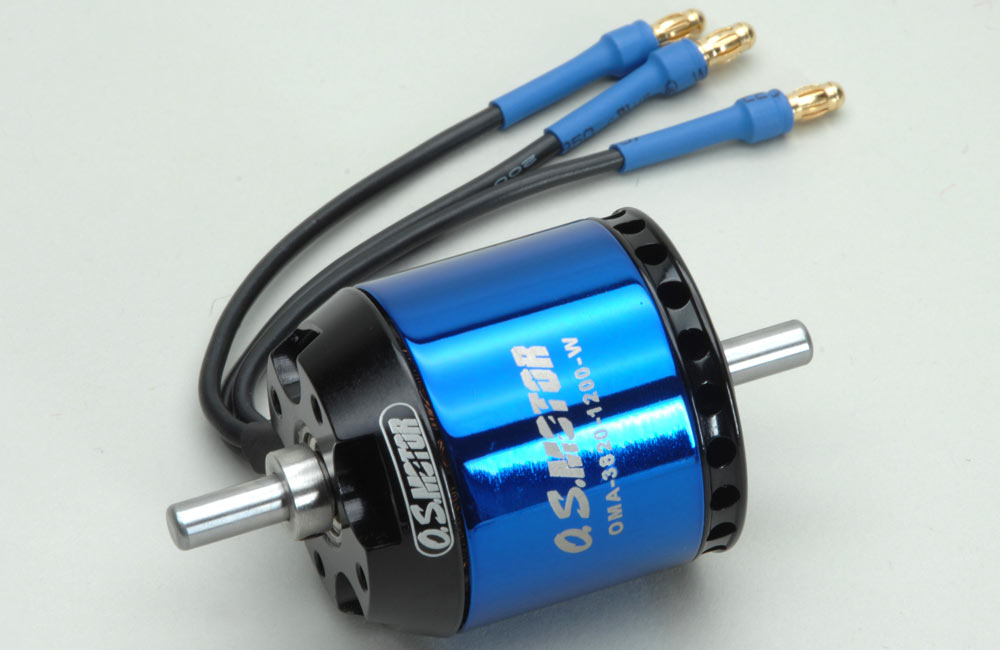

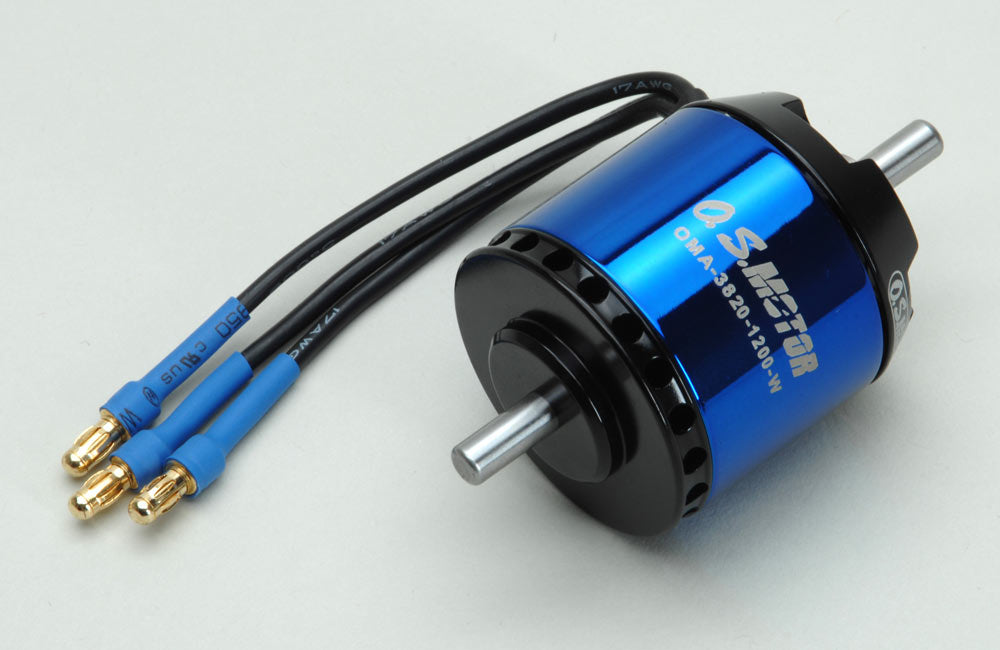

O.S. OMA-3820-1200W Brushless Motor (6628)

£80.08 £89.99
Tax included Shipping calculated at checkout.

Description

Each motor is balanced during manufacture for optimum running and reliability.

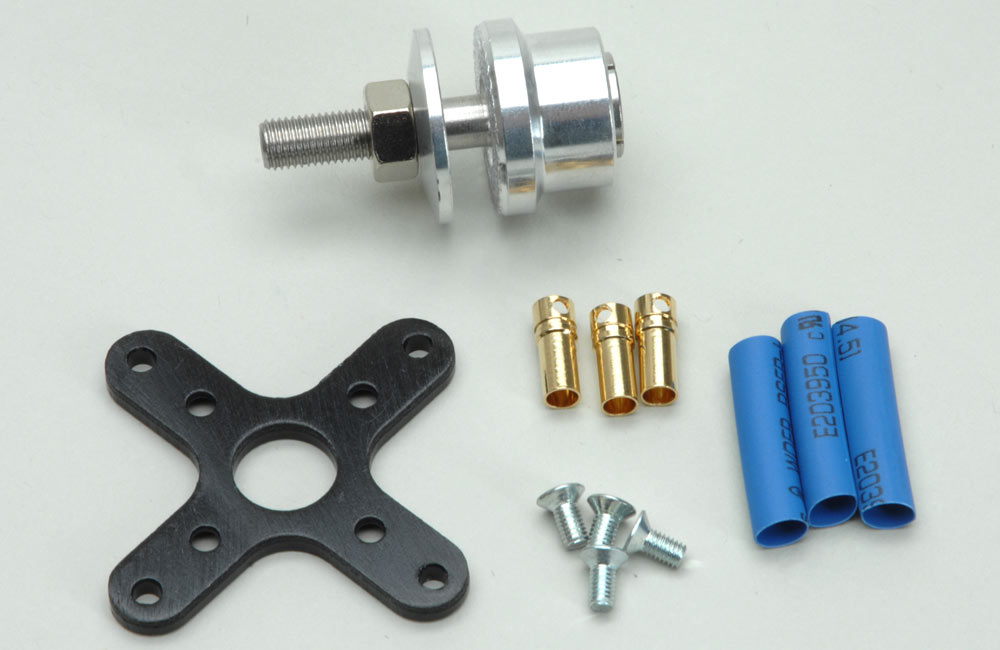

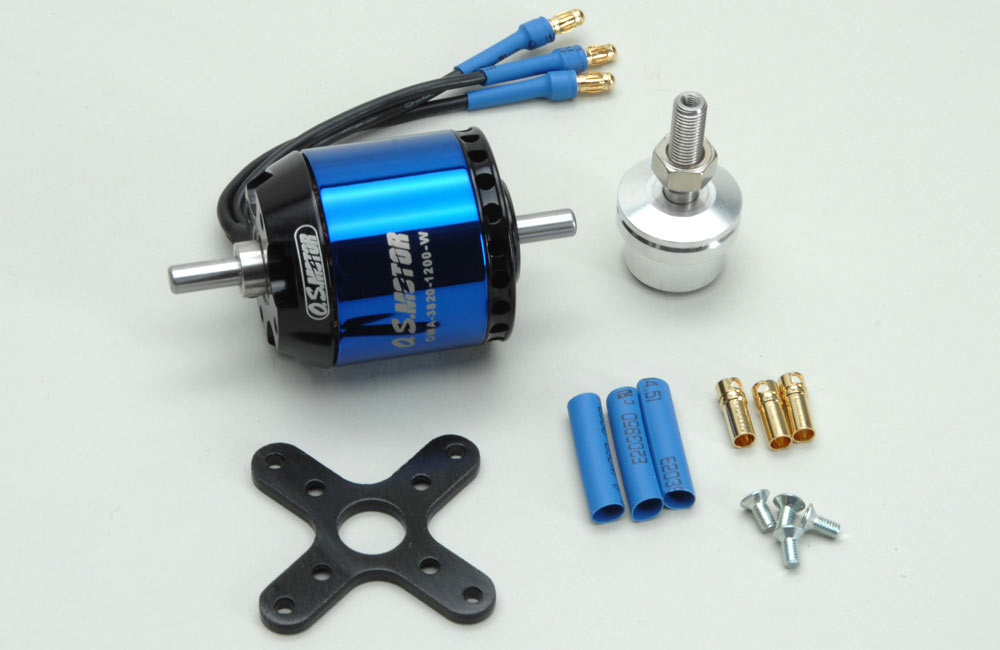

Supplied with a rear mount and 3.5mm gold connectors as standard accessories.


Recommended ESC - OS OCA-150 for up to 55A at full throttle or OCA-170HV for higher current
Recommended Battery - Intellect 4 or 5 cell 4000/5400mAh 25C

Specifications

Connectors: 3.5mm Gold (Inc.)

Max Efficiency: 85%
Poles: 14

Length: 43.5mm
Weight: 160g

Wire Size: 17 AWG
Max Burst Discharge: 75A (5 Seconds)

Max Continuous Discharge: 40A
Diameter: 37.5mm

KV RPM: 1200
Turns: 10

Voltage: 11.1v
No Load Current: 1.9A / 10V

Shaft dia: 5mm
Shaft Length: 11.5mm
